ESD5Z7.0T1G Information
ESD5Z7.0T1G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESD5Z7.0T1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80Y6752
|
Newark | Tvs, 240W, Uni, Sod-523, Product Range:Esd5Z Series, Tvs Polarity:Unidirectional, Reverse Stand-Off Voltage Vrwm:7V, Clamping Voltage Vc Max:22.7V, Diode Case Style:Sod-523, No. Of Pins:2Pins, Breakdown Voltage Min:7.5V, Breakdown Rohs Compliant: Yes |Onsemi ESD5Z7.0T1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 49725 |
|
$0.0380 / $0.1160 | Buy Now |
|
DISTI #
41K9786
|
Newark | Tvs Diode, 240W, 7V, Sod-523, Full Reel, Clamping Voltage Vc Max:13.5V, Diode Case Style:Sod-523, No. Of Pins:2Pins, Operating Voltage:-, Power Dissipation Pd:500Mw, Product Range:Esd5Z Series, Clamping Voltage Max:22.7V Rohs Compliant: Yes |Onsemi ESD5Z7.0T1G RoHS: Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0240 | Buy Now |
|
DISTI #
ESD5Z7.0T1G
|
Avnet Americas | - Tape and Reel (Alt: ESD5Z7.0T1G) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 27000 |
|
$0.0164 / $0.0177 | Buy Now |
|
DISTI #
70339622
|
RS | ESD5Z7.0T1G, UNI-DIRECTIONAL TVS DIODE, 200W, 2-PIN SDO-523 Min Qty: 100 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0730 / $0.0860 | RFQ |
|
|
Rochester Electronics | Trans Voltage Suppressor Diode, 200W, 7V, Unidirectional RoHS: Compliant Status: Active Min Qty: 1 | 45000 |
|
$0.0131 / $0.0211 | Buy Now |
|
DISTI #
ESD5Z7.0T1G
|
TME | Diode: TVS, 200W, 7.5V, 8.8A, unidirectional, SOD523, reel,tape, ESD Min Qty: 1 | 1123 |
|
$0.0236 / $0.1200 | Buy Now |
|
|
Ameya Holding Limited | ESD5Z Series 7.5 V 65 pF 7 Vrwm TVS and ESD Protection Diodes - SOD-523 | 46860 |
|
RFQ | |
|
DISTI #
ESD5Z7.0T1G
|
IBS Electronics | ESD5Z7.0T1G by ONSEMI is a TVS and ESD protection diode with 7.5V breakdown voltage, 65pF capacitance, 7V reverse working voltage, in a compact SOD-523 package, ideal for safeguarding sensitive electronics. Min Qty: 3000 Package Multiple: 1 | 117000 |
|
$0.0204 / $0.0227 | Buy Now |
|
|
NexGen Digital | 8 |
|
RFQ | ||
|
DISTI #
ESD5Z7.0T1G
|
Richardson RFPD | TVS RoHS: Compliant Min Qty: 60000 | 0 |
|
$0.0200 | Buy Now |
US Tariff Estimator: ESD5Z7.0T1G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ESD5Z7.0T1G
ESD5Z7.0T1G CAD Models
-
Part Symbol
-
Footprint
-

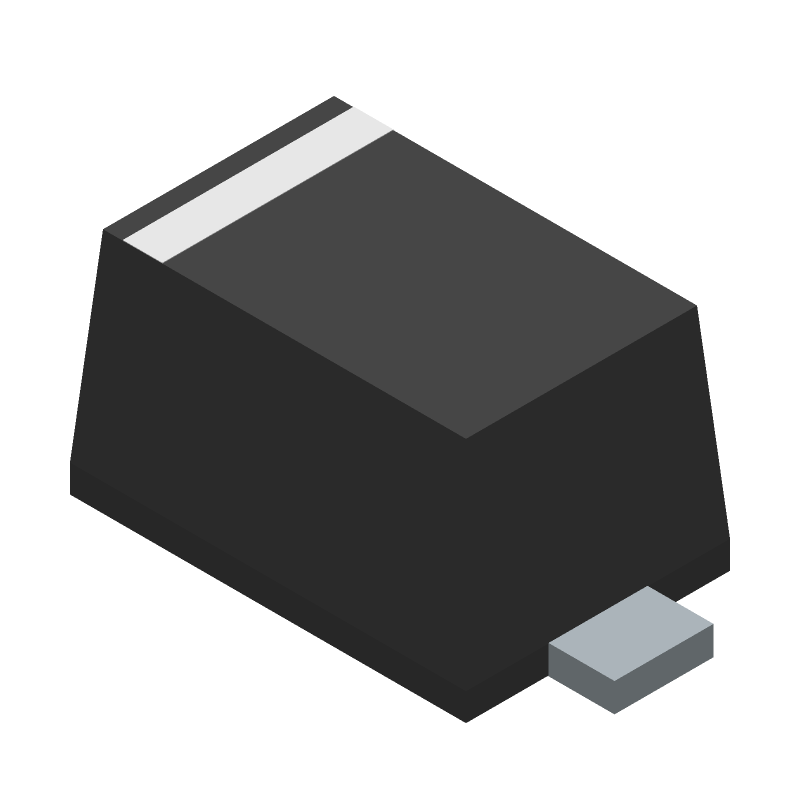

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ESD5Z7.0T1G Part Data Attributes
|
|
ESD5Z7.0T1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
ESD5Z7.0T1G
onsemi
ESD Protection Diode, SOD-523 7.0 V, SOD-523 2 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOD-523 2 LEAD | |
| Package Description | Sod-523, 2 Pin | |
| Pin Count | 2 | |
| Manufacturer Package Code | 502 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Additional Feature | Excellent Clamping Capability | |
| Breakdown Voltage-Min | 7.5 V | |
| Clamping Voltage-Max | 22.7 V | |
| Configuration | Single, 1 Channel | |
| Diode Element Material | Silicon | |
| Diode Type | Trans Voltage Suppressor Diode | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 200 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | Unidirectional | |
| Power Dissipation-Max | 0.2 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | Iec-61000-4-2, 4-4 | |
| Rep Pk Reverse Voltage-Max | 7 V | |
| Reverse Current-Max | 0.01 µA | |
| Reverse Test Voltage | 7 V | |
| Surface Mount | Yes | |
| Technology | Avalanche | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Flat | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for ESD5Z7.0T1G
This table gives cross-reference parts and alternative options found for ESD5Z7.0T1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ESD5Z7.0T1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ESD5Z7.0T5G | onsemi | Check for Price | ESD Protection Diode, SOD-523 7.0 V, SOD-523 2 LEAD, 8000-REEL | ESD5Z7.0T1G vs ESD5Z7.0T5G |
| ESD5Z7.0T1 | onsemi | Check for Price | 200W, UNIDIRECTIONAL, SILICON, TVS DIODE, 0.047 X 0.032 INCH, 0.028 INCH HEIGHT, LEAD FREE, PLASTIC, CASE 502-01, 2 PIN | ESD5Z7.0T1G vs ESD5Z7.0T1 |
| SZESD5Z7.0T1G | onsemi | Check for Price | ESD Protection Diode, SOD-523, SOD-523 2 LEAD, 3000-REEL, Automotive Qualified | ESD5Z7.0T1G vs SZESD5Z7.0T1G |
ESD5Z7.0T1G Frequently Asked Questions (FAQ)
-
A good PCB layout for ESD5Z7.0T1G involves keeping the device close to the protected line, using short traces, and minimizing the distance between the device and the connector. A ground plane under the device can also help reduce noise and improve performance.
-
The recommended capacitor value for ESD5Z7.0T1G is 1nF to 10nF. The capacitor value should be chosen based on the specific application requirements, such as the frequency of operation and the desired level of protection.
-
The maximum operating temperature for ESD5Z7.0T1G is 125°C. However, it's recommended to operate the device within a temperature range of -40°C to 85°C for optimal performance and reliability.
-
Yes, ESD5Z7.0T1G is suitable for high-speed data lines, such as USB, HDMI, and Ethernet. The device has a low capacitance of 0.5pF, which minimizes signal distortion and ensures high-speed signal integrity.
-
To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point below 260°C. Apply a small amount of solder paste to the PCB pads and use a reflow oven or a hot air gun to solder the device.
