ESD9L5.0ST5G Information
ESD9L5.0ST5G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESD9L5.0ST5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55M8768
|
Newark | Esd Protection Device, 5V, Sod-923-2, Clamping Voltage Vc Max:9.8V, Diode Case Style:Sod-923, No. Of Pins:2Pins, Operating Voltage:5V, Power Dissipation Pd:150Mw, Product Range:Esd9L Series, Automotive Qualification Standard:- Rohs Compliant: Yes |Onsemi ESD9L5.0ST5G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2607 |
|
$0.1650 / $0.2340 | Buy Now |
|
DISTI #
29X5999
|
Newark | Diode, Tvs, 0.15W, 5V, Sod-923, Diode Case Style:Sod-923, No. Of Pins:2Pins, Product Range:Esd9L Series, Clamping Voltage Max:9.8V, Msl:Msl 1 - Unlimited, Maximum Breakdown Voltage:5.4V, Minimum Breakdown Voltage:5.4V Rohs Compliant: Yes |Onsemi ESD9L5.0ST5G RoHS: Compliant Min Qty: 16000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0590 / $0.0690 | Buy Now |
|
DISTI #
55M8768
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 55M8768) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 2607 Partner Stock |
|
$0.0940 / $0.2340 | Buy Now |
|
DISTI #
ESD9L5.0ST5G
|
Avnet Americas | - Tape and Reel (Alt: ESD9L5.0ST5G) COO: China RoHS: Compliant Min Qty: 24000 Package Multiple: 8000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.0370 / $0.0405 | Buy Now |
|
DISTI #
ESD9L5.0ST5G
|
Avnet Americas | - Tape and Reel (Alt: ESD9L5.0ST5G) COO: China RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.0360 / $0.0378 | Buy Now |
|
|
Bristol Electronics | 15160 |
|
RFQ | ||
|
|
Bristol Electronics | 8909 |
|
RFQ | ||
|
|
Rochester Electronics | Trans Voltage Suppressor Diode, 5V, Unidirectional RoHS: Compliant Status: Active Min Qty: 1 | 3000 |
|
$0.0339 / $0.0547 | Buy Now |
|
DISTI #
ESD9L5.0ST5G
|
TME | Diode: TVS, 0.15W, 5.4V, unidirectional, SOD923, reel,tape, ESD Min Qty: 1 | 7898 |
|
$0.0528 / $0.2100 | Buy Now |
|
|
Ameya Holding Limited | ESD9L5 Series 5 Vrwm Low Capacitance ESD Protection Uni-Directional - SOD-923 | 16 |
|
RFQ |
US Tariff Estimator: ESD9L5.0ST5G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ESD9L5.0ST5G
ESD9L5.0ST5G CAD Models
-
Part Symbol
-
Footprint
-

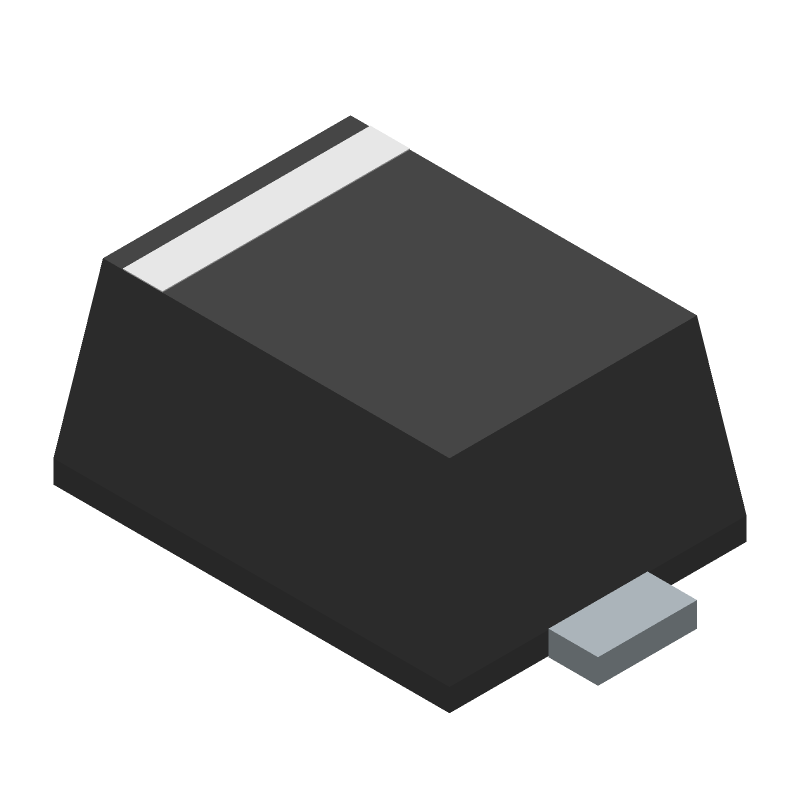

3D Model
