DUAL TRANSIL ARRAY FOR ESD PROTECTION

Part Details for ESDA14V2L by STMicroelectronics

Results Overview of ESDA14V2L by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Computing and Data Storage Telecommunications

ESDA14V2L Information

ESDA14V2L by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for ESDA14V2L

Part # Distributor Description Stock Price Buy
DISTI # 04X6218
Newark Diode, Esd Arr., 14.2V, Dual, 3-Sot23,rl, Clamping Voltage Vc Max:-, Diode Case Style:Sot-23, No. Of Pins:3Pins, Operating Voltage:14.2V, Power Dissipation Pd:300W, Product Range:Esda1 Series, Automotive Qualification Standard:-, Rohs Compliant: Yes |Stmicroelectronics ESDA14V2L RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel 3000
  • 3,000 $0.0440
  • 6,000 $0.0410
  • 12,000 $0.0400
$0.0400 / $0.0440 Buy Now
DISTI # 89K0532
Newark Tvs Diode Array, 300W, 14.2V Sot-23, Clamping Voltage Vc Max:-, Diode Case Style:Sot-23, No. Of Pins:3Pins, Operating Voltage:1.25V, Power Dissipation Pd:300W, Product Range:Transil Esdal Series, Automotive Qualification Standard:- Rohs Compliant: Yes |Stmicroelectronics ESDA14V2L RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 767
  • 1 $0.3690
  • 25 $0.2840
  • 50 $0.1940
  • 100 $0.1600
  • 250 $0.1350
  • 500 $0.1080
  • 1,000 $0.0900
  • 2,500 $0.0750
$0.0750 / $0.3690 Buy Now
DISTI # ESDA14V2L
Avnet Americas ESD Protection Device, SOT-23, 3 Pins, 12 V, 90 pF, ESDAL - Tape and Reel (Alt: ESDA14V2L) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Reel 30000
  • 3,000 $0.0360
  • 6,000 $0.0350
  • 12,000 $0.0343
  • 24,000 $0.0342
  • 48,000 $0.0340
$0.0340 / $0.0360 Buy Now
DISTI # ESDA14V2L
Avnet Americas ESD Protection Device, SOT-23, 3 Pins, 12 V, 90 pF, ESDAL - Tape and Reel (Alt: ESDA14V2L) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel 0
RFQ
DISTI # 89K0532
Avnet Americas ESD Protection Device, SOT-23, 3 Pins, 12 V, 90 pF, ESDAL - Product that comes on tape, but is not reeled (Alt: 89K0532) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 0
  • 1 $0.0900
$0.0900 Buy Now
STMicroelectronics DUAL TRANSIL ARRAY FOR ESD PROTECTION COO: France RoHS: Compliant Min Qty: 1 254098
  • 1 $0.1500
  • 10 $0.1200
  • 100 $0.0700
  • 500 $0.0700
$0.0700 / $0.1500 Buy Now
Bristol Electronics   Min Qty: 23 18000
  • 23 $0.2220
  • 69 $0.1110
  • 452 $0.0666
  • 2,254 $0.0444
  • 7,884 $0.0333
$0.0333 / $0.2220 Buy Now
Bristol Electronics   15000
RFQ
Bristol Electronics   5811
RFQ
Bristol Electronics   1540
RFQ
Bristol Electronics   800
RFQ
Bristol Electronics   Min Qty: 7 75
  • 7 $0.7500
  • 21 $0.3750
$0.3750 / $0.7500 Buy Now
DISTI # ESDA14V2L
TME Diode: TVS array, 15.8V, 300W, double,common anode, SOT23, Ch: 2 Min Qty: 1 2260
  • 1 $0.2000
  • 10 $0.1540
  • 50 $0.1104
  • 100 $0.0946
  • 500 $0.0679
  • 1,500 $0.0560
  • 3,000 $0.0505
  • 9,000 $0.0441
  • 15,000 $0.0436
$0.0436 / $0.2000 Buy Now
ComSIT USA AVAILABLE EU 203
RFQ
DISTI # SMC-ESDA14V2L
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: TBC 7523
RFQ
Chip 1 Exchange INSTOCK 10880
RFQ
DISTI # ESDA14V2L
Avnet Silica ESD Protection Device SOT23 3 Pins 12 V 90 pF ESDAL (Alt: ESDA14V2L) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Silica - 63000
Buy Now
Chip Stock ESDASeries2Channel14.2V90pFSMTUni-DirectionalTransil™Array-SOT-23 111500
RFQ
Component Electronics, Inc SMT T/R 2000
  • 1 $0.3800
  • 100 $0.2900
  • 1,000 $0.2500
$0.2500 / $0.3800 Buy Now
DISTI # ESDA14V2L
EBV Elektronik ESD Protection Device SOT23 3 Pins 12 V 90 pF ESDAL (Alt: ESDA14V2L) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days EBV - 693000
Buy Now
DISTI # ESDA14V2L
EBV Elektronik ESD Protection Device SOT23 3 Pins 12 V 90 pF ESDAL (Alt: ESDA14V2L) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days EBV - 0
Buy Now
LCSC 15A2.5us 14.2V 300W8/20us 15.8V Unidirectional 12V SOT-23 TVS Diodes RoHS 12550
  • 10 $0.0674
  • 100 $0.0525
  • 300 $0.0451
  • 3,000 $0.0395
  • 6,000 $0.0351
  • 9,000 $0.0328
$0.0328 / $0.0674 Buy Now
Win Source Electronics ESD Suppressor Diode Diode Array Uni-Dir/Bi-Dir 12V 3-Pin SOT-23 T/R / TVS DIODE 12VWM SOT23 99000
  • 1,335 $0.0375
  • 2,850 $0.0351
  • 4,425 $0.0339
  • 6,350 $0.0315
  • 8,255 $0.0303
  • 10,310 $0.0291
$0.0291 / $0.0375 Buy Now

US Tariff Estimator: ESDA14V2L by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

ESDA14V2L
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for ESDA14V2L

ESDA14V2L CAD Models

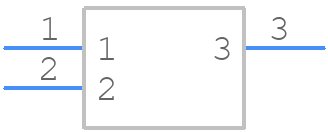

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ESDA14V2L Part Data Attributes

Parametric Data
ESDA14V2L STMicroelectronics
Buy Now Datasheet
Compare Parts:
ESDA14V2L STMicroelectronics DUAL TRANSIL ARRAY FOR ESD PROTECTION
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description SOT-23, 3 PIN
Pin Count 3
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Factory Lead Time 15 Weeks
Samacsys Manufacturer STMicroelectronics
Breakdown Voltage-Max 15.8 V
Breakdown Voltage-Min 14.2 V
Breakdown Voltage-Nom 15 V
Configuration COMMON ANODE, 2 ELEMENTS, 2 CHANNEL
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Forward Voltage-Max (VF) 1.25 V
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 300 W
Number of Elements 2
Number of Terminals 3
Operating Temperature-Max 150 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Qualification Status Not Qualified
Reference Standard IEC-61000-4-2
Rep Pk Reverse Voltage-Max 12 V
Reverse Current-Max 5 µA
Reverse Test Voltage 12 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
