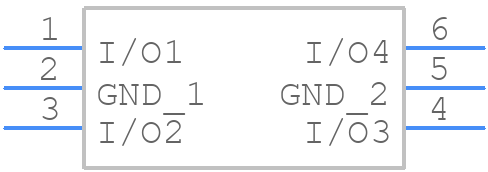

Part Symbol
-
Footprint
-

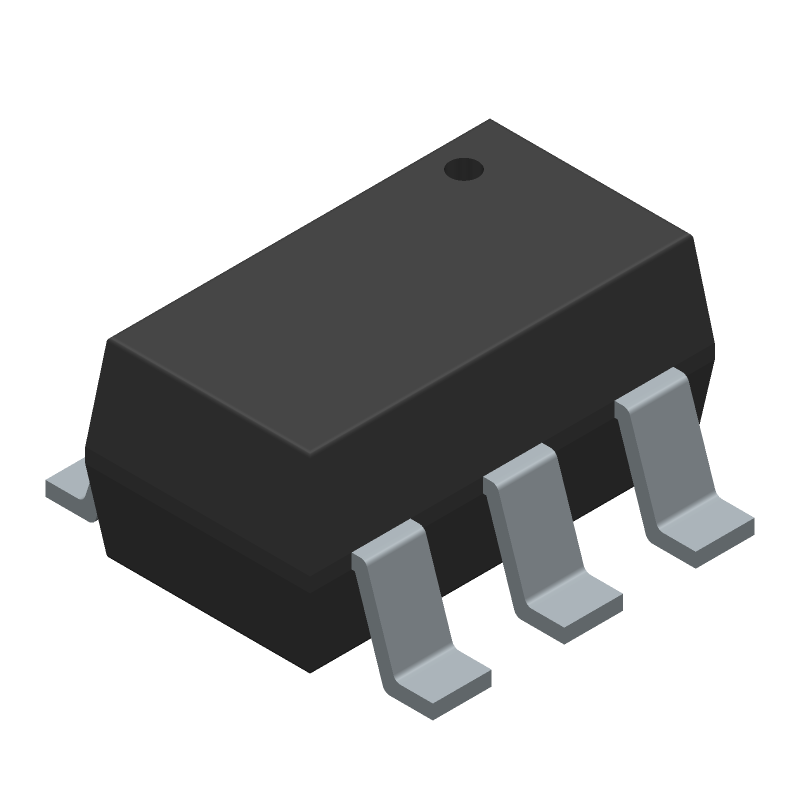

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ESDA19SC6 by STMicroelectronics
Overview of ESDA19SC6 by STMicroelectronics
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for ESDA19SC6
| Distributor | Stock | Package | QTY Break / Prices |
|---|---|---|---|
|
|
66694 Cut Tape |
Cut Tape |
|
|
|
66694 Digi-Reel® |
Digi-Reel |
|
|
|
66000 Tape & Reel |
Reel |
|
|
|
0 | Reel |
|
|
|
0 | Reel |
|
|
|
35502 | Cut Tape |
|
|
|
1270 |
|
|
|
|
92 |
|
|
|
|
Europe - 3000 |
|
|
|
|
35502 | Cut Tape |
|
Part Details for ESDA19SC6
ESDA19SC6 CAD Models
ESDA19SC6 Part Data Attributes
|
|
ESDA19SC6
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
ESDA19SC6
STMicroelectronics
Quad Transil™ array for ESD protection
|
| Source Content uid | ESDA19SC6 | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SC-59 | |
| Package Description | R-PDSO-G6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 45 Weeks | |
| Breakdown Voltage-Max | 21 V | |
| Breakdown Voltage-Min | 19 V | |
| Breakdown Voltage-Nom | 20 V | |
| Configuration | COMMON ANODE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 300 W | |
| Number of Elements | 4 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for ESDA19SC6
This table gives cross-reference parts and alternative options found for ESDA19SC6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ESDA19SC6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| BZA420A,165 Diodes | BZA420A - Quadruple ESD transient voltage suppressor TSOP 6-Pin | NXP Semiconductors | ESDA19SC6 vs BZA420A,165 |
| BZA420A,135 Diodes | BZA420A - Quadruple ESD transient voltage suppressor TSOP 6-Pin | NXP Semiconductors | ESDA19SC6 vs BZA420A,135 |
| 934045750165 Diodes | DIODE 19.6 W, UNIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE, PLASTIC, SMD, SMT6, SSOT6, SC-74, TSOP-6, Transient Suppressor | NXP Semiconductors | ESDA19SC6 vs 934045750165 |
| 934045750135 Diodes | Trans Voltage Suppressor Diode, 19.6W, Unidirectional, 4 Element, Silicon | Nexperia | ESDA19SC6 vs 934045750135 |
| BZA420A Diodes | DIODE 19.6 W, UNIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE, PLASTIC, SC-74, 6 PIN, Transient Suppressor | NXP Semiconductors | ESDA19SC6 vs BZA420A |
| BZA420AT/R Diodes | Trans Voltage Suppressor Diode, 20V V(RWM), Unidirectional, | Philips Semiconductors | ESDA19SC6 vs BZA420AT/R |
| 934045750115 Diodes | DIODE 19.6 W, UNIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE, PLASTIC, SMD, SMT6, SSOT6, SC-74, TSOP-6, Transient Suppressor | NXP Semiconductors | ESDA19SC6 vs 934045750115 |
| BZA420A,115 Diodes | BZA420A - Quadruple ESD transient voltage suppressor TSOP 6-Pin | NXP Semiconductors | ESDA19SC6 vs BZA420A,115 |
