ESDL4151MX4T5G Information
ESDL4151MX4T5G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for ESDL4151MX4T5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38AH6553
|
Newark | 15 V Bidirectional Esd And Surge Protection Device/Reel |Onsemi ESDL4151MX4T5G RoHS: Not Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
Rochester Electronics | 15 V Bidirectional Low Capacitance ESD Protection Diode for High Speed Data Lines 15V RoHS: Compliant Status: Obsolete Min Qty: 1 | 134070 |
|
$0.0600 / $0.0968 | Buy Now |
|
|
Flip Electronics | Stock, ship today | 24517 |
|
RFQ |
US Tariff Estimator: ESDL4151MX4T5G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ESDL4151MX4T5G
ESDL4151MX4T5G CAD Models
-
Part Symbol
-
Footprint
-

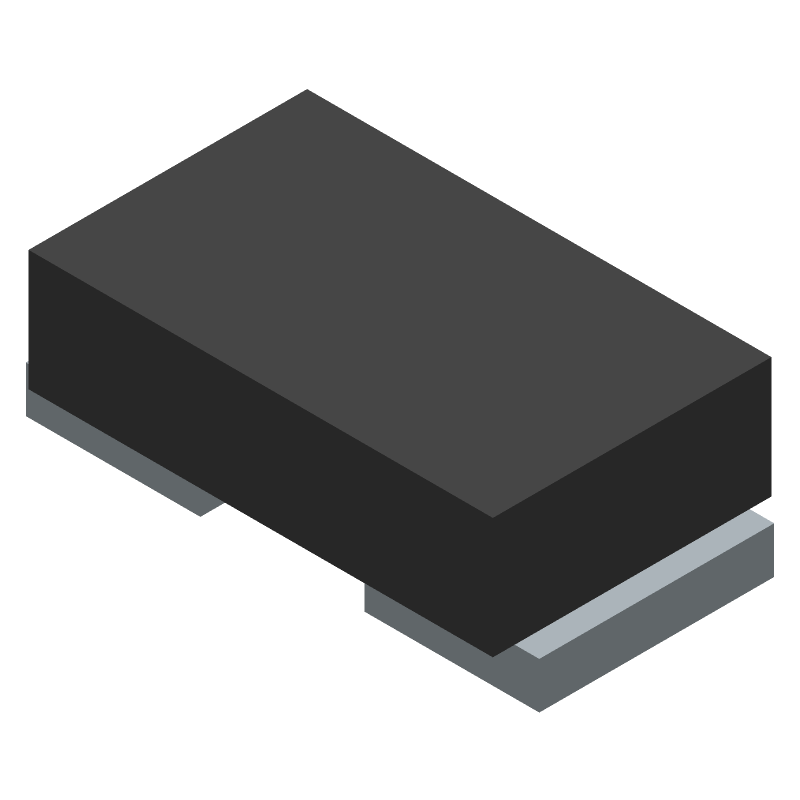

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ESDL4151MX4T5G Part Data Attributes
|
|
ESDL4151MX4T5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
ESDL4151MX4T5G
onsemi
15 V Bidirectional Low Capacitance ESD Protection Diode for High Speed Data Lines 15V, X3DFN2 1.0x0.6, 0.65P, 8000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | X3DFN2 1.0x0.6, 0.65P | |
| Package Description | X3DFN2, 2 PIN | |
| Manufacturer Package Code | 514AG | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, LOW CAPACITANCE | |
| Breakdown Voltage-Max | 19.5 V | |
| Breakdown Voltage-Min | 15.5 V | |
| Breakdown Voltage-Nom | 16.6 V | |
| Clamping Voltage-Max | 26 V | |
| Configuration | SINGLE, 1 CHANNEL | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PBCC-N2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | IEC-61000-4-2, 4-5 | |
| Rep Pk Reverse Voltage-Max | 15 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 15 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
