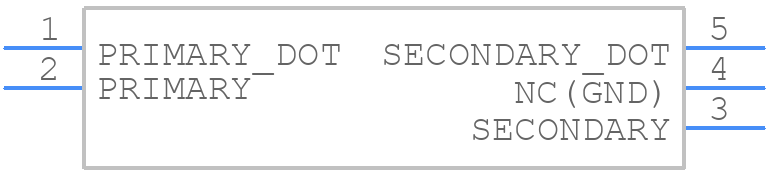

Part Symbol
-
Footprint
-

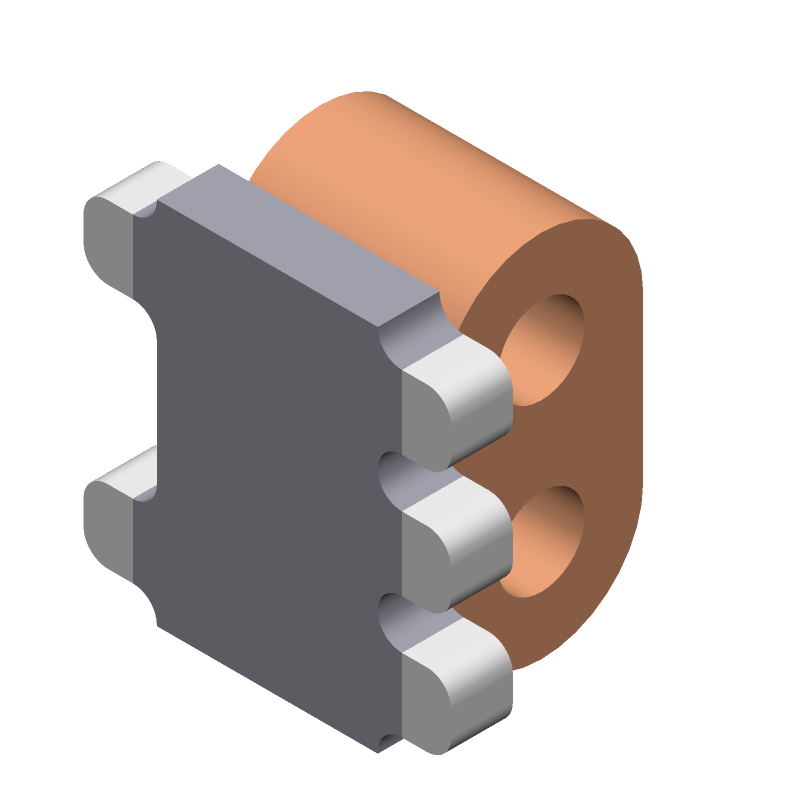

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ETC1-1-13TR by MACOM
Results Overview of ETC1-1-13TR by MACOM
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (3 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ETC1-1-13TR Information
ETC1-1-13TR by MACOM is an RF Transformer.
RF Transformers are under the broader part category of Transformers.
Transformers are passive components that transfer electrical energy between circuits and adjust voltage levels through electromagnetic induction. They are crucial for applications like power transmission and reducing voltage for low-voltage devices. Read more about Transformers on our Transformers part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| HDMF1910DD13TR1 | Amphenol Communications Solutions | HDMI Connector System - G45 Series, Input Output Connectors, Receptacle, Type A, Right Angle, 0.5mm Pitch, 19 Position, SMT (Through Hole for Shell Peg, Tin) Type, 30u\\ Gold Plating, High Temperature Thermo Plastic, Black, Tape and Reel Package | |
| RJE4A18813TRT | Amphenol Communications Solutions | Modular Jack - 8P8C, Vertical, Cat6A, THR, No Panel Stops, Single Port, Shield With Side EMI Tabs, With LEDs, With Straight Pegs | |
| 91753-013TRLF | Amphenol Communications Solutions | Minitek® 2.00mm, Board to Board, Unshrouded Vertical Header, Surface Mount, Double Row, 50 Positions, 2.00mm (0.079in) Pitch.. |
Price & Stock for ETC1-1-13TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 3672 |
|
RFQ | ||
|
|
Bristol Electronics | 1907 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 3 | 52 |
|
$1.2320 / $2.4640 | Buy Now |
|
DISTI #
ETC1-1-13
|
Richardson RFPD | BALUN TRANSFORMER RoHS: Compliant Min Qty: 2000 | 1437 |
|
$1.3400 | Buy Now |
|
DISTI #
ETC1-1-13TR
|
Richardson RFPD | BALUN TRANSFORMER RoHS: Compliant Min Qty: 2000 | 0 |
|
$1.3400 | Buy Now |
|
|
Chip Stock | RFTransformer,4.5MHzMin,3000MHzMax,1:1 | 38972 |
|
RFQ | |
|
|
LCSC | 20 4.5MHz3GHz 3.5dB 11 SMD-5P Balun RoHS | 311 |
|
$2.2223 / $3.4079 | Buy Now |
|
|
Win Source Electronics | TRANSFORMER | 35472 |
|
$0.3273 / $0.4909 | Buy Now |
Part Details for ETC1-1-13TR
ETC1-1-13TR CAD Models
ETC1-1-13TR Part Data Attributes
|
|
ETC1-1-13TR
MACOM
Buy Now
Datasheet
|
Compare Parts:
ETC1-1-13TR
MACOM
RF Transformer, 4.5MHz Min, 3000MHz Max, 1:1, ROHS COMPLIANT
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | M/A-COM TECHNOLOGY SOLUTIONS INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MACOM | |
| Additional Feature | IMPEDANCE RATIO IS 1:1 | |
| Application | MATCHING | |
| Cut-off Frequency-Max | 3000 MHz | |
| Cut-off Frequency-Min | 4.5 MHz | |
| DC Unbalance Current-Max | 30 mA | |
| Height | 2.79 mm | |
| Insertion Loss | 3.5 dB | |
| JESD-609 Code | e3 | |
| Length | 3.81 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Primary Winding | 1 | |
| Number of Secondary Winding | 1 | |
| Operating Frequency-Max | 3000000 kHz | |
| Operating Frequency-Min | 4500 kHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| Packing Method | TR | |
| Power Rating | 0.25 W | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Transformer Type | RF TRANSFORMER | |
| Turns Ratio (Np:Ns) | 1:1 | |
| Width | 2.79 mm |
