FLE-120-01-G-DV by: Samtec Inc

Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT

Part Details for FLE-120-01-G-DV by Samtec Inc

Results Overview of FLE-120-01-G-DV by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

FLE-120-01-G-DV Information

FLE-120-01-G-DV by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for FLE-120-01-G-DV

Part # Distributor Description Stock Price Buy
DISTI # 15P1618
Newark Receptacle, 1.27Mm, Smd, 40Way, Pitch Spacing:1.27Mm, No. Of Contacts:40Contacts, Gender:Receptacle, Product Range:Fle Series, Contact Termination Type:Surface Mount, No. Of Rows:2Rows, Contact Plating:Gold Plated Contacts, Contact Rohs Compliant: Yes |Samtec FLE-120-01-G-DV RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 11
  • 1 $6.3400
  • 10 $4.9600
  • 100 $4.1300
  • 250 $4.0700
  • 500 $4.0000
$4.0000 / $6.3400 Buy Now
DISTI # 11P4422
Newark Board-Board Connector, Socket, 40 Position, 2Row, Connector Systems:Board-To-Board, Wire-To-Board, Pitch Spacing:1.27Mm, No. Of Rows:2Rows, No. Of Contacts:40Contacts, Connector Mounting:Surface Mount, Product Range:Fle Series Rohs Compliant: Yes |Samtec FLE-120-01-G-DV RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $8.6000
  • 50 $7.4500
  • 100 $6.3000
  • 500 $4.4800
  • 1,000 $3.4000
$3.4000 / $8.6000 Buy Now
DISTI # FLE-120-01-G-DV
Avnet Americas PCB Receptacle, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Rows, 40 Contacts, Surface Mount - Rail/Tube (Alt: FLE-120-01-G-DV) COO: Viet Nam RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 2 Days Container: Tube 0
  • 1 $4.9196
  • 500 $3.3249
  • 1,000 $3.1447
  • 2,500 $3.1285
  • 5,000 $3.1123
$3.1123 / $4.9196 Buy Now
Bristol Electronics   200
RFQ
DISTI # FLE-120-01-G-DV
IBS Electronics BOARD TO BOARD &amp, MEZZANINE CONNECTORS COST EFFECTIVE SURFACE MOUNT SOCKET 0.050 PITCH Min Qty: 30 Package Multiple: 1 264
  • 30 $4.4625
  • 500 $3.3125
  • 1,000 $3.0000
  • 2,500 $2.2500
  • 7,502 $1.4625
  • 20,284 $1.3875
$1.3875 / $4.4625 Buy Now
DISTI # 000000000000114454
Sager Board to Board & Mezzanine Connectors Cost Effective Surface Mount Socket, 0.050 Pitch Min Qty: 1 0
  • 1 $5.0200
  • 25 $4.5900
  • 50 $4.1700
  • 100 $3.8300
  • 500 $3.4200
  • 1,000 $2.8900
$2.8900 / $5.0200 Buy Now
DISTI # FLE-120-01-G-DV
Avnet Abacus PCB Receptacle BoardtoBoard WiretoBoard 127 mm 2 Rows 40 Contacts Surface Mount (Alt: FLE-120-01-G-DV) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Abacus - 0
Buy Now
Component Electronics, Inc DIPSKT SMT 1.25MM 40P NBST 5MM GOLD BLK TUBE 24
  • 1 $3.8500
  • 100 $2.8800
  • 1,000 $2.5000
$2.5000 / $3.8500 Buy Now
LCSC 1.27mm 1.27mm 2 40P Gold -55+125 Top 4.37mm 2A Square Hole Surface MountVertical SMDP1.27mm Headers Receptacles Female Sockets RoHS 10
  • 1 $8.0146
  • 10 $7.8383
  • 36 $7.7192
  • 108 $7.6016
$7.6016 / $8.0146 Buy Now

US Tariff Estimator: FLE-120-01-G-DV by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

FLE-120-01-G-DV
Samtec Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for FLE-120-01-G-DV

FLE-120-01-G-DV CAD Models

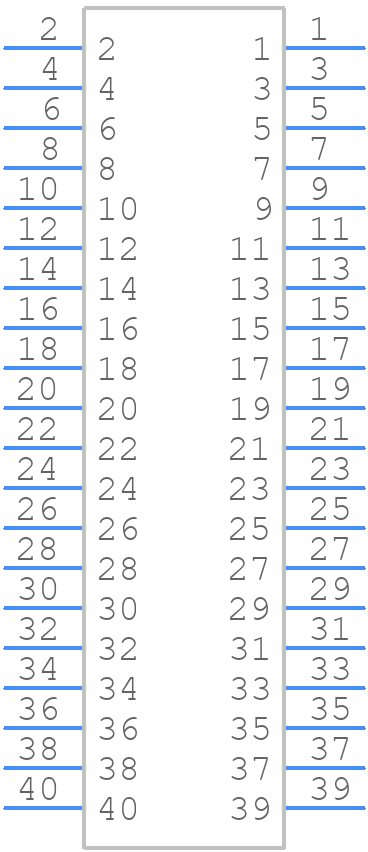

  • Part Symbol

    schematic symbol

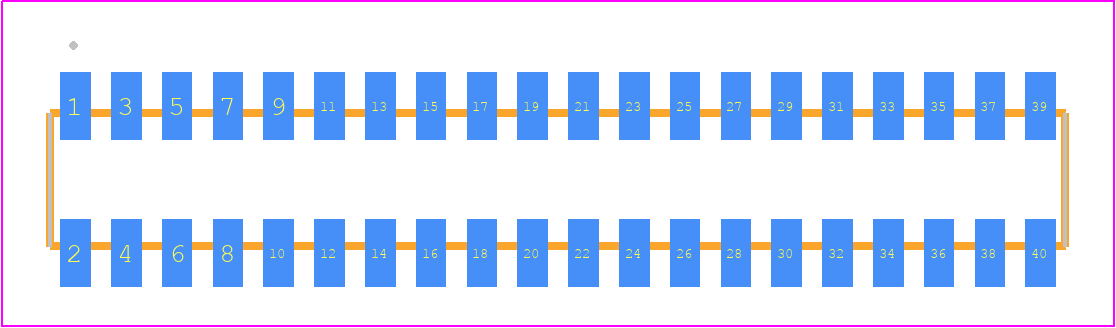

  • Footprint

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

FLE-120-01-G-DV Part Data Attributes

Parametric Data
FLE-120-01-G-DV Samtec Inc
Buy Now Datasheet
Compare Parts:
FLE-120-01-G-DV Samtec Inc Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Socket, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 2 Weeks, 2 Days
Body Breadth 0.131 Inch
Body Depth 0.179 Inch
Body Length 1.005 Inch
Body/Shell Style Socket
Connector Type Board Connector
Contact Design Preassem Conn
Contact Finish Mating Gold (10) Over Nickel (50)
Contact Finish Termination Gold (Au) - With Nickel (Ni) Barrier
Contact Gender Female
Contact Material Phosphor Bronze
Contact Pattern Rectangular
Contact Style Sq Pin-Skt
DIN Conformance No
Durability 100 Cycles
Filter Feature No
IEC Conformance No
Insertion Force-Max 0.98 N
Insulator Color Black
Insulator Material Liquid Crystal Polymer
JESD-609 Code e4
MIL Conformance No
Mating Contact Pitch 0.05 Inch
Mating Contact Row Spacing 0.05 Inch
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option General Purpose
PCB Contact Pattern Rectangular
Plating Thickness 10u Inch
Rated Current (Signal) 2.9 A
Reference Standard Ul
Terminal Pitch 1.27 Mm
Termination Type Surface Mount
Total Number of Contacts 40
Withdrawl Force-Min 0.98 N
