Part Details for FT232BL-REEL by FTDI Chip
Results Overview of FT232BL-REEL by FTDI Chip
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (3 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
FT232BL-REEL Information
FT232BL-REEL by FTDI Chip is a Bus Controller.
Bus Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| HSCHD02AR0001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Black housing | |
| HSDNBSPPCB14WBA | Amphenol Communications Solutions | HSD Right plug,Tape and Reel,Cream white housing | |
| HSCHD02BR1001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Blue housing |
Price & Stock for FT232BL-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38K1551
|
Newark | Usb Uart Interface, 32-Lqfp, Bridge Type:Usb To Uart, Supply Voltage Min:4.35V, Supply Voltage Max:5.25V, Ic Case/Package:Lqfp, No. Of Pins:32Pins, Operating Temperature Min:0°C, Operating Temperature Max:70°C, Product Range:- Rohs Compliant: Yes |Ftdi FT232BL-REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
70069388
|
RS | USB CONTROLLER, 3MBD, USB1.1, USB 2.0, 5 V, 32-PIN LQFP, USBMADEEZ-UART SERIES Min Qty: 1000 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Bulk | 0 |
|
$4.7900 | RFQ |
|
|
Chip 1 Exchange | INSTOCK | 45 |
|
RFQ | |
|
|
Chip Stock | USBFullSpeedtoSerialUARTIC-LQFP-32 | 13850 |
|
RFQ | |
|
|
LCSC | USB to UART USB 2.0 LQFP-32(7x7) Interface Controllers RoHS | 251 |
|
$21.7652 / $25.4595 | Buy Now |
|
|
Neutron USA | USB Interface IC USB to Serial UART IC LQFP-32 | 0 |
|
$58.2800 | Buy Now |
|
|
Win Source Electronics | IC USB FS SERIAL UART 32-LQFP | 5680 |
|
$17.1429 / $22.1428 | Buy Now |
US Tariff Estimator: FT232BL-REEL by FTDI Chip
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for FT232BL-REEL
FT232BL-REEL CAD Models
-

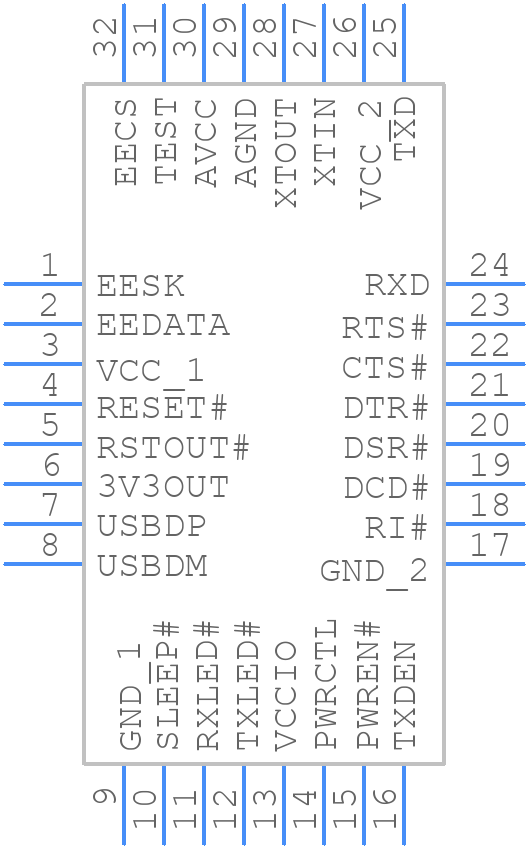

Part Symbol
-

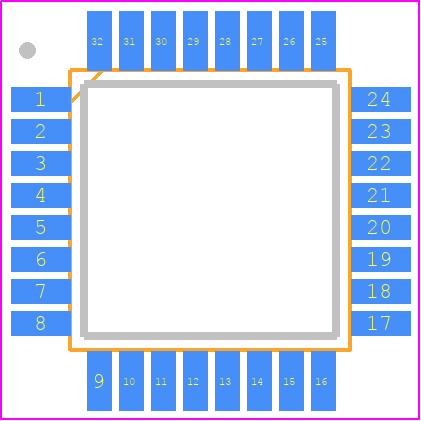

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
FT232BL-REEL Part Data Attributes
|
|
FT232BL-REEL
FTDI Chip
Buy Now
Datasheet
|
Compare Parts:
FT232BL-REEL
FTDI Chip
USB Bus Controller, CMOS, PQFP32, 7 X 7 MM, 0.80 MM PITCH, ROHS COMPLIANT, LQFP-32
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | QFP | |
| Package Description | 7 X 7 Mm, 0.80 Mm Pitch, Rohs Compliant, Lqfp-32 | |
| Pin Count | 32 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Address Bus Width | ||
| Clock Frequency-Max | 6 Mhz | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G32 | |
| JESD-609 Code | e3 | |
| Length | 7 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | LQFP | |
| Package Equivalence Code | QFP32,.35SQ,32 | |
| Package Shape | Square | |
| Package Style | Flatpack, Low Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.6 Mm | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.35 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.8 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 Mm | |
| uPs/uCs/Peripheral ICs Type | Bus Controller, Universal Serial Bus |
Alternate Parts for FT232BL-REEL
This table gives cross-reference parts and alternative options found for FT232BL-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FT232BL-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| FT232BL | FTDI Chip | $0.4554 | USB Bus Controller, CMOS, PQFP32, | FT232BL-REEL vs FT232BL |
FT232BL-REEL Frequently Asked Questions (FAQ)
-
The maximum cable length supported by the FT232BL is 3 meters (10 feet) for a reliable connection. However, it's recommended to use a cable length of 1.5 meters (5 feet) or less for optimal performance.
-
Yes, the FT232BL is 5V tolerant, but it's recommended to use a 3.3V power supply for optimal performance and to reduce power consumption.
-
The FT232BL can be configured for a specific baud rate using the FTDI Chip's MProg tool or by using the FT_PROG utility. The baud rate can be set using the EEPROM configuration or through the use of an external crystal oscillator.
-
The maximum data transfer rate of the FT232BL is 3 Mbps (megabits per second). However, the actual data transfer rate may be limited by the system's USB bandwidth and the quality of the cable used.
-
Yes, the FT232BL is compatible with USB 3.0, but it operates at USB 2.0 speeds. It's recommended to use a USB 2.0 hub or port to ensure reliable operation.
