Part Details for FT232RQ-TRAY by FTDI Chip
Results Overview of FT232RQ-TRAY by FTDI Chip
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
FT232RQ-TRAY Information
FT232RQ-TRAY by FTDI Chip is a Bus Controller.
Bus Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for FT232RQ-TRAY
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70403905
|
RS | USB FULL SPEED TO SERIAL UART IC INCLUDES OSCILLATOR AND EEPROM Min Qty: 1 Package Multiple: 1 Lead time: 47 Weeks, 0 Days Container: Bulk | 34 |
|
$4.7500 / $5.2700 | Buy Now |
|
|
Bristol Electronics | 695 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 1 | 11 |
|
$5.0960 / $7.8400 | Buy Now |
|
|
Bristol Electronics | 8 |
|
RFQ | ||
|
|
Neutron USA | USB Interface IC FT232R Single Ch Full Speed | 34 |
|
$73.3800 | Buy Now |
|
|
Win Source Electronics | IC USB FS SERIAL UART 32QFN / USB Bridge, USB to UART USB 2.0 UART Interface 32-QFN (5x5) | 18790 |
|
$3.3258 / $4.2957 | Buy Now |
US Tariff Estimator: FT232RQ-TRAY by FTDI Chip
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for FT232RQ-TRAY
FT232RQ-TRAY CAD Models
-

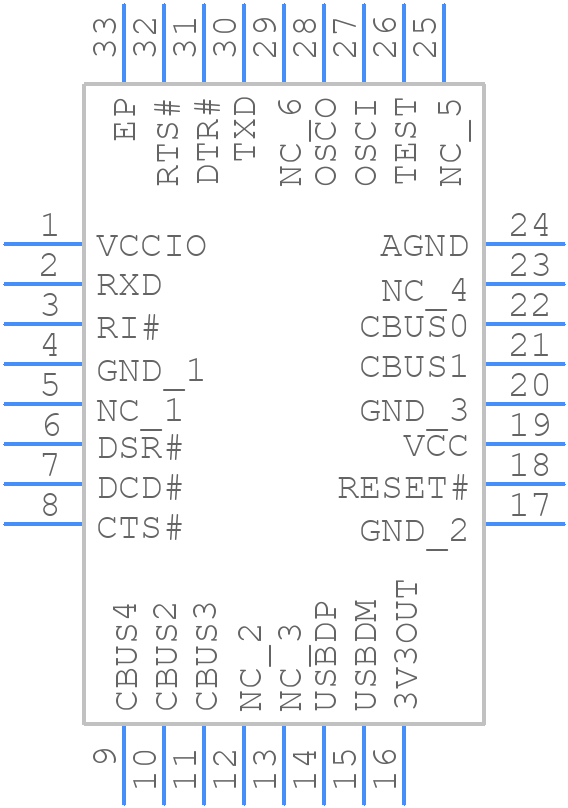

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
FT232RQ-TRAY Part Data Attributes
|
|
FT232RQ-TRAY
FTDI Chip
Buy Now
Datasheet
|
Compare Parts:
FT232RQ-TRAY
FTDI Chip
USB Bus Controller, CMOS, 5 X 5 MM, GREEN, QFN-32
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | QFN | |
| Package Description | Qfn-32 | |
| Pin Count | 32 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Address Bus Width | ||
| Bus Compatibility | Uart, Usb | |
| Clock Frequency-Max | 12.02 Mhz | |
| External Data Bus Width | ||
| JESD-30 Code | S-XQCC-N32 | |
| Length | 5 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Unspecified | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC32,.2SQ,20 | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.9 Mm | |
| Supply Current-Max | 0.1 Ma | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 5 Mm | |
| uPs/uCs/Peripheral ICs Type | Bus Controller, Universal Serial Bus |
Alternate Parts for FT232RQ-TRAY
This table gives cross-reference parts and alternative options found for FT232RQ-TRAY. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FT232RQ-TRAY, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| FT232RNL-TUBE | FTDI Chip | $3.6390 | USB Bus Controller, CMOS, PDSO28 | FT232RQ-TRAY vs FT232RNL-TUBE |
| FT232RL-REEL | FTDI Chip | $5.1322 | USB Bus Controller, CMOS, PDSO28, 10.20 X 5.30 MM, GREEN, SSOP-28 | FT232RQ-TRAY vs FT232RL-REEL |
| UPD1002T-A/MQ | Microchip Technology Inc | Check for Price | IC UNIVERSAL SERIAL BUS CONTROLLER, Bus Controller | FT232RQ-TRAY vs UPD1002T-A/MQ |
| UPD1002-AI/MQ | Microchip Technology Inc | Check for Price | USB Bus Controller, CMOS | FT232RQ-TRAY vs UPD1002-AI/MQ |
| FT232RL-TUBE | FTDI Chip | Check for Price | USB Bus Controller, CMOS, PDSO28, 10.20 X 5.30 MM, GREEN, SSOP-28 | FT232RQ-TRAY vs FT232RL-TUBE |
| CY7C65213-28PVXI | Cypress Semiconductor | Check for Price | USB Bus Controller, CMOS, PDSO28, SSOP-28 | FT232RQ-TRAY vs CY7C65213-28PVXI |
FT232RQ-TRAY Frequently Asked Questions (FAQ)
-
The maximum cable length supported by the FT232RQ is 3 meters (10 feet) for a reliable connection. However, it's recommended to use a cable length of 1.5 meters (5 feet) or less for optimal performance.
-
Yes, the FT232RQ can operate with a 5V power supply. The device has an internal voltage regulator that can handle input voltages from 4V to 5.5V.
-
To configure the FT232RQ for 3.3V operation, connect the VCCIO pin to a 3.3V power supply and ensure that the VCC pin is connected to a 5V power supply. The internal voltage regulator will then regulate the voltage to 3.3V for the I/O pins.
-
The maximum data transfer rate of the FT232RQ is 3 Mbps (megabits per second) in asynchronous mode and 12 Mbps in synchronous mode.
-
Yes, the FT232RQ is compatible with USB 3.0 ports. However, the device will operate at USB 2.0 speeds (up to 480 Mbps) even when connected to a USB 3.0 port.
