FTSH-105-01-L-DV-K-A-P by: Samtec Inc

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, ROHS COMPLIANT

Part Details for FTSH-105-01-L-DV-K-A-P by Samtec Inc

Results Overview of FTSH-105-01-L-DV-K-A-P by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

FTSH-105-01-L-DV-K-A-P Information

FTSH-105-01-L-DV-K-A-P by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
74AC11000N Texas Instruments Quadruple 2-Input Positive-NAND Gates 16-PDIP -40 to 85
74AC11004DW Texas Instruments Hex Inverters 20-SOIC -40 to 85
74AC11074D Texas Instruments Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear and Preset 14-SOIC -40 to 85

Price & Stock for FTSH-105-01-L-DV-K-A-P

Part # Distributor Description Stock Price Buy
DISTI # 01R3461
Newark Conn, Header, 10Pos, 2Row, 1.27Mm, Smt, Connector Systems:Wire-To-Board, Pitch Spacing:1.27Mm, No. Of Rows:2Rows, No. Of Contacts:10Contacts, Contact Termination Type:Surface Mount, Product Range:Ftsh Series Rohs Compliant: Yes |Samtec FTSH-105-01-L-DV-K-A-P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 170
  • 1 $2.5100
  • 100 $1.9700
  • 250 $1.7800
  • 500 $1.5700
  • 1,000 $1.3800
  • 2,500 $1.2400
$1.2400 / $2.5100 Buy Now
DISTI # FTSH-105-01-L-DV-K-A-P
Avnet Americas Pin Header, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Rows, 10 Contacts, Surface Mount - Rail/Tube (Alt: FTSH-105-01-L-DV-K-A-P) COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tube 170 Factory Stock
  • 1 $2.2736
  • 1,000 $1.2575
  • 2,500 $1.1739
  • 5,000 $1.0541
  • 10,000 $0.9375
$0.9375 / $2.2736 Buy Now
Bristol Electronics   15
RFQ
Powell Electronics .050 Micro Terminal Strip Min Qty: 1 2026
  • 1 $2.5800
  • 100 $2.0300
  • 250 $1.8300
  • 500 $1.6200
  • 1,000 $1.4200
$1.4200 / $2.5800 Buy Now
DISTI # 000000000001303891
Sager Headers & Wire Housings High Reliability Header Strips, .050 pitch Min Qty: 1 3070
  • 1 $2.5800
  • 100 $2.0300
  • 250 $1.8300
  • 500 $1.6200
  • 1,000 $1.4200
  • 2,500 $1.2800
$1.2800 / $2.5800 Buy Now
DISTI # FTSH-105-01-L-DV-K-A-P
Avnet Abacus Pin Header BoardtoBoard WiretoBoard 127 mm 2 Rows 10 Contacts Surface Mount (Alt: FTSH-105-01-L-DV-K-A-P) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # FTSH-105-01-L-DV-K-A-P
Avnet Asia Pin Header, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Rows, 10 Contacts, Surface Mount (Alt: FTSH-105-01-L-DV-K-A-P) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 0 Days 0
RFQ
DISTI # FTSH-105-01-L-DV-K-A-P
Chip One Stop Interconnects RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 448
  • 1 $2.3200
  • 10 $2.1500
  • 50 $2.0500
  • 100 $1.7800
  • 250 $1.6100
  • 500 $1.3200
  • 1,000 $1.1900
  • 3,000 $1.1800
$1.1800 / $2.3200 Buy Now

US Tariff Estimator: FTSH-105-01-L-DV-K-A-P by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

FTSH-105-01-L-DV-K-A-P
Samtec Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for FTSH-105-01-L-DV-K-A-P

FTSH-105-01-L-DV-K-A-P CAD Models

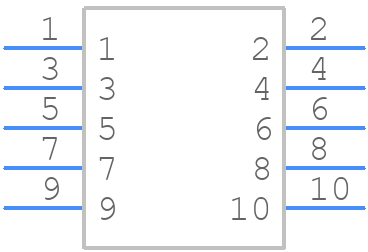

  • Part Symbol

    schematic symbol

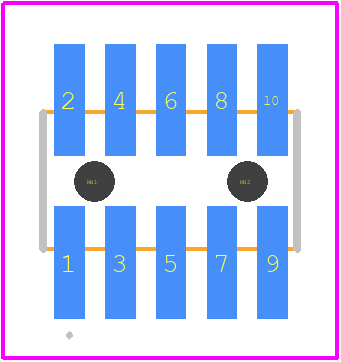

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

FTSH-105-01-L-DV-K-A-P Part Data Attributes

Parametric Data
FTSH-105-01-L-DV-K-A-P Samtec Inc
Buy Now Datasheet
Compare Parts:
FTSH-105-01-L-DV-K-A-P Samtec Inc Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 1 Week
Additional Feature Pick & Place Pad
Body Breadth 0.135 Inch
Body Depth 0.241 Inch
Body Length 0.25 Inch
Connector Type Board Connector
Contact Finish Mating Gold (10) Over Nickel (50)
Contact Finish Termination Tin (Sn) - With Nickel (Ni) Barrier
Contact Gender Male
Contact Material Phosphor Bronze
Contact Pattern Rectangular
Contact Style Sq Pin-Skt
DIN Conformance No
Filter Feature No
IEC Conformance No
Insulator Material Liquid Crystal Polymer
JESD-609 Code e3
MIL Conformance No
Mating Contact Pitch 0.05 Inch
Mating Contact Row Spacing 0.05 Inch
Mating Information Multiple Mating Parts Available
Mixed Contacts No
Mounting Option 1 Locking
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option General Purpose
PCB Contact Pattern Rectangular
PCB Contact Row Spacing 4.064 Mm
Plating Thickness 10u Inch
Rated Current (Signal) 4.2 A
Reference Standard Ul
Terminal Pitch 1.27 Mm
Termination Type Surface Mount
Total Number of Contacts 10
