FTSH-105-01-L-DV-K-P-TR by: Samtec Inc

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, ROHS COMPLIANT

Part Details for FTSH-105-01-L-DV-K-P-TR by Samtec Inc

Results Overview of FTSH-105-01-L-DV-K-P-TR by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

FTSH-105-01-L-DV-K-P-TR Information

FTSH-105-01-L-DV-K-P-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for FTSH-105-01-L-DV-K-P-TR

Part # Distributor Description Stock Price Buy
DISTI # 97AC6756
Newark Conn, Pin Hdr, 10Pos, 2Row, 1.27Mm, Smt, Connector Systems:Board-To-Board, Wire-To-Board, Pitch Spacing:1.27Mm, No. Of Rows:2Rows, No. Of Contacts:10Contacts, Contact Termination Type:Surface Mount Straight, Product Range:Ftsh Seriesrohs Compliant: Yes |Samtec FTSH-105-01-L-DV-K-P-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1145
  • 1 $2.8800
  • 100 $2.2700
  • 250 $2.0500
  • 500 $1.8100
  • 1,000 $1.5900
  • 2,500 $1.4400
  • 5,000 $1.3400
  • 10,000 $1.1500
$1.1500 / $2.8800 Buy Now
DISTI # 45AM3764
Newark Conn, Pin Hdr, 10Pos, 2Row, 1.27Mm, Smt Rohs Compliant: Yes |Samtec FTSH-105-01-L-DV-K-P-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # FTSH-105-01-L-DV-K-P-TR
Avnet Americas Pin Header, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Rows, 10 Contacts, Surface Mount - Tape and Reel (Alt: FTSH-105-01-L-DV-K-P-TR) COO: China RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 6 Weeks, 3 Days Container: Reel 22370 Factory Stock
  • 500 $1.1867
  • 1,000 $1.1658
  • 2,000 $1.1481
  • 4,000 $1.1303
  • 8,000 $1.1125
$1.1125 / $1.1867 Buy Now
DISTI # FTSH-105-01-L-DV-K-P-TR
Avnet Americas Pin Header, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Rows, 10 Contacts, Surface Mount - Tape and Reel (Alt: FTSH-105-01-L-DV-K-P-TR) COO: China RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 1 Weeks, 0 Days Container: Reel 22370 Factory Stock
  • 500 $1.2714
  • 1,000 $1.2460
  • 2,000 $1.2237
  • 3,000 $1.2015
  • 4,000 $1.1710
$1.1710 / $1.2714 Buy Now
Bristol Electronics   Min Qty: 2 9084
  • 2 $2.7360
  • 9 $2.0520
  • 26 $1.7100
  • 89 $1.0260
  • 294 $0.9576
  • 785 $0.9029
$0.9029 / $2.7360 Buy Now
Bristol Electronics   Min Qty: 2 810
  • 2 $4.4800
  • 7 $2.9120
  • 19 $2.2400
  • 57 $2.0908
  • 121 $1.9412
  • 246 $1.8368
$1.8368 / $4.4800 Buy Now
DISTI # FTSH10501LDVKPTR
TME Connector: pin strips, socket, male, PIN: 10, vertical, SMT, 1.27mm Min Qty: 1 0
  • 1 $2.7300
  • 75 $2.2600
  • 100 $2.1900
  • 125 $2.1200
  • 250 $1.9300
  • 500 $1.7200
  • 1,000 $1.6900
$1.6900 / $2.7300 RFQ
Powell Electronics .050 Micro Terminal Strip Min Qty: 1 3702
  • 1 $2.8800
  • 100 $2.2700
  • 250 $2.0500
  • 500 $1.8100
  • 1,000 $1.5900
$1.5900 / $2.8800 Buy Now
DISTI # 000000000000059374
Sager Headers & Wire Housings High Reliability Header Strips, .050 pitch Min Qty: 1 72505
  • 1 $2.8800
  • 100 $2.2700
  • 250 $2.0500
  • 500 $1.8100
  • 1,000 $1.5900
  • 2,500 $1.4400
$1.4400 / $2.8800 Buy Now
DISTI # SMC-FTSH-105-01-L-DV-K-P-TR
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: 2303 350
RFQ
DISTI # FTSH-105-01-L-DV-K-P-TR
Avnet Abacus Pin Header BoardtoBoard WiretoBoard 127 mm 2 Rows 10 Contacts Surface Mount (Alt: FTSH-105-01-L-DV-K-P-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Abacus - 60959
Buy Now
DISTI # FTSH-105-01-L-DV-K-P-TR
Avnet Asia Pin Header, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Rows, 10 Contacts, Surface Mount (Alt: FTSH-105-01-L-DV-K-P-TR) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 3 Weeks, 0 Days 0
  • 500 $0.9288
  • 1,000 $0.9168
  • 1,500 $0.9050
  • 2,500 $0.8936
  • 5,000 $0.8715
  • 12,500 $0.8505
  • 25,000 $0.8305
$0.8305 / $0.9288 Buy Now
DISTI # FTSH-105-01-L-DV-K-P-TR
Chip One Stop Interconnects RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 3553
  • 1 $2.4700
  • 10 $1.5700
  • 50 $1.2700
  • 100 $1.1900
  • 500 $1.0900
  • 3,000 $1.0300
$1.0300 / $2.4700 Buy Now
Chip Stock PinHeader,Board-to-Board,Wire-to-Board,1.27mm,2Rows,10Contacts,SurfaceMount 106960
RFQ
Greenchips   Date Code: N/A 43
  • 1 $0.6049
  • 100 $0.5761
  • 1,000 $0.5486
  • 10,000 $0.4951
$0.4951 / $0.6049 Buy Now
LCSC Pin Header Black 2x5P 10P Gold 1.27mm Phosphor Bronze 3.05mm 2 Surface MountVertical -55+125 SMDP1.27mm Headers Male Pins RoHS 140
  • 1 $1.5734
  • 10 $1.3011
  • 30 $1.1510
  • 100 $0.9824
  • 500 $0.9066
  • 1,000 $0.8726
$0.8726 / $1.5734 Buy Now
New Advantage Corporation Micro Header, 2x05 pos., pitch 1.27mm, SMD RoHS: Compliant Min Qty: 1 Package Multiple: 1 48767
  • 50 $5.0200
  • 48,767 $4.6400
$4.6400 / $5.0200 Buy Now
Win Source Electronics CONN HEADER SMD 10POS 1.27MM / SMT MICRO HEADER 95800
  • 60 $0.8857
  • 125 $0.8286
  • 190 $0.8000
  • 270 $0.7429
  • 350 $0.7143
  • 440 $0.6858
$0.6858 / $0.8857 Buy Now

US Tariff Estimator: FTSH-105-01-L-DV-K-P-TR by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

FTSH-105-01-L-DV-K-P-TR
Samtec Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for FTSH-105-01-L-DV-K-P-TR

FTSH-105-01-L-DV-K-P-TR CAD Models

  • Part Symbol

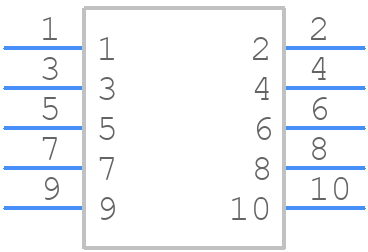

    schematic symbol

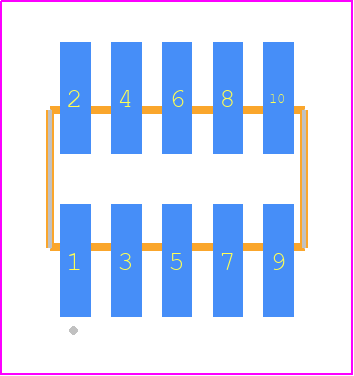

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

FTSH-105-01-L-DV-K-P-TR Part Data Attributes

Parametric Data
FTSH-105-01-L-DV-K-P-TR Samtec Inc
Buy Now Datasheet
Compare Parts:
FTSH-105-01-L-DV-K-P-TR Samtec Inc Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 1 Week
Samacsys Manufacturer SAMTEC
Additional Feature PICK & PLACE PAD
Body Breadth 0.135 inch
Body Depth 0.241 inch
Body Length 0.25 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD OVER NICKEL
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.05 inch
Mating Contact Row Spacing 0.05 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 4.064 mm
Plating Thickness 10u inch
Rated Current (Signal) 4.2 A
Reference Standard UL
Terminal Pitch 1.27 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 10
