GBU8M Information
GBU8M by onsemi is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for GBU8M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47T5080
|
Newark | Bridge Rectifier Diode, Single, 1 Kv, 8 A, Sip, 1 V, 4 Rohs Compliant: Yes |Onsemi GBU8M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 7259 |
|
$1.0900 / $2.8600 | Buy Now |
|
DISTI #
GBU8M
|
Avnet Americas | - Rail/Tube (Alt: GBU8M) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Tube | 23284000 Factory Stock |
|
$0.4461 | Buy Now |
|
|
Bristol Electronics | 554 |
|
RFQ | ||
|
|
Rochester Electronics | Bridge Rectifier Diode, 1 Phase, 6A, 1000V V(RRM), Silicon RoHS: Not Compliant Status: Active Min Qty: 1 | 400 |
|
$0.6324 / $1.0200 | Buy Now |
|
DISTI #
GBU8M-ONS
|
TME | Bridge rectifier: single-phase, Urmax: 1kV, If: 8A, Ifsm: 200A, flat Min Qty: 1 | 0 |
|
$1.0900 / $2.4400 | RFQ |
|
DISTI #
GBU8M
|
Avnet Asia | (Alt: GBU8M) RoHS: Compliant Min Qty: 1600 Package Multiple: 800 Lead time: 12 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
GBU8M
|
Avnet Silica | (Alt: GBU8M) RoHS: Compliant Min Qty: 800 Package Multiple: 800 Lead time: 13 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
GBU8M
|
EBV Elektronik | (Alt: GBU8M) RoHS: Compliant Min Qty: 800 Package Multiple: 800 Lead time: 14 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 200A 1V8A 8A 1kV GBU Bridge Rectifiers RoHS | 438 |
|
$0.9208 / $1.7519 | Buy Now |
|
|
New Advantage Corporation | GBU8M Series 6 A 1000 V Through Hole Glass Passivated Bridge Rectifier - GBU-4 RoHS: Compliant Min Qty: 1 Package Multiple: 20 | 560 |
|
$0.7846 / $0.8500 | Buy Now |
US Tariff Estimator: GBU8M by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for GBU8M
GBU8M CAD Models
-
Part Symbol
-

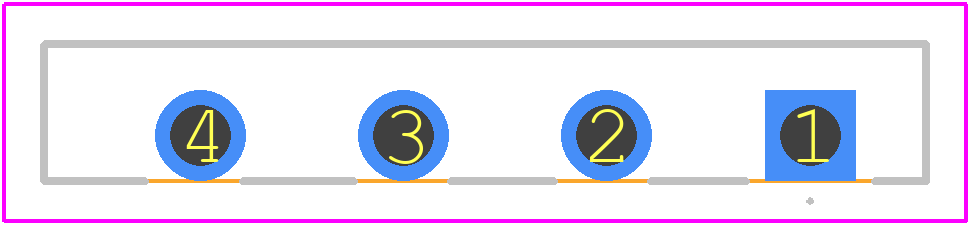

Footprint
-

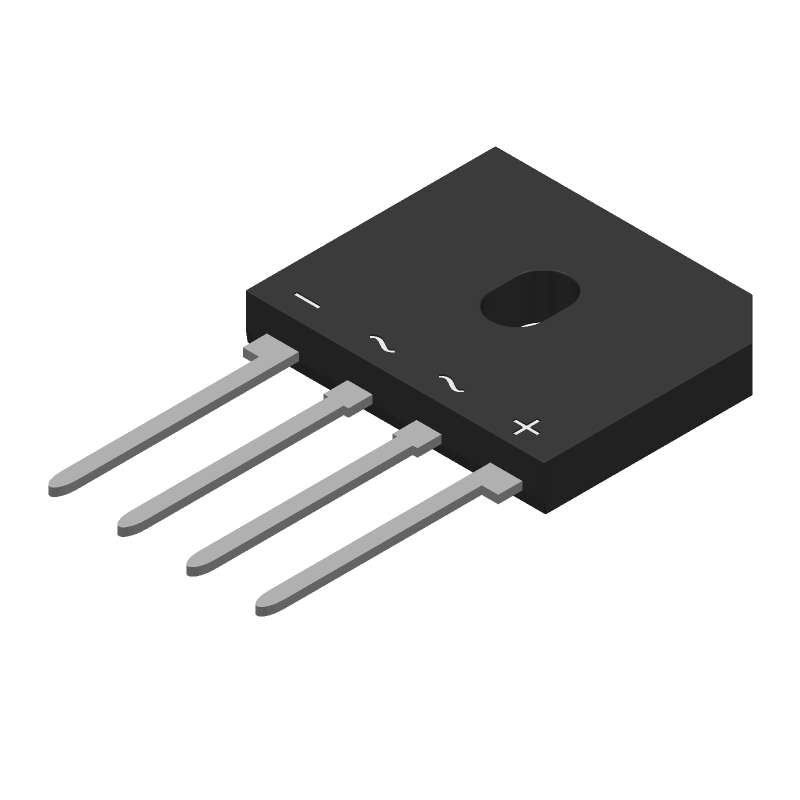

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
GBU8M Part Data Attributes
|
|
GBU8M
onsemi
Buy Now
Datasheet
|
Compare Parts:
GBU8M
onsemi
1000V/6A Bridge Rectifier, SIP-4, 800-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SIP-4 | |
| Package Description | PLASTIC, GBU, 4 PIN | |
| Manufacturer Package Code | 127EL | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Breakdown Voltage-Min | 1000 V | |
| Case Connection | ISOLATED | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | BRIDGE RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PSFM-W4 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 200 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 6 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Power Dissipation-Max | 16 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | WIRE | |
| Terminal Position | SINGLE |
Alternate Parts for GBU8M
This table gives cross-reference parts and alternative options found for GBU8M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of GBU8M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| GBU8M-BP | Micro Commercial Components | Check for Price | Bridge Rectifier Diode, 1 Phase, 8A, 1000V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, GBU, 4 PIN | GBU8M vs GBU8M-BP |
| GBU8M-E3/51 | Vishay Intertechnologies | Check for Price | Bridge Rectifier Diode, 1 Phase, 3.9A, 1000V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, CASE GBU, 4 PIN | GBU8M vs GBU8M-E3/51 |
| GBU8M | Daco Semiconductor Co Ltd | Check for Price | Bridge Rectifier Diode | GBU8M vs GBU8M |
| GBU810 | Suzhou Good-Ark Electronics Co Ltd | Check for Price | Bridge Rectifier Diode, 8A, 1000V V(RRM) | GBU8M vs GBU810 |
| GBU8M-M3/51 | Vishay Intertechnologies | Check for Price | Bridge Rectifier Diode, | GBU8M vs GBU8M-M3/51 |
| GBU8M-E3/72 | Vishay Semiconductors | Check for Price | Bridge Rectifier Diode, 1 Phase, 3A, 1000V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, CASE GBU, 4 PIN | GBU8M vs GBU8M-E3/72 |
| GBU810 | Galaxy Semi-Conductor Co Ltd | Check for Price | Bridge Rectifier Diode, 8A, 1000V V(RRM) | GBU8M vs GBU810 |
| GBU8M | Galaxy Semi-Conductor Co Ltd | Check for Price | Bridge Rectifier Diode, 8A, 1000V V(RRM) | GBU8M vs GBU8M |
| GBU8M | Gulfsemi | Check for Price | Bridge Rectifier Diode, 1 Phase, 8A, 1000V V(RRM), Silicon, PLASTIC, GBU, 4 PIN | GBU8M vs GBU8M |
| GBU810 | Galaxy Microelectronics | Check for Price | Bridge Rectifier Diode, 8A, 1000V V(RRM), | GBU8M vs GBU810 |
