GCM21BR71H105KA03L by: Murata Manufacturing Co Ltd

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

Part Details for GCM21BR71H105KA03L by Murata Manufacturing Co Ltd

Results Overview of GCM21BR71H105KA03L by Murata Manufacturing Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

GCM21BR71H105KA03L Information

GCM21BR71H105KA03L by Murata Manufacturing Co Ltd is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for GCM21BR71H105KA03L

Part # Distributor Description Stock Price Buy
DISTI # 06AC6015
Newark Cap, 1Μf, 50V, 10%, X7R, 0805, Capacitance:1Μf, Voltage Rating:50V, Ceramic Capacitor Case:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Gcm Series, Operating Temperature Min:-55°C, Rohs Compliant: Yes |Murata GCM21BR71H105KA03L RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 23888
  • 1 $0.2250
  • 10 $0.0910
  • 25 $0.0850
  • 50 $0.0780
  • 100 $0.0720
  • 250 $0.0690
  • 500 $0.0660
  • 1,000 $0.0600
$0.0600 / $0.2250 Buy Now
DISTI # 64AJ4272
Newark Cap, 1Uf, 50V, Mlcc, 0805 Rohs Compliant: Yes |Murata GCM21BR71H105KA03L RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Tape & Reel 0
  • 3,000 $0.0460
  • 6,000 $0.0450
  • 12,000 $0.0430
$0.0430 / $0.0460 Buy Now
DISTI # GCM21BR71H105KA03L
Avnet Americas - Tape and Reel (Alt: GCM21BR71H105KA03L) COO: Japan RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days Container: Tape & Reel 0
  • 3,000 $0.0330
$0.0330 Buy Now
DISTI # 06AC6015
Avnet Americas - Product that comes on tape, but is not reeled (Alt: 06AC6015) COO: Japan RoHS: Compliant Min Qty: 10 Package Multiple: 10 Container: Ammo Pack 0
  • 1 $0.2240
  • 10 $0.0900
  • 25 $0.0840
  • 50 $0.0770
  • 100 $0.0710
  • 250 $0.0680
  • 500 $0.0650
$0.0650 / $0.2240 Buy Now
Bristol Electronics   Min Qty: 23 404405
  • 23 $0.2250
  • 68 $0.1125
  • 446 $0.0675
  • 2,224 $0.0450
  • 7,779 $0.0338
  • 18,493 $0.0304
$0.0304 / $0.2250 Buy Now
Bristol Electronics   6157
RFQ
DISTI # GCM21BR71H105KA03L
TME Capacitor: ceramic, MLCC, 1uF, 50V, X7R, ±10%, SMD, 0805, 180mm Min Qty: 1 18742
  • 1 $0.1000
  • 10 $0.0400
  • 50 $0.0360
  • 100 $0.0342
  • 500 $0.0303
  • 1,000 $0.0287
  • 3,000 $0.0260
  • 9,000 $0.0234
  • 15,000 $0.0222
  • 30,000 $0.0205
$0.0205 / $0.1000 Buy Now
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 724
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # KKS3851
Rutronik KC 1,0µF 0805 10% 50V X7R AECQ RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Tape & Reel Stock DE - 39000
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 3,000 $0.0215
  • 9,000 $0.0213
  • 15,000 $0.0213
  • 45,000 $0.0211
  • 105,000 $0.0211
$0.0211 / $0.0215 Buy Now
DISTI # SMC-GCM21BR71H105KA03L
Sensible Micro Corporation Cap Cer 1Uf 50V X7R 0805 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1707 Container: Tape & Reel 2000
RFQ
Chip 1 Exchange INSTOCK 15000
RFQ
DISTI # GCM21BR71H105KA03L
Avnet Abacus (Alt: GCM21BR71H105KA03L) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks, 0 Days Abacus - 1053000
Buy Now
DISTI # GCM21BR71H105KA03L
Avnet Asia (Alt: GCM21BR71H105KA03L) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days 15000
  • 3,000 $0.0788
  • 6,000 $0.0764
  • 9,000 $0.0741
  • 15,000 $0.0717
  • 30,000 $0.0693
  • 75,000 $0.0670
  • 150,000 $0.0646
$0.0646 / $0.0788 Buy Now
DISTI # GCM21BR71H105KA03L
Chip One Stop Passives RoHS: Compliant pbFree: Yes Min Qty: 10 Lead time: 0 Weeks, 1 Days Container: Cut Tape 32302
  • 10 $0.1270
  • 50 $0.0543
  • 100 $0.0406
  • 200 $0.0378
  • 500 $0.0345
  • 1,000 $0.0296
  • 2,000 $0.0280
  • 6,000 $0.0262
  • 12,000 $0.0246
  • 24,000 $0.0233
$0.0233 / $0.1270 Buy Now
Chip Stock 50V1uFX7R±10%0805MultilayerCeramicCapacitorsMLCC-SMD/SMTROHS 72649
RFQ
LCSC 50V 1uF X7R 10% 0805 Ceramic Capacitors RoHS 177920
  • 20 $0.0410
  • 200 $0.0329
  • 600 $0.0284
  • 3,000 $0.0235
  • 9,000 $0.0212
  • 21,000 $0.0199
$0.0199 / $0.0410 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 3000 867000
  • 3,000 $0.0637
  • 867,000 $0.0588
$0.0588 / $0.0637 Buy Now
Win Source Electronics CAP CER 1UF 50V X7R 0805 876000
  • 1,875 $0.0267
  • 4,000 $0.0250
  • 6,200 $0.0242
  • 8,930 $0.0224
  • 11,575 $0.0216
  • 14,495 $0.0207
$0.0207 / $0.0267 Buy Now

Part Details for GCM21BR71H105KA03L

GCM21BR71H105KA03L CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

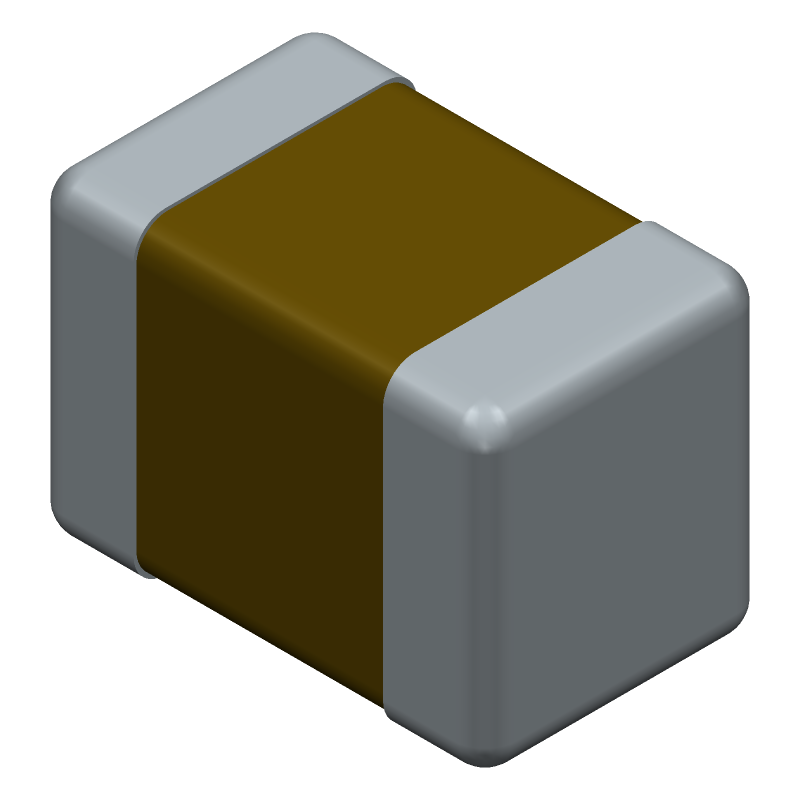

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

GCM21BR71H105KA03L Part Data Attributes

Parametric Data
GCM21BR71H105KA03L Murata Manufacturing Co Ltd
Buy Now Datasheet
Compare Parts:
GCM21BR71H105KA03L Murata Manufacturing Co Ltd Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
Capacitance 1 µF
Capacitor Type Ceramic Capacitor
Dielectric Material Ceramic
Height 1.25 Mm
JESD-609 Code e3
Length 2 Mm
Mounting Feature Surface Mount
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Package Style Smt
Packing Method 180mm Reel W8p4* Embossed Tape
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Reference Standard Aec-Q200
Size Code 2012M/0805
Surface Mount Yes
Temperature Characteristics Code X7R
Temperature Coefficient 15% Ppm/°C
Terminal Finish Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape Wraparound
Width 1.25 Mm

Alternate Parts for GCM21BR71H105KA03L

This table gives cross-reference parts and alternative options found for GCM21BR71H105KA03L. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of GCM21BR71H105KA03L, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
C2012X7R1H105K125AB TDK Corporation $0.0724 Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT GCM21BR71H105KA03L vs C2012X7R1H105K125AB
C0805C105K5RAC KEMET Corporation $0.1290 Capacitor, Ceramic, Chip, General Purpose, 1uF, 50V, ±10%, X7R, 0805 (2012 mm), -55º ~ +125ºC, Bulk GCM21BR71H105KA03L vs C0805C105K5RAC
MT21X105K500LIE Prosperity Dielectrics Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP GCM21BR71H105KA03L vs MT21X105K500LIE
GRM21BR71H105KA12K Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT GCM21BR71H105KA03L vs GRM21BR71H105KA12K
0805H0500105KXB Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP GCM21BR71H105KA03L vs 0805H0500105KXB
VCMS0805105K050XB Vatronics Technologies Limited Check for Price Ceramic Capacitor, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 1uF, 0805 GCM21BR71H105KA03L vs VCMS0805105K050XB
GCH21BR71H105KE01L Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP GCM21BR71H105KA03L vs GCH21BR71H105KE01L
ACC0805X105K050BXY Holy Stone Enterprise Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP GCM21BR71H105KA03L vs ACC0805X105K050BXY
C0805X105K050T Holy Stone Enterprise Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 1uF, 0805, GCM21BR71H105KA03L vs C0805X105K050T
GRM21BR71H105KA12C Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT GCM21BR71H105KA03L vs GRM21BR71H105KA12C
equivalents icon

GCM21BR71H105KA03L Related Parts

GCM21BR71H105KA03L Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for the GCM21BR71H105KA03L is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

  • The ESR of the GCM21BR71H105KA03L is 0.15 ohms, which is relatively low. This means that the capacitor has low energy loss and can handle high-frequency applications with minimal power loss.

  • Yes, the GCM21BR71H105KA03L is designed to withstand vibrations up to 10G (10 Hz to 2 kHz) and is suitable for use in high-vibration environments, such as in automotive or industrial applications.

  • The GCM21BR71H105KA03L has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours without being damaged.

  • The GCM21BR71H105KA03L has a maximum operating temperature of 125°C, making it suitable for use in high-temperature applications, such as in automotive or industrial environments.
