GRM1555C1H181GA01D by: Murata Manufacturing Co Ltd

Capacitor, Ceramic, Chip, General Purpose, 180pF, 50V, ±2%, C0G/NP0, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel/Paper Tape

Part Details for GRM1555C1H181GA01D by Murata Manufacturing Co Ltd

Results Overview of GRM1555C1H181GA01D by Murata Manufacturing Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research

GRM1555C1H181GA01D Information

GRM1555C1H181GA01D by Murata Manufacturing Co Ltd is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for GRM1555C1H181GA01D

Part # Distributor Description Stock Price Buy
DISTI # 94AK3360
Newark Cap, Mlc, 180Pf, C0G/Np0, 50V, 0402, Capacitance:180Pf, Voltage(Dc):50V, Voltage(Ac):-, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 2%, Dielectric Characteristic:C0G/Np0, Product Range:Grm Series Rohs Compliant: Yes |Murata GRM1555C1H181GA01D RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 35410
  • 10 $0.0450
  • 25 $0.0400
  • 50 $0.0340
  • 100 $0.0290
  • 250 $0.0260
  • 500 $0.0230
  • 1,000 $0.0210
$0.0210 / $0.0450 Buy Now
DISTI # GRM1555C1H181GA01D
Avnet Americas Multilayer Ceramic Capacitor, 180 pF, 50 V, ? 2%, C0G (NP0), 0402 [1005 Metric] - Tape and Reel (Alt: GRM1555C1H181GA01D) COO: Japan RoHS: Compliant Min Qty: 50000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 50,000 $0.0092
  • 100,000 $0.0090
  • 200,000 $0.0089
  • 400,000 $0.0087
  • 800,000 $0.0087
$0.0087 / $0.0092 Buy Now
Bristol Electronics   11355
RFQ
DISTI # GRM1555C1H181GA01D
TME Capacitor: ceramic, MLCC, 180pF, 50V, C0G (NP0), ±2%, SMD, 0402 Min Qty: 10000 0
  • 10,000 $0.0063
  • 20,000 $0.0058
$0.0058 / $0.0063 RFQ
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 440
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # GRM1555C1H181GA01D
Avnet Abacus Multilayer Ceramic Capacitor 180 pF 50 V 2 C0G NP0 0402 1005 Metric - Tape and Reel (Alt: GRM1555C1H181GA01D) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 18 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Chip Stock 0402180pF50V±2%ToleranceC0G/NP0MultilayerCeramicCapacitor 125653
RFQ

Part Details for GRM1555C1H181GA01D

GRM1555C1H181GA01D CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

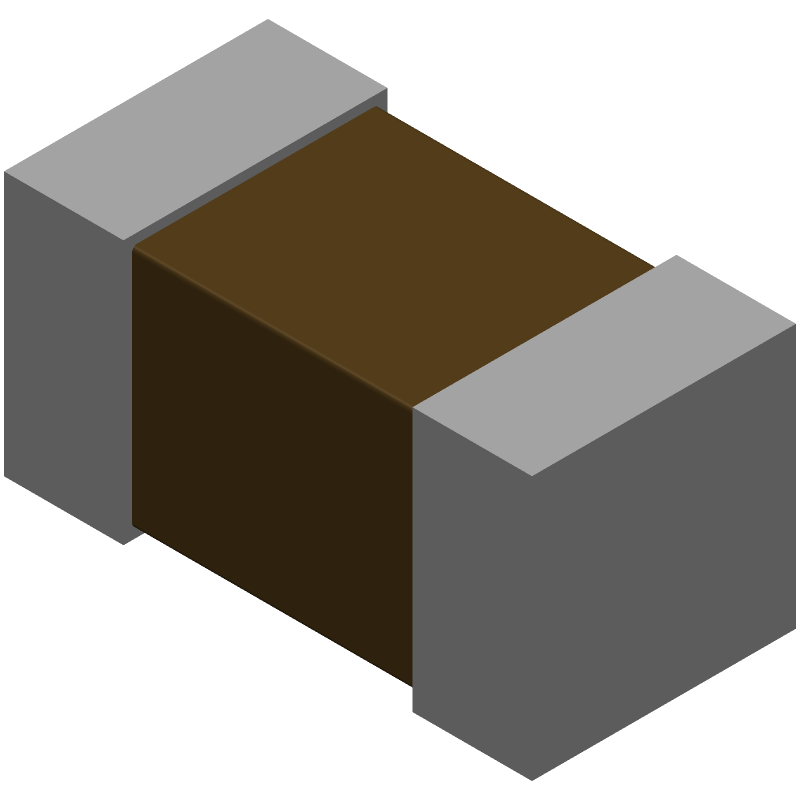

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

GRM1555C1H181GA01D Part Data Attributes

Parametric Data
GRM1555C1H181GA01D Murata Manufacturing Co Ltd
Buy Now Datasheet
Compare Parts:
GRM1555C1H181GA01D Murata Manufacturing Co Ltd Capacitor, Ceramic, Chip, General Purpose, 180pF, 50V, ±2%, C0G/NP0, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel/Paper Tape
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MURATA MANUFACTURING CO LTD
Part Package Code 0402
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
Factory Lead Time 10 Weeks
Samacsys Manufacturer Murata Electronics
Capacitance 0.00018 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.5 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer YES
Negative Tolerance 2%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 2%
Rated (DC) Voltage (URdc) 50 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for GRM1555C1H181GA01D

This table gives cross-reference parts and alternative options found for GRM1555C1H181GA01D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of GRM1555C1H181GA01D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CL05C181GB5ACNP Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, C0G, -/+30ppm/Cel TC, 0.00018uF, 0402, GRM1555C1H181GA01D vs CL05C181GB5ACNP
MT0402CG181G500 MERITEK Electronics Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, C0G, 30ppm/Cel TC, 0.00018uF, Surface Mount, 0402, CHIP GRM1555C1H181GA01D vs MT0402CG181G500
AC0402GPNPO9N181 YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, C0G, 30ppm/Cel TC, 0.00018uF, Surface Mount, 0402, CHIP GRM1555C1H181GA01D vs AC0402GPNPO9N181
CL05C181GB5GNND Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, C0G, -/+30ppm/Cel TC, 0.00018uF, 0402, GRM1555C1H181GA01D vs CL05C181GB5GNND
CALC0402N500A181G-T10 Thin Film Technology Corp (TFT) Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, C0G, 30ppm/Cel TC, 0.00018uF, Surface Mount, 0402, CHIP GRM1555C1H181GA01D vs CALC0402N500A181G-T10
CM05CG181G50KQ KYOCERA Crystal Device Corporation Check for Price CAPACITOR, CERAMIC, MULTILAYER, 50 V, C0G, 0.00018 uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT GRM1555C1H181GA01D vs CM05CG181G50KQ
GHQ04CG181G50NTD Cal-Chip Electronics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, C0G, 30ppm/Cel TC, 0.00018uF, Surface Mount, 0402, CHIP, LEAD FREE GRM1555C1H181GA01D vs GHQ04CG181G50NTD
AC0402GPNPO9BN181 YAGEO Corporation Check for Price Ceramic Capacitor, Ceramic, GRM1555C1H181GA01D vs AC0402GPNPO9BN181
CM05CG181G50KN KYOCERA Crystal Device Corporation Check for Price CAPACITOR, CERAMIC, MULTILAYER, 50 V, C0G, 0.00018 uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT GRM1555C1H181GA01D vs CM05CG181G50KN
C0402T181G5GACTU KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, C0G, -/+30ppm/Cel TC, 0.00018uF, 0402, GRM1555C1H181GA01D vs C0402T181G5GACTU
equivalents icon

GRM1555C1H181GA01D Related Parts

GRM1555C1H181GA01D Frequently Asked Questions (FAQ)

  • The recommended land pattern for the GRM1555C1H181GA01D can be found in the Murata Land Pattern document, which provides guidelines for pad layout and spacing to ensure reliable soldering and assembly.

  • The Equivalent Series Resistance (ESR) of the GRM1555C1H181GA01D is relatively low, which makes it suitable for high-frequency applications. However, it's essential to consider the ESR in the circuit design to ensure optimal performance and minimize energy losses.

  • The GRM1555C1H181GA01D is rated for operation up to 125°C, but its capacitance and ESR may vary with temperature. It's essential to consider the temperature coefficient and derating factors when designing for high-temperature applications.

  • The self-resonant frequency of the GRM1555C1H181GA01D is typically above 100 MHz. When used in filter circuits, it's essential to consider the capacitor's self-resonance to avoid unwanted resonances and ensure optimal filter performance.

  • The recommended soldering profile for the GRM1555C1H181GA01D is a peak reflow temperature of 260°C, with a dwell time of 20-40 seconds above 220°C. It's essential to follow the recommended soldering profile to ensure reliable assembly and minimize the risk of damage.
