H11D1M Information
H11D1M by onsemi is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for H11D1M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78M1361
|
Newark | Optocoupler, Transistor, 4.17Kv, Dip-6, No. Of Channels:1 Channel, Optocoupler Case Style:Dip, No. Of Pins:6Pins, Forward Current If Max:80Ma, Isolation Voltage:4.17Kv, Ctr Min:20%, Collector Emitter Voltage V(Br)Ceo:300V Rohs Compliant: Yes |Onsemi H11D1M RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.2950 / $0.3770 | Buy Now |
|
DISTI #
H11D1M
|
Avnet Americas | Optocoupler, 1 Channel, DIP, 6 Pins, 80 mA, 4.17 kV, 20 % - Bulk (Alt: H11D1M) COO: Thailand RoHS: Compliant Min Qty: 3000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Bulk | 0 |
|
$0.2402 / $0.2589 | Buy Now |
|
DISTI #
H11D1M
|
TME | Optocoupler, THT, Ch: 1, OUT: transistor, Uinsul: 4.17kV, Uce: 300V Min Qty: 1 | 15 |
|
$0.3540 / $0.7800 | Buy Now |
|
DISTI #
H11D1M
|
Avnet Silica | Optocoupler 1 Channel DIP 6 Pins 80 mA 417 kV 20 (Alt: H11D1M) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
H11D1M
|
EBV Elektronik | Optocoupler 1 Channel DIP 6 Pins 80 mA 417 kV 20 (Alt: H11D1M) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 24900 |
|
RFQ | |
|
|
New Advantage Corporation | DIP6 Through Hole Single Channel 300 V 7500 Vrms Phototransistor Optocoupler RoHS: Compliant Min Qty: 1 Package Multiple: 1000 | 2000 |
|
$0.4077 / $0.4417 | Buy Now |
US Tariff Estimator: H11D1M by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for H11D1M
H11D1M CAD Models
-

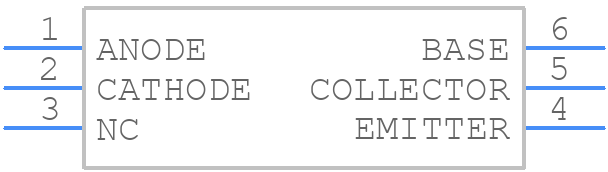

Part Symbol
-

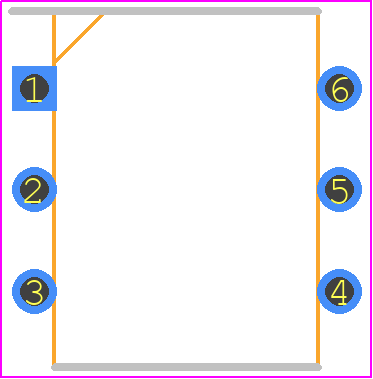

Footprint
-

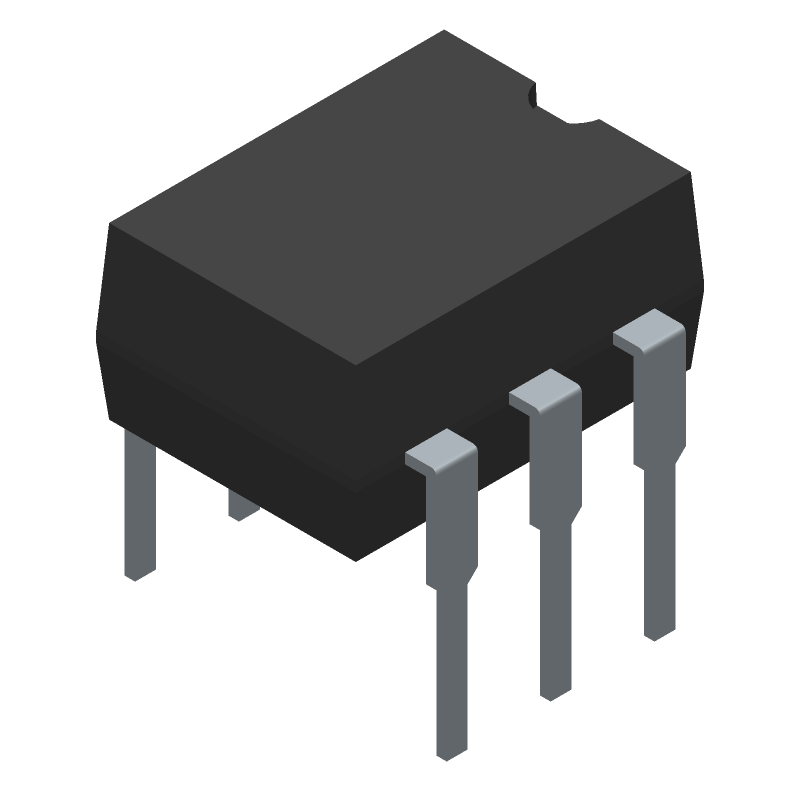

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
H11D1M Part Data Attributes
|
|
H11D1M
onsemi
Buy Now
Datasheet
|
Compare Parts:
H11D1M
onsemi
6-pin DIP High Voltage Phototransistor Output Optocoupler, PDIP-6, 1000-BLKBG
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | PDIP-6 | |
| Manufacturer Package Code | 646BX | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8541.49.80.00 | |
| Factory Lead Time | 15 Weeks | |
| Additional Feature | Ul Approved | |
| Coll-Emtr Bkdn Voltage-Min | 300 V | |
| Configuration | Single | |
| Current Transfer Ratio-Min | 20% | |
| Current Transfer Ratio-Nom | 20% | |
| Forward Current-Max | 0.08 A | |
| Forward Voltage-Max | 1.5 V | |
| Isolation Voltage-Max | 7500 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | Through Hole Mount | |
| Number of Elements | 1 | |
| On-State Current-Max | 0.1 A | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | Transistor Output Optocoupler | |
| Power Dissipation-Max | 0.26 W | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin (Sn) - Annealed |
