HEF40106BT,653 Information
HEF40106BT,653 by Nexperia is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for HEF40106BT,653
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
25M9613
|
Newark | Inverter, Schmitt Trigger, Soic-14, Logic Function:Inverter, No. Of Elements:Hex, No. Of Inputs:1Inputs, No. Of Pins:14Pins, Ic Case/Package:Soic, Product Range:-, Logic Ic Family:Hef4000, Supply Voltage Min:4.5V, No. Of Circuits:6Rohs Compliant: Yes |Nexperia HEF40106BT,653 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.2050 / $0.4730 | Buy Now |
|
DISTI #
HEF40106BT,653
|
Avnet Americas | Inverter Schmitt Trigger, Hex, 1 Input, 14 Pins, SOIC - Tape and Reel (Alt: HEF40106BT,653) COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.1670 / $0.1937 | Buy Now |
|
DISTI #
HEF40106BT.653
|
TME | IC: digital, NOT, Ch: 6, CMOS, SMD, SO14, 3÷15VDC, reel,tape, HEF4000B Min Qty: 1 | 0 |
|
$1.1440 / $1.6400 | RFQ |
|
DISTI #
HEF40106BT,653
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 3881 |
|
$0.1300 / $0.3490 | Buy Now |
|
|
Chip Stock | 1800 |
|
RFQ |
US Tariff Estimator: HEF40106BT,653 by Nexperia
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for HEF40106BT,653
HEF40106BT,653 CAD Models
-

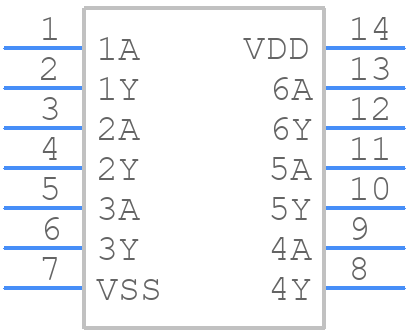

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
HEF40106BT,653 Part Data Attributes
|
|
HEF40106BT,653
Nexperia
Buy Now
Datasheet
|
Compare Parts:
HEF40106BT,653
Nexperia
HEF40106B - Hex inverting Schmitt trigger@en-us SOIC 14-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOIC | |
| Package Description | SOP, | |
| Pin Count | 14 | |
| Manufacturer Package Code | SOT108-1 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1995-01-01 | |
| Samacsys Manufacturer | Nexperia | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR, 13 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 180 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 15 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for HEF40106BT,653
This table gives cross-reference parts and alternative options found for HEF40106BT,653. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of HEF40106BT,653, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HEF40106BT,652 | Nexperia | $0.1906 | HEF40106B - Hex inverting Schmitt trigger@en-us SOIC 14-Pin | HEF40106BT,653 vs HEF40106BT,652 |
| 933406960653 | Nexperia | Check for Price | Inverter, 6-Func, 1-Input, PDSO14 | HEF40106BT,653 vs 933406960653 |
| HEC40106BT | Nexperia | Check for Price | Inverter, 6-Func, 1-Input, PDSO14 | HEF40106BT,653 vs HEC40106BT |
| HEF40106BTD | NXP Semiconductors | Check for Price | IC 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, SO-14, Gate | HEF40106BT,653 vs HEF40106BTD |
| 935200640112 | NXP Semiconductors | Check for Price | IC HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, SOT-108-1, SO-14, Gate | HEF40106BT,653 vs 935200640112 |
| HEF40106BT | Nexperia | Check for Price | Inverter, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO14 | HEF40106BT,653 vs HEF40106BT |
| HEC40106BT,112 | Nexperia | Check for Price | Inverter, 6-Func, 1-Input, PDSO14 | HEF40106BT,653 vs HEC40106BT,112 |
| 935200640118 | NXP Semiconductors | Check for Price | IC HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, SOT-108-1, SO-14, Gate | HEF40106BT,653 vs 935200640118 |
HEF40106BT,653 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the HEF40106BT,653 is 4.5V to 15V.
-
To ensure proper power supply, connect the VCC pin to a stable voltage source, and decouple the power supply with a 100nF capacitor between VCC and GND.
-
The maximum frequency of operation for the HEF40106BT,653 is 10MHz.
-
All input pins should be connected to a valid logic level (VCC or GND) to prevent undefined states. Output pins should be connected to a load impedance of at least 1kΩ to ensure proper signal levels.
-
The maximum power dissipation for the HEF40106BT,653 is 500mW.
