HLG-320H-54 Information
HLG-320H-54 by Mean Well is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 89883-320HLF | Amphenol Communications Solutions | Dubox® 2.54mm, Board to Board Connector, PCB Mounted Receptacle, Right Angle, Through Hole, Top Entry, Double row , 40 Positions, 2.54mm (0.100in) Pitch | |
| 87606-320HLF | Amphenol Communications Solutions | Dubox®, Board To Board Connector, Receptacle, Vertical, Through Hole, Double Row, Top Entry, 40 Positions, 2.54mm (0.100in) Pitch | |
| 69168-320HLF | Amphenol Communications Solutions | FRICTION LATCH HEADER DR-VERT. |
Price & Stock for HLG-320H-54
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
HLG-320H-54
|
Avnet Americas | - Boxed Product (Development Kits) (Alt: HLG-320H-54) COO: Taiwan (Province of China) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 3 Days Container: Box | 0 |
|
$120.4286 | Buy Now |
|
DISTI #
70387582
|
RS | POWER SUPPLY, AC-DC,54V,5.95A,100-305V IN, SEALED, PFC, LED DRIVER, HLG-320H SERIES Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$104.6000 | RFQ |
|
DISTI #
HLG-320H-54
|
TME | Power supply: switching, LED, 320W, 54VDC, 5.95A, 90÷305VAC, IP67 Min Qty: 1 | 0 |
|
$85.0000 / $96.1000 | RFQ |
|
DISTI #
000000000003770742
|
Sager | LED Power Supplies 321.3W 54V 5.95A IP67 W/Cable Min Qty: 1 | 33 |
|
$85.0000 / $96.1000 | Buy Now |
|
|
Neutron USA | LED Power Supplies 321.3W 54V 5.95A IP67 W/Cable | 50 |
|
$230.6400 | Buy Now |
Part Details for HLG-320H-54

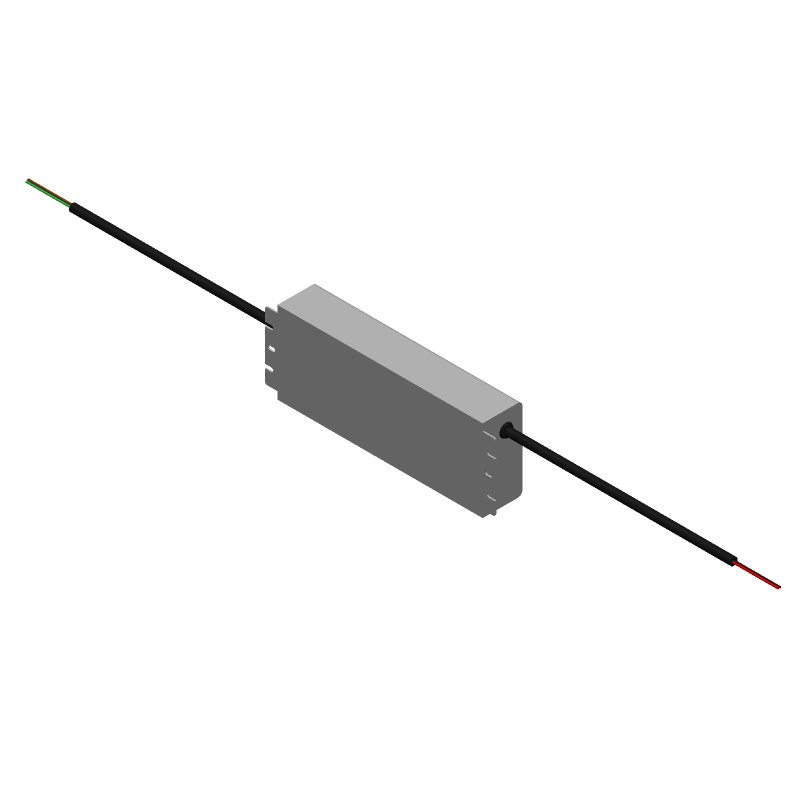

HLG-320H-54 CAD Models
HLG-320H-54 Part Data Attributes
|
|
HLG-320H-54
Mean Well
Buy Now
Datasheet
|
Compare Parts:
HLG-320H-54
Mean Well
1 Output, 321.3W, Hybrid, PACKAGE
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | MEAN WELL ENTERPRISES CO LTD | |
| Package Description | PACKAGE | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 19 Weeks, 3 Days | |
| Samacsys Manufacturer | Mean Well | |
| Analog IC - Other Type | AC-DC LED POWER SUPPLY MODULE | |
| Approvals | CB, CE, EN, IEC, UKCA, UL | |
| Efficiency (Main Output) | 95% | |
| Input Voltage-Max | 305 V | |
| Input Voltage-Min | 90 V | |
| Input Voltage-Nom | 115 V | |
| JESD-30 Code | R-MXMA-X | |
| Length | 252 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Operating Temperature-Max | 90 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 5.95 A | |
| Output Voltage-Max | 48.48 V | |
| Output Voltage-Min | 47.52 V | |
| Output Voltage-Nom | 54 V | |
| Package Body Material | METAL | |
| Package Code | XMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Protections | OVER VOLTAGE; OVER CURRENT; OVER TEMPERATURE; SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.123725 Vrms | |
| Seated Height-Max | 43.8 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | UNSPECIFIED | |
| Terminal Position | UNSPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 321.3 W | |
| Trim/Adjustable Output | NO | |
| Warm-up Time | 2.58 s | |
| Width | 90 mm |
