HMC902LP3E Information
HMC902LP3E by Analog Devices Inc is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for HMC902LP3E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK8349
|
Newark | Rf Amplifier, Lfcsp-Ep, -40 To 85Deg C, Frequency Min:5Ghz, Frequency Max:11Ghz, Gain:19.5Db, Noise Figure Typ:1.8Db, Rf Ic Case Style:Lfcsp-Ep, No. Of Pins:16Pins, Supply Voltage Min:-, Supply Voltage Max:3.5V, Product Range:- Rohs Compliant: Yes |Analog Devices HMC902LP3E RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 21 |
|
$32.5000 / $44.0500 | Buy Now |
|
|
Analog Devices Inc | Low Noise Amplifier SMT,5-10 G Package Multiple: 1 | 33 |
|
$20.5200 / $44.0500 | Buy Now |
|
DISTI #
HMC902LP3E
|
Richardson RFPD | RF & MW LNA RoHS: Compliant Min Qty: 1 | 0 |
|
$33.3900 / $34.3800 | Buy Now |
|
|
Chip Stock | RFAmpChipSingleLowNoiseAmplifier10000MHz4.5V16-PinQFNBulk | 3500 |
|
RFQ | |
|
|
Vyrian | RF & Microwave | 112 |
|
RFQ | |
|
|
Win Source Electronics | IC RF AMP GPS 5GHZ-10GHZ 16QFN / RF Amplifier IC General Purpose 5GHz ~ 10GHz 16-QFN (3x3) | 1100 |
|
$27.4286 / $35.4286 | Buy Now |
US Tariff Estimator: HMC902LP3E by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for HMC902LP3E
HMC902LP3E CAD Models
-

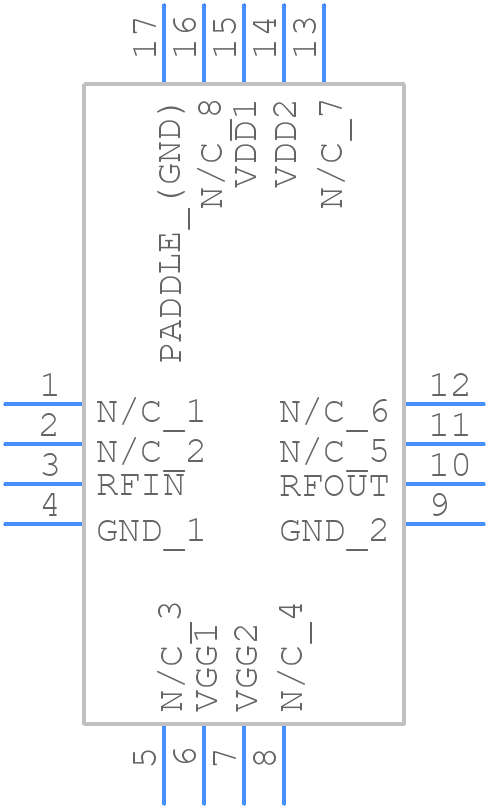

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
HMC902LP3E Part Data Attributes
|
|
HMC902LP3E
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
HMC902LP3E
Analog Devices Inc
HMC902LP3E
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | 3 X 3 Mm, Rohs Compliant, Plastic, Smt-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | HCP-16-1 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Characteristic Impedance | 50 Ω | |
| Construction | Component | |
| Gain | 17 Db | |
| Input Power-Max (CW) | 10 Dbm | |
| JESD-609 Code | e3 | |
| Mounting Feature | Surface Mount | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Frequency-Max | 10000 Mhz | |
| Operating Frequency-Min | 5000 Mhz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Equivalence Code | LCC16,.12SQ,20 | |
| Power Supplies | 3.5 V | |
| RF/Microwave Device Type | Wide Band Low Power | |
| Supply Current-Max | 110 Ma | |
| Surface Mount | Yes | |
| Technology | Gaas | |
| Terminal Finish | Matte Tin (Sn) |
Alternate Parts for HMC902LP3E
This table gives cross-reference parts and alternative options found for HMC902LP3E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of HMC902LP3E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SKY65119-21 | Skyworks Solutions Inc | Check for Price | Narrow Band Medium Power Amplifier, 700MHz Min, 800MHz Max, 8 X 8 MM, ROHS COMPLIANT, SMT, MCM-12 | HMC902LP3E vs SKY65119-21 |
| SKY65111-348LF | Skyworks Solutions Inc | Check for Price | Narrow Band Medium Power Amplifier, 600MHz Min, 1100MHz Max, 1 Func, ROHS COMPLIANT, ULTRA SMALL PACKAGE-16 | HMC902LP3E vs SKY65111-348LF |
| SKY65105-21 | Skyworks Solutions Inc | Check for Price | Narrow Band Medium Power Amplifier, 1700MHz Min, 2200MHz Max, 1 Func, 8 X 8 MM, ROHS COMPLIANT, SMT, MCM-12 | HMC902LP3E vs SKY65105-21 |
| SKY65146-21 | Skyworks Solutions Inc | Check for Price | Narrow Band Medium Power Amplifier, 806MHz Min, 849MHz Max, 1 Func, GAAS, 10.04 X 14.04 MM, ROHS COMPLIANT PACKAGE-28 | HMC902LP3E vs SKY65146-21 |
HMC902LP3E Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
-
The HMC902LP3E requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
-
The HMC902LP3E can handle input powers up to +10 dBm. Exceeding this may result in compression or damage to the device.
-
Optimize the device for low noise figure by ensuring the input is properly matched to 50 ohms, and that the device is operated at the recommended bias current.
-
The recommended operating temperature range for the HMC902LP3E is -40°C to +85°C. Operating outside this range may affect device performance and reliability.
