Part Details for ICL7660CBAZ-T by Renesas Electronics Corporation
Results Overview of ICL7660CBAZ-T by Renesas Electronics Corporation
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (8 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
ICL7660CBAZ-T Information
ICL7660CBAZ-T by Renesas Electronics Corporation is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ICL7660CBAZ-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2983597RL
|
Farnell | DC-DC CHARGE PUMP, DOUBLER/INV, 70DEG C COO: CN RoHS: Compliant Min Qty: 100 Lead time: 19 Weeks, 1 Days Container: Reel | 55 |
|
$1.2982 / $2.0651 | Buy Now |
|
DISTI #
2983597
|
Farnell | DC-DC CHARGE PUMP, DOUBLER/INV, 70DEG C COO: CN RoHS: Compliant Min Qty: 1 Lead time: 19 Weeks, 1 Days Container: Cut Tape | 55 |
|
$1.2982 / $3.8933 | Buy Now |
|
DISTI #
ICL7660CBAZ-T
|
Avnet Americas | - Tape and Reel (Alt: ICL7660CBAZ-T) COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$1.1892 / $1.2571 | Buy Now |
|
DISTI #
ICL7660CBAZ-T
|
TME | PMIC, DC/DC converter, Uin: 1.5÷10VDC, Uout: -10÷24VDC, 45mA, SO8 Min Qty: 1 | 0 |
|
$1.4400 / $3.5000 | RFQ |
|
DISTI #
ICL7660CBAZ-T
|
Avnet Silica | (Alt: ICL7660CBAZ-T) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
ICL7660CBAZ-T
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1048 |
|
$1.0000 / $2.3400 | Buy Now |
|
|
Chip Stock | InvertingRoHSCompliantAdjustableDUALSwitchingRegulatorIC70C10kHz165muA3.9mm | 6500 |
|
RFQ | |
|
|
LCSC | Inverted 10kHz -10V-1.5V SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS | 333 |
|
$1.2822 / $1.6843 | Buy Now |
US Tariff Estimator: ICL7660CBAZ-T by Renesas Electronics Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ICL7660CBAZ-T
ICL7660CBAZ-T CAD Models
-

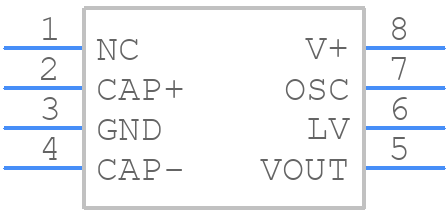

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ICL7660CBAZ-T Part Data Attributes
|
|
ICL7660CBAZ-T
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ICL7660CBAZ-T
Renesas Electronics Corporation
CMOS Voltage Converters, SOICN, /Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOICN | |
| Package Description | SOP, SOP8,.24 | |
| Pin Count | 8 | |
| Manufacturer Package Code | M8.15 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Analog IC - Other Type | SWITCHED CAPACITOR CONVERTER | |
| Input Voltage-Max | 10 V | |
| Input Voltage-Min | 1.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Voltage-Max | -10 V | |
| Output Voltage-Min | -1.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.24 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 0.5 mA | |
| Surface Mount | YES | |
| Switcher Configuration | DOUBLER | |
| Switching Frequency-Max | 10 kHz | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for ICL7660CBAZ-T
This table gives cross-reference parts and alternative options found for ICL7660CBAZ-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ICL7660CBAZ-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ICL7660CBAZ | Intersil Corporation | Check for Price | CMOS Voltage Converters; PDIP8, SOIC8; Temp Range: 0° to 70° | ICL7660CBAZ-T vs ICL7660CBAZ |
| ICL7660CBAZ-T | Intersil Corporation | Check for Price | CMOS Voltage Converters; PDIP8, SOIC8; Temp Range: 0° to 70° | ICL7660CBAZ-T vs ICL7660CBAZ-T |
ICL7660CBAZ-T Frequently Asked Questions (FAQ)
-
The maximum input voltage is 12V, but it's recommended to keep it below 10V for optimal performance and to prevent overheating.
-
To ensure a stable output voltage, make sure to use a suitable output capacitor (e.g., 10uF) and a minimum load of 10mA. Also, keep the input voltage within the recommended range.
-
The quiescent current is typically around 5mA, but it can vary depending on the input voltage and output load.
-
The ICL7660CBAZ-T is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to prevent overheating and ensure reliability.
-
Use a voltage transient suppressor (TVS) or a zener diode in parallel with the input capacitor to protect the regulator from voltage spikes and transients.
