ID82C54 Information

ID82C54 by Renesas Electronics Corporation is a Timer or RTC.
Timers or RTCs are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Part #	Distributor	Description	Stock	Price	Buy
ID82C54 DISTI # 84AC6779	Newark	Cmos Prog Interval Timer, -40 To 85Deg C, Frequency:8Mhz, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Digital Ic Case:Dip, No. Of Pins:24Pins, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Product Range:-, Rohs Compliant: No \|Renesas ID82C54 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk	69	1 $63.4400 5 $58.0700 10 $52.6900 25 $50.0100	$50.0100 / $63.4400	Buy Now
ID82C54 DISTI # ID82C54	Avnet Americas	- Rail/Tube (Alt: ID82C54) COO: United States of America (the) RoHS: Not Compliant Min Qty: 165 Package Multiple: 165 Lead time: 18 Weeks, 0 Days Container: Tube	3571 Factory Stock	165 $57.1445 330 $55.9622 660 $54.7799 990 $53.5976 1,320 $52.4153	$52.4153 / $57.1445	Buy Now
ID82C54 DISTI # ID82C54	IBS Electronics	ID82C54,RENESAS,82C54 SERIES 8 V 10 UA THROUGH HOLE PROGRAMMABLE TIMER - CERDIP-24 Min Qty: 165 Package Multiple: 1	0	165 $64.9180	$64.9180	Buy Now
ID82C54 DISTI # ID82C54	Avnet Silica	(Alt: ID82C54) RoHS: Not Compliant Min Qty: 165 Package Multiple: 165 Lead time: 20 Weeks, 0 Days	Silica - 0			Buy Now

US Tariff Estimator: ID82C54 by Renesas Electronics Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

Part Number: ID82C54

Manufacturer: Renesas Electronics Corporation

COO:

HTS Code:

Import Value:

Estimator Results:

		Tariff Calculation
	Import Value	$.
	Total Duty	$.
	Total Estimate	$.
		$.
Based on tariff data from

Part Details for ID82C54

ID82C54 CAD Models

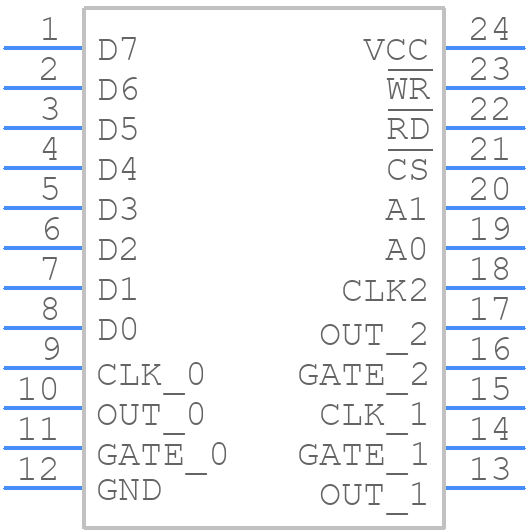

Part Symbol

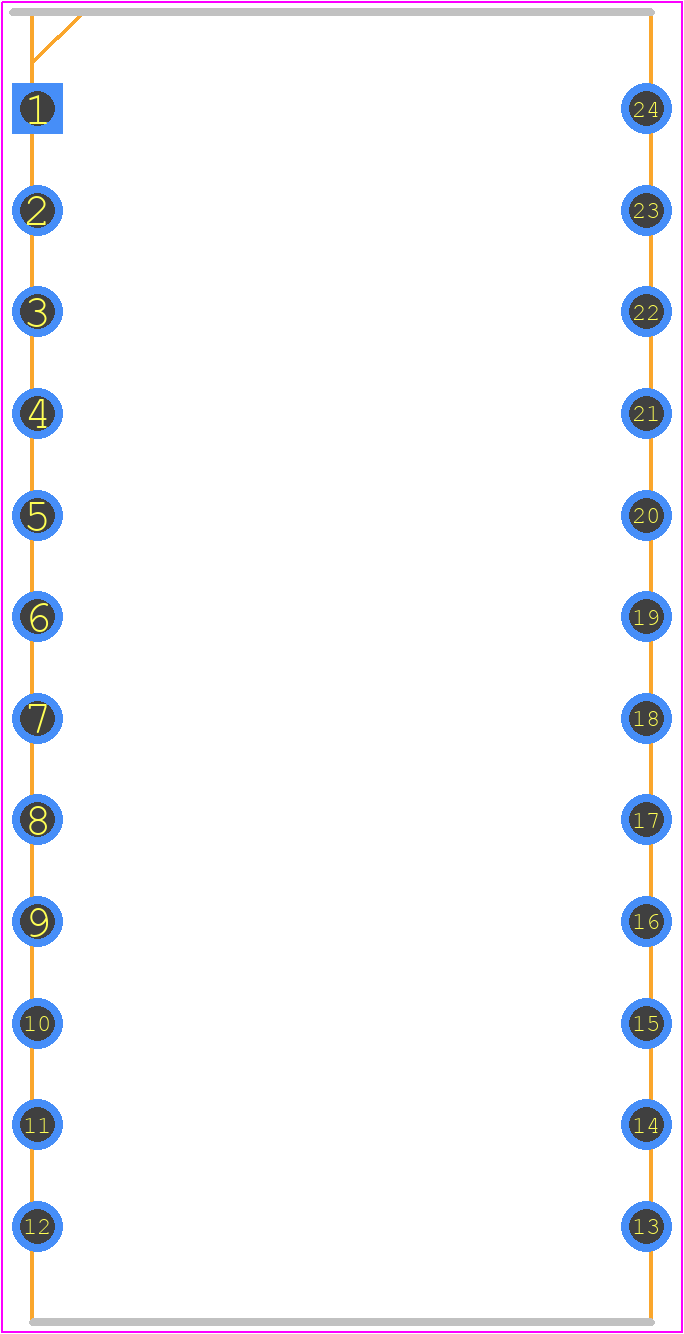

Footprint

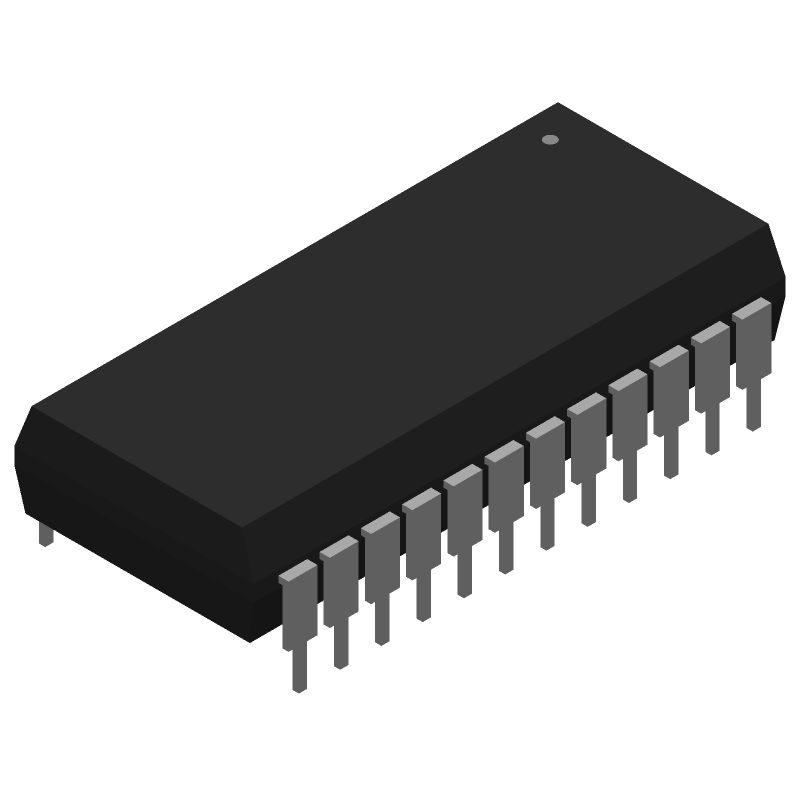

3D Model

Available Download Formats

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ID82C54 Part Data Attributes

Parametric Data

Show differences only	ID82C54 Renesas Electronics Corporation Buy Now Datasheet	Buy Now	Compare Parts: ID82C54 Renesas Electronics Corporation CMOS Programmable Interval Timer, CERDIP, /Tube

Pbfree Code	No
Rohs Code	No
Part Life Cycle Code	Active
Part Package Code	CERDIP
Package Description	Dip-24
Pin Count	24
Manufacturer Package Code	F24.6
Reach Compliance Code	Not Compliant
ECCN Code	EAR99
HTS Code	8542.39.00.01
Factory Lead Time	18 Weeks
Clock Frequency-Max	0.032 Mhz
External Data Bus Width	8
Information Access Method	Parallel, Direct Address
JESD-30 Code	R-CDIP-T24
JESD-609 Code	e0
Number of Bits	16
Number of Terminals	24
Number of Timers	3
Operating Temperature-Max	85 °C
Operating Temperature-Min	-40 °C
Package Body Material	Ceramic, Metal-Sealed Cofired
Package Code	DIP
Package Shape	Rectangular
Package Style	In-Line
Qualification Status	Not Qualified
Seated Height-Max	5.72 Mm
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	No
Technology	Cmos
Temperature Grade	Industrial
Terminal Finish	Tin Lead
Terminal Form	Through-Hole
Terminal Pitch	2.54 Mm
Terminal Position	Dual
Width	15.24 Mm
uPs/uCs/Peripheral ICs Type	Timer, Programmable
