Part Details for IHLP4040DZER100M11 by Vishay Intertechnologies

Results Overview of IHLP4040DZER100M11 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

IHLP4040DZER100M11 Information

IHLP4040DZER100M11 by Vishay Intertechnologies is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for IHLP4040DZER100M11

Part # Distributor Description Stock Price Buy
DISTI # 81AC8837
Newark Ihlp-4040Dz-11 10 20% Er E3 Rohs Compliant: Yes |Vishay IHLP4040DZER100M11 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 13000
  • 500 $0.7720
  • 1,000 $0.7320
  • 2,000 $0.7230
  • 3,000 $0.7140
$0.7140 / $0.7720 Buy Now
DISTI # 47M0988
Newark Inductor, Shielded, 10Uh, 7.5A, Inductance:100Μh, Rms Current (Irms):2.5A, Inductor Construction:Shielded, Saturation Current (Isat):2.25A, Product Range:Ihlp-4040Dz-11 Series, Inductor Case/Package:-, Dc Resistance Max:0.27Ohm Rohs Compliant: Yes |Vishay IHLP4040DZER100M11 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 1 Container: Reel 1000
  • 500 $0.5070
  • 1,000 $0.5070
  • 2,000 $0.5070
  • 3,000 $0.5070
$0.5070 Buy Now
DISTI # 56AC1043
Newark Inductor, Shielded, 10Uh, 7.5A, Inductance:10Μh, Rms Current (Irms):7.5A, Inductor Construction:Shielded, Saturation Current (Isat):7.1A, Product Range:Ihlp-4040Dz-11 Series, Inductor Case/Package:-, Dc Resistance Max:0.0305Ohm Rohs Compliant: Yes |Vishay IHLP4040DZER100M11 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 55
  • 1 $1.2100
  • 10 $1.0700
  • 25 $1.0400
  • 50 $0.9770
$0.9770 / $1.2100 Buy Now
DISTI # IHLP4040DZER100M11
Avnet Americas Power Inductor (SMD), 10 ?H, 7.5 A, Shielded, 7.1 A, IHLP-4040DZ-11 Series - Tape and Reel (Alt: IHLP4040DZER100M11) COO: China RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 10 Weeks, 0 Days Container: Reel 13000
  • 500 $0.3671
  • 2,500 $0.3473
  • 28,000 $0.3382
  • 56,000 $0.3295
  • 112,000 $0.3212
$0.3212 / $0.3671 Buy Now
DISTI # 47M0988
Avnet Americas Power Inductor (SMD), 10 ?H, 7.5 A, Shielded, 7.1 A, IHLP-4040DZ-11 Series - Tape and Reel (Alt: 47M0988) COO: China RoHS: Compliant Min Qty: 500 Package Multiple: 500 Container: Reel 1000 Partner Stock
  • 1 $0.7570
  • 1,000 $0.7320
  • 2,000 $0.7230
  • 3,000 $0.7140
  • 5,000 $0.7990
$0.7140 / $0.7990 Buy Now
DISTI # 56AC1043
Avnet Americas Power Inductor (SMD), 10 ?H, 7.5 A, Shielded, 7.1 A, IHLP-4040DZ-11 Series - Product that comes on tape, but is not reeled (Alt: 56AC1043) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack 105 Partner Stock
  • 1 $0.9770
$0.9770 Buy Now
DISTI # IHLP4040DZER100M11
TME Inductor: wire, SMD, 10uH, 7.5A, 27.8mΩ, ±20%, IHLP, 10.3x10.3x4mm Min Qty: 1 480
  • 1 $1.0500
  • 100 $0.9400
$0.9400 / $1.0500 Buy Now
ComSIT USA AVAILABLE EU 567
RFQ
NAC SMD INDUCTOR, HIGH CURRENT, 13"-REEL, COC RoHS: Compliant Min Qty: 500 Package Multiple: 500 0
RFQ
DISTI # IHLP4040DZER100M11
Avnet Abacus Power Inductor SMD 10 H 75 A Shielded 71 A IHLP4040DZ11 Series - Tape and Reel (Alt: IHLP4040DZER100M11) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 25 Weeks, 0 Days Container: Reel Abacus - 67500
Buy Now
Chip Stock InductorPowerShieldedWirewound10uH20%100KHzPowderedIron7.5A30.5mOhmDCR4040T/R 8671
RFQ
LCSC 10uH 20% Molded Inductor 7.1A 27.8m SMD10.8x10.2mm Fixed Inductors RoHS 515
  • 1 $0.9096
  • 10 $0.7255
  • 30 $0.6343
  • 100 $0.5430
  • 500 $0.4889
  • 1,000 $0.4595
$0.4595 / $0.9096 Buy Now
DISTI # IHLP4040DZER100M11
Maritex Power Inductors – SMD, VISHAY, IHLP4040DZER100M11, 10 µH, 30.5 mOhm, 100 kHz, 20 % Min Qty: 1 Package Multiple: 1 150
  • 1 $1.3820
  • 10 $1.0440
  • 50 $0.9630
  • 100 $0.9090
  • 250 $0.8680
  • 500 $0.8410
  • 1,000 $0.8200
$0.8200 / $1.3820 Buy Now

US Tariff Estimator: IHLP4040DZER100M11 by Vishay Intertechnologies

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

IHLP4040DZER100M11
Vishay Intertechnologies
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for IHLP4040DZER100M11

IHLP4040DZER100M11 CAD Models

  • Part Symbol

    schematic symbol

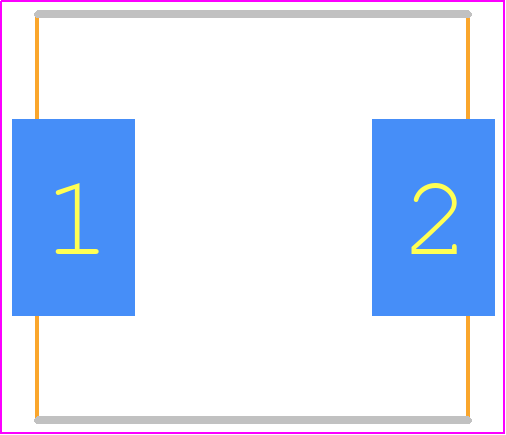

  • Footprint

    pcb footprint

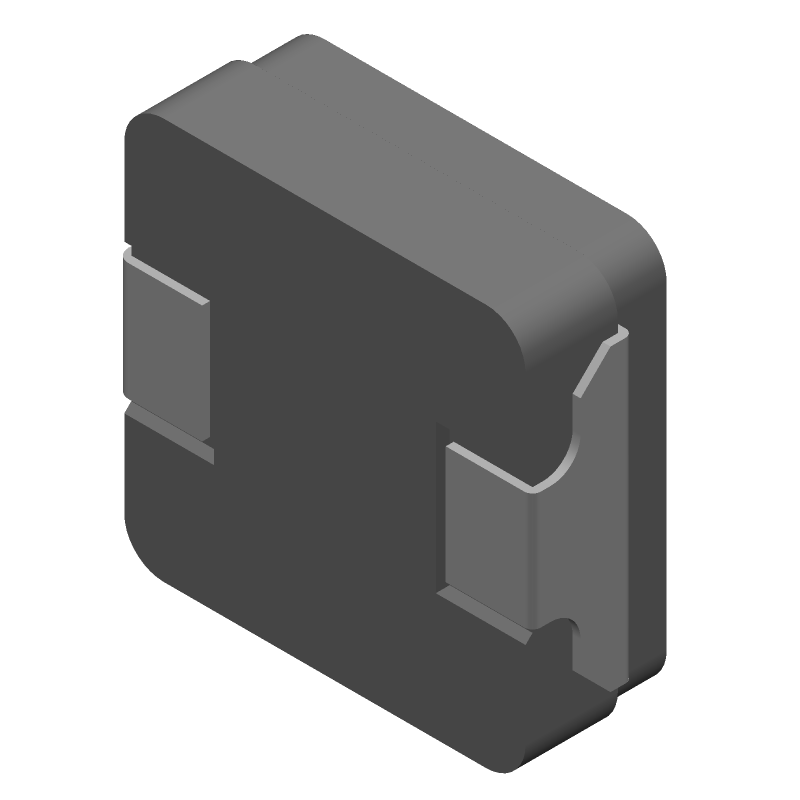

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IHLP4040DZER100M11 Part Data Attributes

Parametric Data
IHLP4040DZER100M11 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
IHLP4040DZER100M11 Vishay Intertechnologies General Purpose Inductor, 10uH, 20%, 1 Element, Composite-Core, SMD, 4240, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8504.50.80.00
Samacsys Manufacturer Vishay
Case/Size Code 4040
Construction Rectangular
Core Material COMPOSITE
DC Resistance 0.0305 Ω
Inductance-Nom (L) 10 µH
Inductor Application POWER INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
JESD-609 Code e3
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 4 mm
Package Length 10.16 mm
Package Style SMT
Package Width 10.16 mm
Packing Method TR, 13 Inch
Rated Current-Max 7.5 A
Shape/Size Description RECTANGULAR PACKAGE
Shielded YES
Surface Mount YES
Terminal Finish MATTE TIN OVER NICKEL
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 0.1 MHz
Tolerance 20%

Alternate Parts for IHLP4040DZER100M11

This table gives cross-reference parts and alternative options found for IHLP4040DZER100M11. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IHLP4040DZER100M11, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IHLP4040DZER100M1A Vishay Intertechnologies $1.3031 General Purpose Inductor, 10uH, 20%, 1 Element, Composite-Core, SMD, 4240, CHIP IHLP4040DZER100M11 vs IHLP4040DZER100M1A
IHLP4040DZER100M1A Vishay Dale Check for Price General Fixed Inductor, 1 ELEMENT, 10 uH, COMPOSITE-CORE, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 4040, HALOGEN FREE AND ROHS COMPLIANT IHLP4040DZER100M11 vs IHLP4040DZER100M1A
IHLP4040DZER100M11 Vishay Dale Check for Price General Fixed Inductor, 1 ELEMENT, 10 uH, COMPOSITE-CORE, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 4040, HALOGEN FREE AND ROHS COMPLIANT IHLP4040DZER100M11 vs IHLP4040DZER100M11
