IHLP4040DZER6R8M01 Information
IHLP4040DZER6R8M01 by Vishay Intertechnologies is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for IHLP4040DZER6R8M01
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y7982
|
Newark | Inductor, Shielded, 6.8Uh, 8A, 20%, Inductance:6.8Μh, Rms Current (Irms):8A, Inductor Construction:Shielded, Saturation Current (Isat):13.5A, Product Range:Ihlp-4040Dz-01 Series, Inductor Case/Package:-, Dc Resistance Max:0.0233Ohmrohs Compliant: Yes |Vishay IHLP4040DZER6R8M01 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 158 |
|
$1.0500 | Buy Now |
|
DISTI #
52M3794
|
Newark | Surface Mount Power Inductor, Ihlp-4040Dz-01 Series, 6.8 H, 20%, Shielded, 0.0233 Ohm, 8 A |Vishay IHLP4040DZER6R8M01 RoHS: Not Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.7460 / $0.9480 | Buy Now |
|
DISTI #
IHLP4040DZER6R8M01
|
Avnet Americas | - Tape and Reel (Alt: IHLP4040DZER6R8M01) COO: China RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 10 Weeks, 0 Days Container: Reel | 500 |
|
$0.3395 / $0.3671 | Buy Now |
|
DISTI #
81Y7982
|
Avnet Americas | - Product that comes on tape, but is not reeled (Alt: 81Y7982) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 158 Partner Stock |
|
$0.7650 / $1.1700 | Buy Now |
|
|
Bristol Electronics | 97 |
|
RFQ | ||
|
|
NAC | SMD INDUCTOR, HIGH CURRENT, 13"-REEL, COC RoHS: Compliant Min Qty: 500 Package Multiple: 500 | 0 |
|
RFQ | |
|
DISTI #
IHLP4040DZER6R8M01
|
Avnet Abacus | - Tape and Reel (Alt: IHLP4040DZER6R8M01) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 25 Weeks, 0 Days Container: Reel | Abacus - 6000 |
|
Buy Now | |
|
DISTI #
IHLP4040DZER6R8M01
|
Avnet Asia | (Alt: IHLP4040DZER6R8M01) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks, 0 Days | 0 |
|
RFQ | |
|
|
LCSC | 8A 6.8uH 20% 13.5A 23.3m SMD10.8x10.2mm Fixed Inductors RoHS | 700 |
|
$0.4876 / $0.9565 | Buy Now |
US Tariff Estimator: IHLP4040DZER6R8M01 by Vishay Intertechnologies
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for IHLP4040DZER6R8M01
IHLP4040DZER6R8M01 CAD Models
-
Part Symbol
-

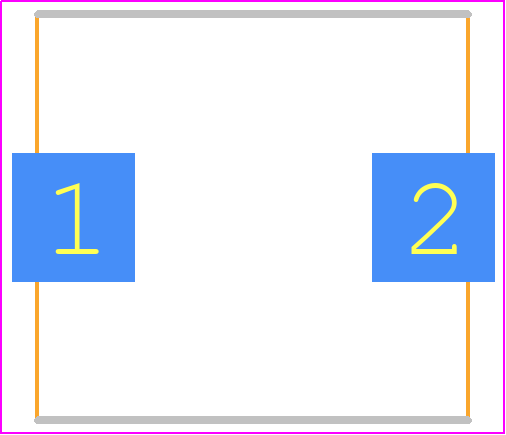

Footprint
-

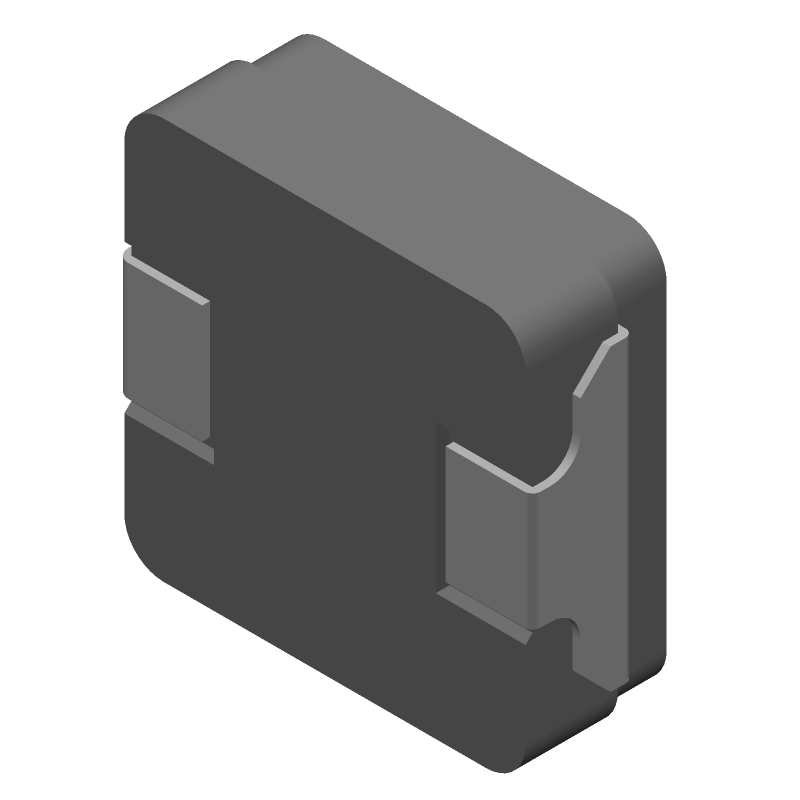

3D Model
