Findchips Blog
Relays / RF Relays / IM03JR
Datasheets
IM03JR by:
TE Connectivity

RF RELAY, DPDT, MOMENTARY, 0.028A (COIL), 5VDC (COIL), 140mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

Part Details for IM03JR by TE Connectivity

Results Overview of IM03JR by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

IM03JR Information

IM03JR by TE Connectivity is an RF Relay.
RF Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for IM03JR

Part # Distributor Description Stock Price Buy
DISTI # 82X7260
Newark Signal Relay, Im Series, Non Latching, Dpdt, Smd, 2 A, 5 Vdc Rohs Compliant: Yes |Axicom Te Connectivity IM03JR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 498
  • 1 $3.2400
  • 10 $2.9400
  • 25 $2.6800
  • 50 $2.3000
  • 100 $1.9200
$1.9200 / $3.2400 Buy Now
DISTI # IM03JR
Avnet Americas - Tape and Reel (Alt: IM03JR) COO: Portugal RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 54 Weeks, 1 Days Container: Reel 0
RFQ
DISTI # 82X7260
Avnet Americas (Alt: 82X7260) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 0
  • 1 $3.2100
  • 10 $2.9100
  • 25 $2.6500
  • 50 $2.2700
  • 100 $1.8900
$1.8900 / $3.2100 Buy Now
TE Connectivity IM03JR=IM RELAY 140mW 5V Relay & Contactor Type: General Purpose Signal Relay Current Type: DC Coil Magnetic System: Polarized, Monostable Contact Arrangement: 2 Form C DPDT-CO Contact Current Rating: 2 A General Purpose Signal Relay DC Polarized, Monostable 2 Form C DPDT-CO | Standard Signal Relay 2 Form C & 2 Co Cont | Part Number: IM03JR | Internal Number: 1-1462037-6 | Alias Number: CZ4348-000 | TE Connectivity RoHS: Compliant Min Qty: 1 2015
  • 1 $7.1600
  • 10 $6.9800
  • 25 $6.8000
  • 50 $6.6200
  • 100 $6.4400
  • 250 $6.2600
  • 500 $6.0800
  • 1,000 $5.9100
$5.9100 / $7.1600 Buy Now
DISTI # AMP1-1462037-6
Heilind Electronics IM03JR IM RELAY 140 MW 5V Americas - 62250 in Stock
  • 1 $1.0259
  • 25 $0.9984
  • 50 $0.9725
$0.9725 / $1.0259 Buy Now
Bristol Electronics   Min Qty: 2 1000
  • 2 $3.0000
  • 8 $2.2500
  • 24 $1.8750
  • 81 $1.1250
  • 268 $1.0500
  • 716 $0.9900
$0.9900 / $3.0000 Buy Now
Bristol Electronics   Min Qty: 3 249
  • 3 $2.3064
  • 10 $1.7298
  • 30 $1.4415
  • 106 $0.8649
$0.8649 / $2.3064 Buy Now
DISTI # IM03JR
TME Relay: electromagnetic, DPDT, Ucoil: 5VDC, 2A, 0.5A/125VAC, IM, SMT Min Qty: 1 755
  • 1 $3.0600
  • 20 $2.7500
  • 50 $2.7000
  • 500 $2.0400
  • 1,000 $1.5900
  • 2,000 $1.5600
$1.5600 / $3.0600 Buy Now
DISTI # IM03JR
IBS Electronics IM03JR BY TE CONNECTIVITY / POTTER-BRUMFIELD IS A COMPACT RELAY MODULE FEATURING HIGH SWITCHING CAPACITY 10A CURRENT RATING 250VAC VOLTAGE COIL VOLTAGE OPTIONS AND DURABLE CONSTRUCTION FOR RELIABLE AUTOMATION AND CONTROL APPLICATIONS. Min Qty: 1000 Package Multiple: 1 45437
  • 250 $2.9960
  • 500 $2.8700
  • 1,000 $3.1640
  • 1,000 $2.7300
  • 3,000 $2.5340
  • 5,000 $2.2875
  • 10,000 $1.9750
$1.9750 / $3.1640 Buy Now
DISTI # AMP1-1462037-6
Interstate Connecting Components IM03JR IM RELAY 140 MW 5V 14525
  • 1 $1.0259
  • 25 $0.9984
  • 50 $0.9725
$0.9725 / $1.0259 Buy Now
DISTI # 000000000003012928
Sager High Frequency / RF Relays 140 mW 5 V 10 Min Qty: 1000 0
  • 1,000 $3.4500
$3.4500 Buy Now
Chip 1 Exchange INSTOCK 42900
RFQ
DISTI # IM03JR
FDH Electronics Relays 0
Buy Now RFQ
LCSC 2A 5V SMD10x6mm Signal Relays RoHS 24
  • 1 $2.7473
  • 10 $2.3305
  • 30 $2.0716
  • 100 $1.8050
  • 500 $1.6839
  • 1,000 $1.6318
$1.6318 / $2.7473 Buy Now

US Tariff Estimator: IM03JR by TE Connectivity

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

IM03JR
TE Connectivity
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for IM03JR

IM03JR CAD Models

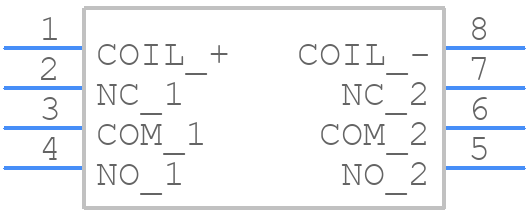

  • Part Symbol

    schematic symbol

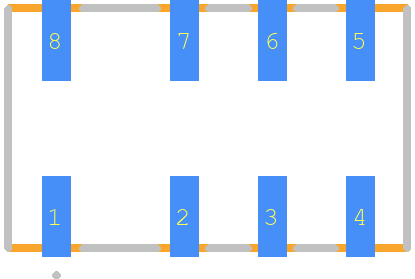

  • Footprint

    pcb footprint

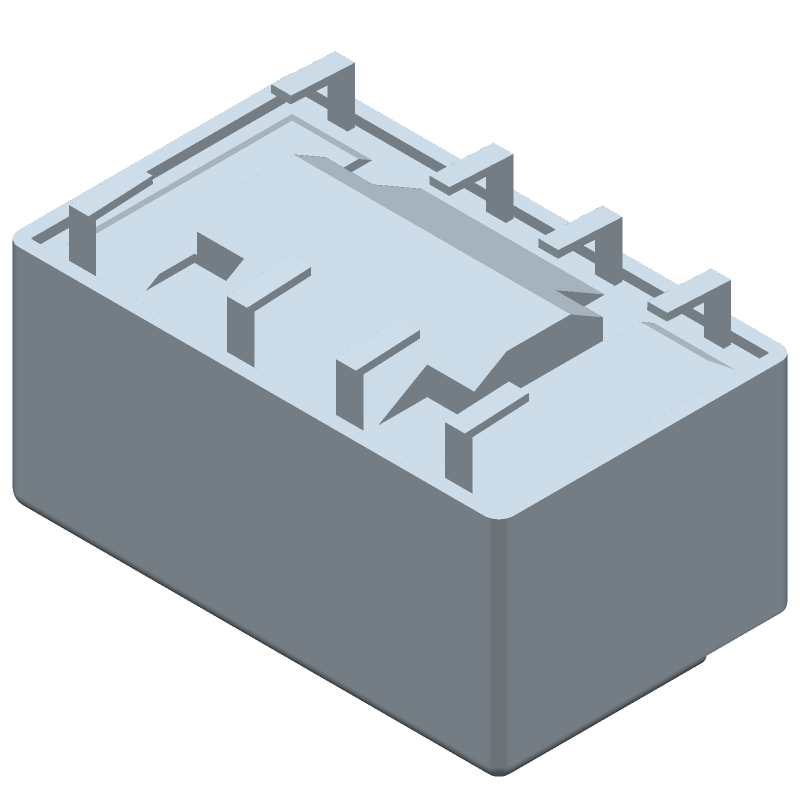

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IM03JR Part Data Attributes

Parametric Data
IM03JR TE Connectivity
Buy Now Datasheet
Compare Parts:
IM03JR TE Connectivity RF RELAY, DPDT, MOMENTARY, 0.028A (COIL), 5VDC (COIL), 140mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Package Description Rohs Compliant
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.49.00.50
Factory Lead Time 54 Weeks, 1 Day
Additional Feature Low Profile
Body Breadth 6 Mm
Body Height 5.65 Mm
Body Length or Diameter 10 Mm
Coil Current(DC)-Max 0.028 A
Coil Operate Voltage(DC) 3.5 V
Coil Power 140 Mw
Coil Release Voltage(DC) 0.5 V
Coil Resistance 178 Ω
Coil Voltage(DC)-Max 5 V
Coil Voltage-Nom 5 V
Coil/Input Supply Type Dc
Contact (AC) Max Power Rating R Load 62.5va@250vac
Contact (AC) Max Rating R Load 2a@250vac
Contact Current(AC)-Max 2 A
Contact Current(DC)-Max 2 A
Contact (DC) Max Power Rating R Load 60w@220vdc
Contact (DC) Max Rating R Load 2a@220vdc
Contact Resistance 50 MΩ
Contact Voltage(AC)-Max 250 V
Contact Voltage(DC)-Max 220 V
Contact/Output Supply Type Ac/Dc
Dielectric Strength Between Coil and Contacts 1800 Vrms
Dielectric Strength Between Open Contacts 750 Vrms
Electrical Life 100000 Cycle(S)
End Contact Material Lead Ruthenium
End Contact Plating Gold Alloy
Input Switching Control Type Random
Insertion Loss-Max -0.33 Db
Insulation Resistance 1000000000000 Ω
Isolation-Max -18.8 Db
Mounting Feature Panel Mount
Number of Terminals 8
Operate Time 8 Ms
Operating Frequency-Max 900 Mhz
Operating Frequency-Min 100 Mhz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Packing Method Tr
Physical Dimension 10 X 6 X 5.65
Reference Standard Cecc; Csa; Iec; Ul
Relay Action Momentary
Relay Form 2 Form C
Relay Function Dpdt
Relay Type Rf Relay
Release Time 10 Ms
Sealing Ip67
Surface Mount No
Switching Time 18 Ms
Termination Type Solder/Quick Connect
VSWR 1.49
Weight 0.75 G

Alternate Parts for IM03JR

This table gives cross-reference parts and alternative options found for IM03JR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IM03JR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1-1462037-6 TE Connectivity $1.5973 RF RELAY, DPDT, MOMENTARY, 0.028A (COIL), 5VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT IM03JR vs 1-1462037-6
equivalents icon

IM03JR Related Parts

Share by Email

Something went wrong!
Please enter a valid e-mail address
Email sent!
Recipient Email:
Add a recipient
Hello!

We are passing along some cool findings on Findchips sent to you from .

The data is for IM03JR by TE Connectivity.
They’ve also added a data comparison to this page with by .

Click on the link below to check it out on Findchips.com.

Update Alert Settings for: IM03JR by TE Connectivity

Select Manufacturer
Which Manufacturer of IM03JR would you like to use for your alert(s)?
Inventory Alert
  • Please alert me when IM03JR inventory levels are or equal to a quantity of from one of my selected distributors.
  • Also alert me for IM03JR alternates
    An alert is already set for the following part(s): . Any existing alert will be overwritten and set as a new alert.
No pricing information is available at this time
Pricing Alert
  • Please alert me when the single part price for IM03JR to
    $
    for at least parts from one of my selected distributors.
    Your Pricing Alert is set to expire on .
    Set this alert to expire in Update this alert to expire · Expired on
  • Also alert me for IM03JR alternates
    An alert is already set for the following part(s): . Any existing alert will be overwritten and set as a new alert.

Your part alert has been saved!

Alerts are triggered based off of individual distributors that you choose. Select your distributor(s) below.

Your part alert has been saved!

Register
Password Guidelines

Is at least 8 characters in length

Is at most 256 characters in length

Must include at least 3 of the following:

One lower-case character (a-z)

One upper-case character (A-Z)

One numeric character (0-9)

One special character (!#$%^&*)

Alert is successfully saved for IM03JR.
Looks like you've reached your alert limit!  Please delete some alerts or contact us if you need help.

Compare IM03JR by TE Connectivity

Select a part to compare:
Part Number Manufacturer Description
No result found.
Something went wrong!
Or search for a different part:
