IP82C54Z Information

IP82C54Z by Renesas Electronics Corporation is a Timer or RTC.
Timers or RTCs are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Part #	Distributor	Description	Stock	Price	Buy
IP82C54Z DISTI # 79K6938	Newark	Programmable Timer, Triple, 8Mhz, 5.5V Dip24, Frequency:8Mhz, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Digital Ic Case:Dip, No. Of Pins:24Pins, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Product Range:-Rohs Compliant: Yes \|Renesas IP82C54Z RoHS: Compliant Min Qty: 330 Package Multiple: 1 Date Code: 0 Container: Bulk	0			Buy Now
IP82C54Z DISTI # IP82C54Z	Avnet Americas	- Rail/Tube (Alt: IP82C54Z) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 330 Package Multiple: 165 Lead time: 18 Weeks, 0 Days Container: Tube	180 Factory Stock	330 $24.3745 660 $23.8702 1,320 $23.3659 2,640 $22.8616 5,280 $22.3573	$22.3573 / $24.3745	Buy Now
IP82C54Z DISTI # IP82C54Z	Avnet Silica	(Alt: IP82C54Z) RoHS: Compliant Min Qty: 165 Package Multiple: 165 Lead time: 20 Weeks, 0 Days	Silica - 0			Buy Now

US Tariff Estimator: IP82C54Z by Renesas Electronics Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

Part Number: IP82C54Z

Manufacturer: Renesas Electronics Corporation

COO:

HTS Code:

Import Value:

Estimator Results:

		Tariff Calculation
	Import Value	$.
	Total Duty	$.
	Total Estimate	$.
		$.
Based on tariff data from

Part Details for IP82C54Z

IP82C54Z CAD Models

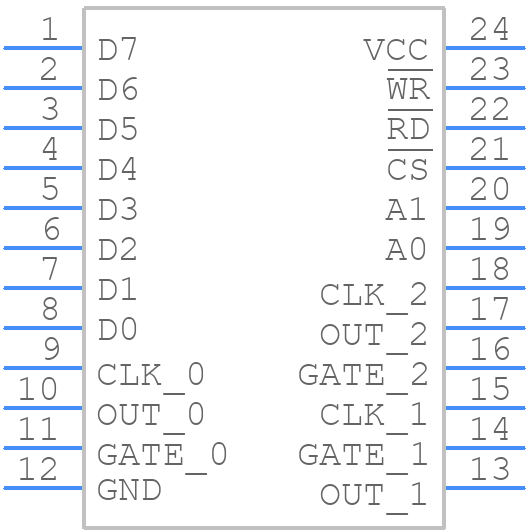

Part Symbol

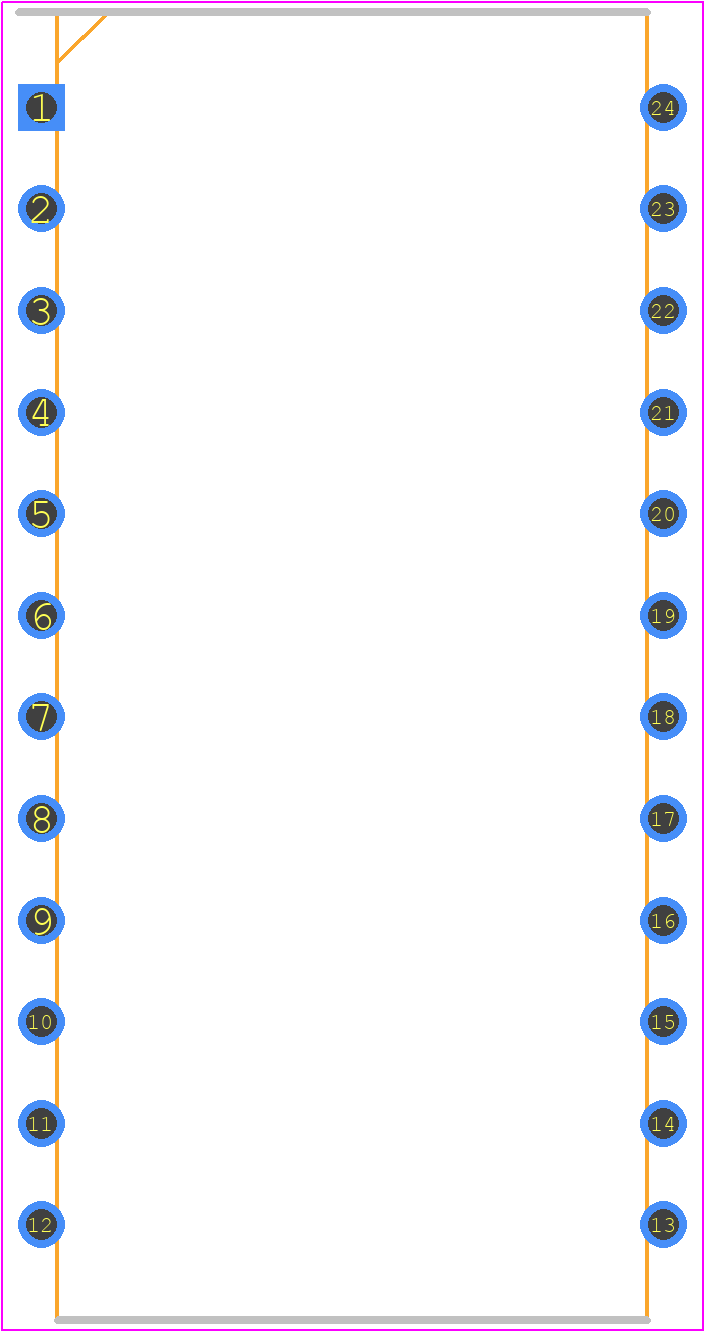

Footprint
