IPL1-109-01-F-D-RA-K by: Samtec Inc

Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal

Part Details for IPL1-109-01-F-D-RA-K by Samtec Inc

Results Overview of IPL1-109-01-F-D-RA-K by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

IPL1-109-01-F-D-RA-K Information

IPL1-109-01-F-D-RA-K by Samtec Inc is a Power Connector.
Power Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DAO3W3P543M40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3W3 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Threaded Insert UNC 4.40, Back: Metal Brackets.
DAL3V3P543G30LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3V3 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Threaded Insert M3, Back: Harpoons for 1.6mm PCB Thickness.
DAV3V3P543H40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3V3 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Harpoons for 2.4mm PCB Thickness.

Price & Stock for IPL1-109-01-F-D-RA-K

Part # Distributor Description Stock Price Buy
DISTI # IPL1-109-01-F-D-RA-K
Avnet Americas - Rail/Tube (Alt: IPL1-109-01-F-D-RA-K) COO: United States of America (the) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube 0
  • 1 $3.3124
  • 500 $3.0907
  • 1,000 $2.5802
  • 2,500 $2.5669
  • 5,000 $2.5536
$2.5536 / $3.3124 Buy Now
DISTI # 000000000005886309
Sager Headers & Wire Housings .100 Mini Mate Isolated Power Terminal Header Min Qty: 1 0
  • 1 $3.3800
  • 25 $2.9500
  • 50 $2.6700
  • 100 $2.3200
  • 500 $2.0100
  • 1,000 $1.7200
$1.7200 / $3.3800 Buy Now

US Tariff Estimator: IPL1-109-01-F-D-RA-K by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

IPL1-109-01-F-D-RA-K
Samtec Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for IPL1-109-01-F-D-RA-K

IPL1-109-01-F-D-RA-K CAD Models

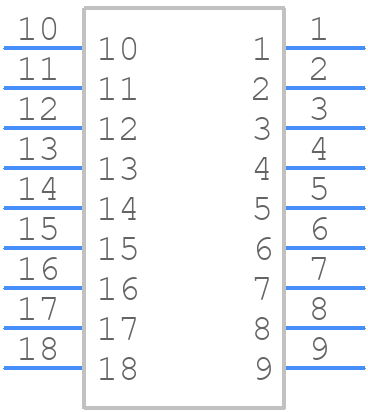

  • Part Symbol

    schematic symbol

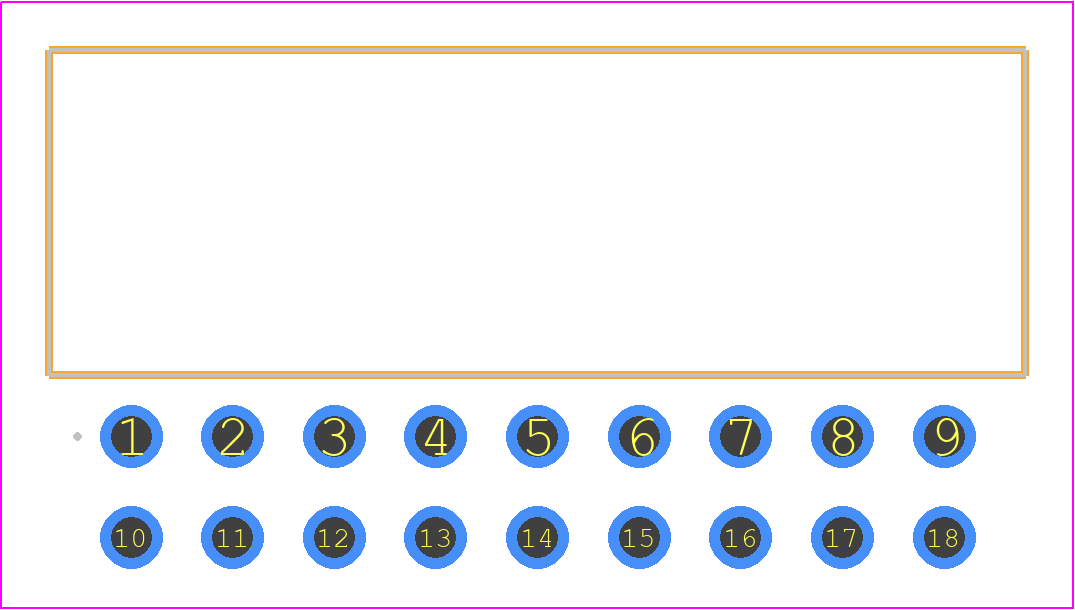

  • Footprint

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IPL1-109-01-F-D-RA-K Part Data Attributes

Parametric Data
IPL1-109-01-F-D-RA-K Samtec Inc
Buy Now Datasheet
Compare Parts:
IPL1-109-01-F-D-RA-K Samtec Inc Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer SAMTEC
Additional Feature POLARIZATION KEY, RATED CURRENT(POWER):4.8A
Body Breadth 0.31 inch
Body Depth 0.493 inch
Body Length 0.96 inch
Connector Type RECTANGULAR POWER CONNECTOR
Contact Arrangement S0P18
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Style SQ PIN-SKT
DIN Conformance NO
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Reference Standard UL
Termination Type SOLDER
Total Number of Contacts 18
UL Flammability Code 94V-0

Alternate Parts for IPL1-109-01-F-D-RA-K

This table gives cross-reference parts and alternative options found for IPL1-109-01-F-D-RA-K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IPL1-109-01-F-D-RA-K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
45280-1802 Molex Check for Price Rectangular Power Connector, 18 Contact(s), Male, Press Fit Terminal IPL1-109-01-F-D-RA-K vs 45280-1802
10127721-183LF Amphenol FCi Check for Price Board Connector, 18 Contact(s), Female, Straight, Solder Kinked Leads Terminal, Locking, Black Insulator IPL1-109-01-F-D-RA-K vs 10127721-183LF
HRP0102GJ Winchester Interconnect Check for Price Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal IPL1-109-01-F-D-RA-K vs HRP0102GJ
1-794663-8 TE's AMP Check for Price 18 CONTACT(S), MALE, POWER CONNECTOR, SOLDER IPL1-109-01-F-D-RA-K vs 1-794663-8
43879-6000 Molex Check for Price Rectangular Power Connector, 18 Contact(s), Male, Press Fit Terminal IPL1-109-01-F-D-RA-K vs 43879-6000
15-24-0452 Molex Check for Price Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal IPL1-109-01-F-D-RA-K vs 15-24-0452
MMIP18M42N82C1 Amphenol Positronic Check for Price Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal IPL1-109-01-F-D-RA-K vs MMIP18M42N82C1
39-31-0184 Molex Check for Price Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal, LEAD FREE IPL1-109-01-F-D-RA-K vs 39-31-0184
39-54-0185 Molex Check for Price Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal, LEAD FREE IPL1-109-01-F-D-RA-K vs 39-54-0185
39-30-1184 Molex Check for Price Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal, ROHS COMPLIANT IPL1-109-01-F-D-RA-K vs 39-30-1184
