IPL1-109-01-L-D-K Information

IPL1-109-01-L-D-K by Samtec Inc is a Power Connector.
Power Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Part #	Manufacturer	Description
DAO3W3P543M40LF	Amphenol Communications Solutions	D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3W3 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Threaded Insert UNC 4.40, Back: Metal Brackets.
DAL3V3P543G30LF	Amphenol Communications Solutions	D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3V3 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Threaded Insert M3, Back: Harpoons for 1.6mm PCB Thickness.
DAV3V3P543H40LF	Amphenol Communications Solutions	D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3V3 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Harpoons for 2.4mm PCB Thickness.

Part #	Distributor	Description	Stock	Price	Buy
IPL1-109-01-L-D-K DISTI # 08W3426	Newark	Ipl1-109-01-L-D-K/ Tube Rohs Compliant: Yes \|Samtec IPL1-109-01-L-D-K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk	0	1 $3.0200 25 $2.6300 50 $2.3800 100 $2.0700 500 $1.7900	$1.7900 / $3.0200	Buy Now
IPL1-109-01-L-D-K DISTI # IPL1-109-01-L-D-K	Avnet Americas	Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 18 Contacts, Through Hole, IPL1 - Rail/Tube (Alt: IPL1-109-01-L-D-K) COO: United States of America (the) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 5 Days Container: Tube	0	1 $3.1360 500 $1.8032 1,000 $1.5811 2,500 $1.3368 5,000 $1.1610	$1.1610 / $3.1360	Buy Now
IPL1-109-01-L-D-K DISTI # IPL1-109-01-L-D-K	IBS Electronics	CONN MINI-POWER TERMINAL STRIP HDR 18 POS 2.54MM SOLDER ST THRU-HOLE 18 TERMINAL 1 PORT Min Qty: 10 Package Multiple: 1	368	10 $3.6820 100 $3.2760 250 $3.1080 500 $2.6880 1,000 $2.2820 2,500 $1.9180 5,000 $1.6240 7,500 $1.5820	$1.5820 / $3.6820	Buy Now
IPL1-109-01-L-D-K DISTI # 000000000003206929	Sager	Headers & Wire Housings .100 Mini Mate Isolated Power Terminal Header Min Qty: 1	0	1 $3.2000 25 $2.7900 50 $2.5300 100 $2.2000 500 $1.9000 1,000 $1.6300	$1.6300 / $3.2000	Buy Now
IPL1-109-01-L-D-K DISTI # IPL1-109-01-L-D-K	Avnet Abacus	Pin Header WiretoBoard 254 mm 2 Rows 18 Contacts Through Hole IPL1 (Alt: IPL1-109-01-L-D-K) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days	Abacus - 0			Buy Now

US Tariff Estimator: IPL1-109-01-L-D-K by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

Part Number: IPL1-109-01-L-D-K

Manufacturer: Samtec Inc

COO:

HTS Code:

Import Value:

Estimator Results:

		Tariff Calculation
	Import Value	$.
	Total Duty	$.
	Total Estimate	$.
		$.
Based on tariff data from

Part Details for IPL1-109-01-L-D-K

IPL1-109-01-L-D-K CAD Models

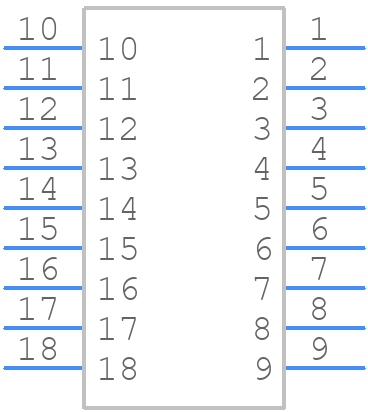

Part Symbol

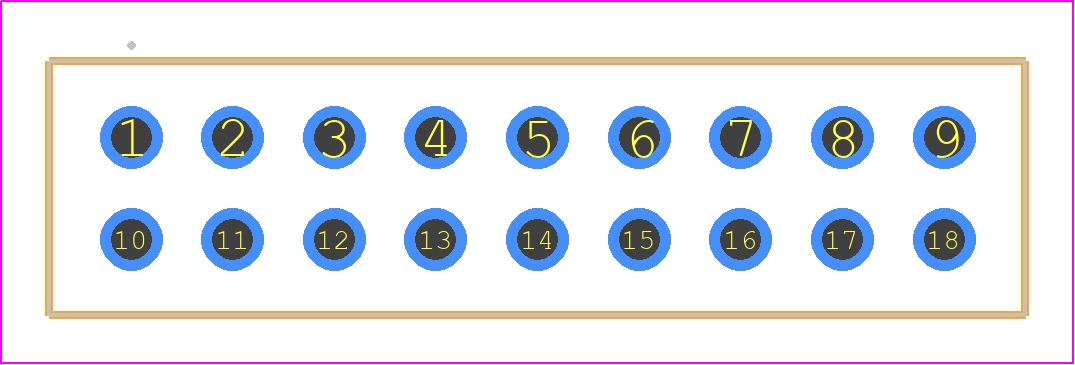

Footprint

Available Download Formats

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IPL1-109-01-L-D-K Part Data Attributes

Parametric Data

Show differences only	IPL1-109-01-L-D-K Samtec Inc Buy Now Datasheet	Buy Now	Compare Parts: IPL1-109-01-L-D-K Samtec Inc Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal

Pbfree Code	Yes
Rohs Code	Yes
Part Life Cycle Code	Active
Reach Compliance Code	Compliant
ECCN Code	EAR99
HTS Code	8536.69.40.40
Factory Lead Time	2 Weeks, 5 Days
Additional Feature	Polarized
Connector Type	Rectangular Power Connector
Contact Finish Mating	Not Specified
Contact Finish Termination	Tin (Sn) - With Nickel (Ni) Barrier
Contact Gender	Male
Contact Material	Phosphor Bronze
DIN Conformance	No
Empty Shell	No
Filter Feature	No
IEC Conformance	No
Insulator Material	Liquid Crystal Polymer
JESD-609 Code	e3
MIL Conformance	No
Mixed Contacts	No
Mounting Type	Board
Option	General Purpose
Termination Type	Solder
Total Number of Contacts	18

Alternate Parts for IPL1-109-01-L-D-K

This table gives cross-reference parts and alternative options found for IPL1-109-01-L-D-K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IPL1-109-01-L-D-K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number	Manufacturer	Composite Price	Description	Compare
45280-1802	Molex	Check for Price	Rectangular Power Connector, 18 Contact(s), Male, Press Fit Terminal	IPL1-109-01-L-D-K vs 45280-1802
10127721-183LF	Amphenol FCi	Check for Price	Board Connector, 18 Contact(s), Female, Straight, Solder Kinked Leads Terminal, Locking, Black Insulator	IPL1-109-01-L-D-K vs 10127721-183LF
HRP0102GJ	Winchester Interconnect	Check for Price	Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal	IPL1-109-01-L-D-K vs HRP0102GJ
1-794663-8	TE's AMP	Check for Price	18 CONTACT(S), MALE, POWER CONNECTOR, SOLDER	IPL1-109-01-L-D-K vs 1-794663-8
43879-6000	Molex	Check for Price	Rectangular Power Connector, 18 Contact(s), Male, Press Fit Terminal	IPL1-109-01-L-D-K vs 43879-6000
15-24-0452	Molex	Check for Price	Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal	IPL1-109-01-L-D-K vs 15-24-0452
MMIP18M42N82C1	Amphenol Positronic	Check for Price	Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal	IPL1-109-01-L-D-K vs MMIP18M42N82C1
39-31-0184	Molex	Check for Price	Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal, LEAD FREE	IPL1-109-01-L-D-K vs 39-31-0184
39-54-0185	Molex	Check for Price	Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal, LEAD FREE	IPL1-109-01-L-D-K vs 39-54-0185
39-30-1184	Molex	Check for Price	Rectangular Power Connector, 18 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	IPL1-109-01-L-D-K vs 39-30-1184

IPL1-109-01-L-D-K Frequently Asked Questions (FAQ)

The recommended torque for the screws on the IPL1-109-01-L-D-K connector is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the IPL1-109-01-L-D-K connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application guidance.
The maximum operating temperature for the IPL1-109-01-L-D-K connector is 125°C (257°F).
Yes, the IPL1-109-01-L-D-K connector is RoHS and REACH compliant, meeting the requirements for lead-free and hazardous substance restrictions.
Yes, the IPL1-109-01-L-D-K connector is designed to operate in high-humidity environments. However, it's recommended to follow Samtec's guidelines for humidity testing and to consult with a Samtec representative for specific application guidance.
