Transistors / Power Field-Effect Transistors / IRF540ZPBF
Datasheets
IRF540ZPBF by:
Infineon Technologies AG

Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, LEAD FREE, PLASTIC PACKAGE-3

Part Details for IRF540ZPBF by Infineon Technologies AG

Results Overview of IRF540ZPBF by Infineon Technologies AG

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

IRF540ZPBF Information

IRF540ZPBF by Infineon Technologies AG is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for IRF540ZPBF

Part # Distributor Description Stock Price Buy
DISTI # 37J1436
Newark N Channel Mosfet, 100V, 36A, To-220Ab, Channel Type:N Channel, Drain Source Voltage Vds:100V, Continuous Drain Current Id:36A, Transistor Mounting:Through Hole, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:4V, Msl:- Rohs Compliant: Yes |Infineon IRF540ZPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 9056
  • 1 $0.6030
  • 10 $0.5570
  • 100 $0.5570
  • 500 $0.5170
  • 1,000 $0.4830
  • 3,000 $0.4720
  • 10,000 $0.4330
$0.4330 / $0.6030 Buy Now
DISTI # 37J1436
Avnet Americas Trans MOSFET N-CH 100V 36A 3-Pin(3+Tab) TO-220AB - Bulk (Alt: 37J1436) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 4350 Partner Stock
  • 1 $0.7700
  • 10 $0.6960
  • 100 $0.6220
  • 500 $0.5670
  • 1,000 $0.5180
  • 3,000 $0.4770
  • 10,000 $0.4330
$0.4330 / $0.7700 Buy Now
DISTI # IRF540ZPBF
Avnet Americas Trans MOSFET N-CH 100V 36A 3-Pin(3+Tab) TO-220AB - Rail/Tube (Alt: IRF540ZPBF) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 50 Package Multiple: 1 Lead time: 26 Weeks, 0 Days Container: Tube 0
  • 50 $0.4134
  • 100 $0.3988
  • 200 $0.3855
  • 400 $0.3730
  • 800 $0.3614
$0.3614 / $0.4134 Buy Now
DISTI # 70016922
RS MOSFET, POWER, N-CH, VDSS 100V, RDS(ON) 21 MILLIOHMS, ID 36A, TO-220AB, PD 92W, GFS 36V Min Qty: 2 Package Multiple: 1 Container: Bulk 0
  • 2 $1.7600
  • 20 $1.6700
  • 100 $1.5900
  • 200 $1.4900
$1.4900 / $1.7600 RFQ
DISTI # IRF540ZPBF
TME Transistor: N-MOSFET, unipolar, 100V, 36A, 92W, TO220AB Min Qty: 1 129
  • 1 $0.8200
  • 10 $0.6750
  • 20 $0.6450
  • 50 $0.6060
  • 100 $0.5790
  • 200 $0.5510
  • 500 $0.5130
  • 1,000 $0.5120
$0.5120 / $0.8200 Buy Now
DISTI # IRF540ZPBF
IBS Electronics MOSFET POWER N-CH VDSS 100V RDS(ON) 21MILLIOHMS ID 36A TO-220AB PD 92W GFS 36V Min Qty: 50 Package Multiple: 1 5250
  • 50 $0.9030
  • 200 $0.8820
  • 750 $0.8540
  • 2,000 $0.8400
  • 5,000 $0.8120
$0.8120 / $0.9030 Buy Now
DISTI # TMOSP11816
Rutronik N-CH 100V 36A 26,5mOhm TO220-3 RoHS: Compliant Min Qty: 50 Package Multiple: 50 Container: Tube Stock DE - 1650
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 50 $0.5320
  • 150 $0.5016
  • 300 $0.4712
  • 650 $0.4256
  • 1,000 $0.4104
$0.4104 / $0.5320 Buy Now
DISTI # IRF540ZPBF
Chip One Stop Semiconductors RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Tube 349
  • 5 $0.4050
  • 10 $0.4030
  • 50 $0.3990
$0.3990 / $0.4050 Buy Now
Chip Stock MOSFET,Power, N-Ch, VDSS100V, RDS(ON)21Milliohms, ID36A, TO-220AB, PD92W, gFS36V 6910
RFQ
DISTI # SP001561896
EBV Elektronik Trans MOSFET NCH 100V 36A 3Pin3Tab TO220AB (Alt: SP001561896) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 27 Weeks, 0 Days EBV - 0
Buy Now
LCSC 100V 36A 92W 1 N-Channel TO-220AB-3 Single FETs MOSFETs RoHS 141
  • 1 $1.0922
  • 10 $0.9033
  • 50 $0.7435
  • 100 $0.6268
  • 500 $0.5746
  • 1,000 $0.5515
$0.5515 / $1.0922 Buy Now

Part Details for IRF540ZPBF

IRF540ZPBF CAD Models

  • Part Symbol

    schematic symbol

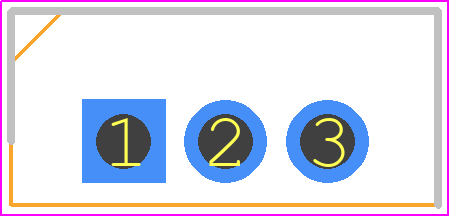

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IRF540ZPBF Part Data Attributes

Parametric Data
IRF540ZPBF Infineon Technologies AG
Buy Now Datasheet
Compare Parts:
IRF540ZPBF Infineon Technologies AG Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, LEAD FREE, PLASTIC PACKAGE-3
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Not Compliant
ECCN Code EAR99
Additional Feature Avalanche Rated, High Reliability, Ultra-Low Resistance
Avalanche Energy Rating (Eas) 120 Mj
Case Connection Drain
Configuration Single With Built-In Diode
DS Breakdown Voltage-Min 100 V
Drain Current-Max (ID) 36 A
Drain-source On Resistance-Max 0.0265 Ω
FET Technology Metal-Oxide Semiconductor
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Number of Elements 1
Number of Terminals 3
Operating Mode Enhancement Mode
Operating Temperature-Max 175 °C
Package Body Material Plastic/Epoxy
Package Shape Rectangular
Package Style Flange Mount
Polarity/Channel Type N-Channel
Power Dissipation-Max (Abs) 91 W
Pulsed Drain Current-Max (IDM) 140 A
Qualification Status Not Qualified
Surface Mount No
Terminal Finish Tin (Sn)
Terminal Form Through-Hole
Terminal Position Single
Transistor Application Switching
Transistor Element Material Silicon

Alternate Parts for IRF540ZPBF

This table gives cross-reference parts and alternative options found for IRF540ZPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IRF540ZPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
AUIRF540Z International Rectifier Check for Price Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, ROHS COMPLIANT, PLASTIC PACKAGE-3 IRF540ZPBF vs AUIRF540Z
Part Number Manufacturer Composite Price Description Compare
IRF540ZLPBF Infineon Technologies AG $1.1764 Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA, LEAD FREE, PLASTIC, TO-262, 3 PIN IRF540ZPBF vs IRF540ZLPBF
AUIRF540Z Infineon Technologies AG $2.4765 Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, ROHS COMPLIANT, PLASTIC PACKAGE-3 IRF540ZPBF vs AUIRF540Z
IRF540ZPBF International Rectifier Check for Price Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, LEAD FREE, PLASTIC PACKAGE-3 IRF540ZPBF vs IRF540ZPBF
IRF540ZSPBF International Rectifier Check for Price Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, LEAD FREE, PLASTIC, D2PAK-3 IRF540ZPBF vs IRF540ZSPBF
AUIRF540ZSTRL Infineon Technologies AG Check for Price Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, D2PAK-3 IRF540ZPBF vs AUIRF540ZSTRL
IRF540ZSTRRPBF International Rectifier Check for Price Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, LEAD FREE, PLASTIC, D2PAK-3 IRF540ZPBF vs IRF540ZSTRRPBF
IRF540ZSTRLPBF Infineon Technologies AG Check for Price Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, LEAD FREE, PLASTIC, D2PAK-3 IRF540ZPBF vs IRF540ZSTRLPBF
IRF540ZSTRLPBF International Rectifier Check for Price Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, LEAD FREE, PLASTIC, D2PAK-3 IRF540ZPBF vs IRF540ZSTRLPBF
IRF540ZL International Rectifier Check for Price Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA, PLASTIC, TO-262, 3 PIN IRF540ZPBF vs IRF540ZL
AUIRF540ZS International Rectifier Check for Price Power Field-Effect Transistor, 36A I(D), 100V, 0.0265ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, ROHS COMPLIANT, PLASTIC, D2PAK-3 IRF540ZPBF vs AUIRF540ZS
equivalents icon

IRF540ZPBF Related Parts

IRF540ZPBF Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the IRF540ZPBF is -55°C to 175°C.

  • To ensure proper cooling, ensure a good thermal interface between the device and the heat sink, and use a heat sink with a thermal resistance of less than 10°C/W.

  • The maximum voltage rating for the IRF540ZPBF is 100V.

  • Yes, the IRF540ZPBF is suitable for high-frequency switching applications up to 1 MHz, but ensure proper gate drive and layout to minimize switching losses.

  • Handle the device with ESD-protective equipment, and ensure the device is stored in an ESD-protective package or bag when not in use.
