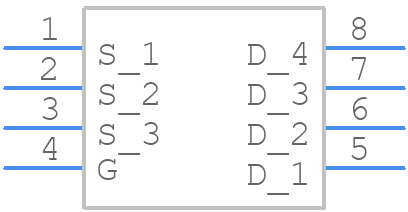

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IRF7807ZTRPBF by Infineon Technologies AG
Results Overview of IRF7807ZTRPBF by Infineon Technologies AG
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (3 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
IRF7807ZTRPBF Information
IRF7807ZTRPBF by Infineon Technologies AG is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IRF7807ZTRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70017550
|
RS | MOSFET, POWER, N-CH, VDSS 30V, RDS(ON) 11 MILLIOHMS, ID 11A, SO-8,PD 2.5W, VGS +/-20V Min Qty: 4000 Package Multiple: 1 Container: Bulk | 0 |
|
$0.8840 / $1.0400 | RFQ |
|
DISTI #
IRF7807ZTRPBF
|
TME | Transistor: N-MOSFET, unipolar, 30V, 11A, 2.5W, SO8 Min Qty: 4000 | 0 |
|
$0.2500 / $0.2920 | RFQ |
|
|
Chip Stock | Mosfet,Power, N-ch, Vdss30V, Rds(on)11Milliohms, Id11A, SO-8, Pd2.5W, Vgs+/-20V | 7500 |
|
RFQ | |
|
|
Win Source Electronics | MOSFET N-CH 30V 11A 8-SOIC | 6000 |
|
$0.3850 / $0.4973 | Buy Now |
Part Details for IRF7807ZTRPBF
IRF7807ZTRPBF CAD Models
IRF7807ZTRPBF Part Data Attributes
|
|
IRF7807ZTRPBF
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
IRF7807ZTRPBF
Infineon Technologies AG
Small Signal Field-Effect Transistor, 11A I(D), 30V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, MS-012AA, LEAD FREE, SOP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | SOP-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Infineon | |
| Avalanche Energy Rating (Eas) | 63 mJ | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 11 A | |
| Drain-source On Resistance-Max | 0.0138 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 100 pF | |
| JEDEC-95 Code | MS-012AA | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 8 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 2.5 W | |
| Pulsed Drain Current-Max (IDM) | 88 A | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
