IS42S16160J-6TLI by:
Integrated Silicon Solution Inc

Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, TSOP2-54

Part Details for IS42S16160J-6TLI by Integrated Silicon Solution Inc

Results Overview of IS42S16160J-6TLI by Integrated Silicon Solution Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage Entertainment and Gaming

IS42S16160J-6TLI Information

IS42S16160J-6TLI by Integrated Silicon Solution Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for IS42S16160J-6TLI

Part # Distributor Description Stock Price Buy
DISTI # 52Y1975
Newark 256M, 3.3V, Sdram, 16Mx16, 166Mhz, 54 Pin Tsop Ii Rohs, It |Integrated Silicon Solution/issi IS42S16160J-6TLI RoHS: Not Compliant Min Qty: 108 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $3.0300
  • 250 $2.5200
  • 500 $2.4500
$2.4500 / $3.0300 Buy Now
DISTI # IS42S16160J-6TLI
Avnet Americas DRAM Chip SDRAM 256M-Bit 16Mx16 3.3V 54-Pin TSOP-II - Bulk (Alt: IS42S16160J-6TLI) COO: China RoHS: Compliant Min Qty: 324 Package Multiple: 108 Lead time: 8 Weeks, 0 Days Container: Bulk 0
  • 324 $2.2140
  • 648 $2.1780
  • 1,296 $2.1420
  • 2,592 $2.1060
  • 5,184 $2.0700
$2.0700 / $2.2140 Buy Now
Rochester Electronics IS42S16160 - 256M, 3.3V, SDRAM, 16Mx16, 166MHz, 54 pin TSOP II RoHS: Compliant Status: Active Min Qty: 1 1080
  • 25 $4.1100
  • 100 $3.9000
  • 500 $3.7000
  • 1,000 $3.4900
  • 10,000 $3.2900
$3.2900 / $4.1100 Buy Now
DISTI # 42S16160J-6TLI
TME IC: DRAM memory, 256MbDRAM, 4Mx16bitx4, 166MHz, 6ns, TSOP54 II Min Qty: 1 0
  • 1 $6.2800
  • 5 $5.9300
  • 25 $5.4100
  • 108 $5.2100
$5.2100 / $6.2800 RFQ
DISTI # IS42S16160J-6TLI
Avnet Asia DRAM Chip SDRAM 256M-Bit 16Mx16 3.3V 54-Pin TSOP-II (Alt: IS42S16160J-6TLI) RoHS: Compliant Min Qty: 108 Package Multiple: 108 Lead time: 16 Weeks, 0 Days 0
RFQ
DISTI # IS42S16160J-6TLI
Avnet Silica DRAM Chip SDRAM 256MBit 16Mx16 33V 54Pin TSOPII (Alt: IS42S16160J-6TLI) RoHS: Compliant Min Qty: 108 Package Multiple: 108 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now

US Tariff Estimator: IS42S16160J-6TLI by Integrated Silicon Solution Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

IS42S16160J-6TLI
Integrated Silicon Solution Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for IS42S16160J-6TLI

IS42S16160J-6TLI CAD Models

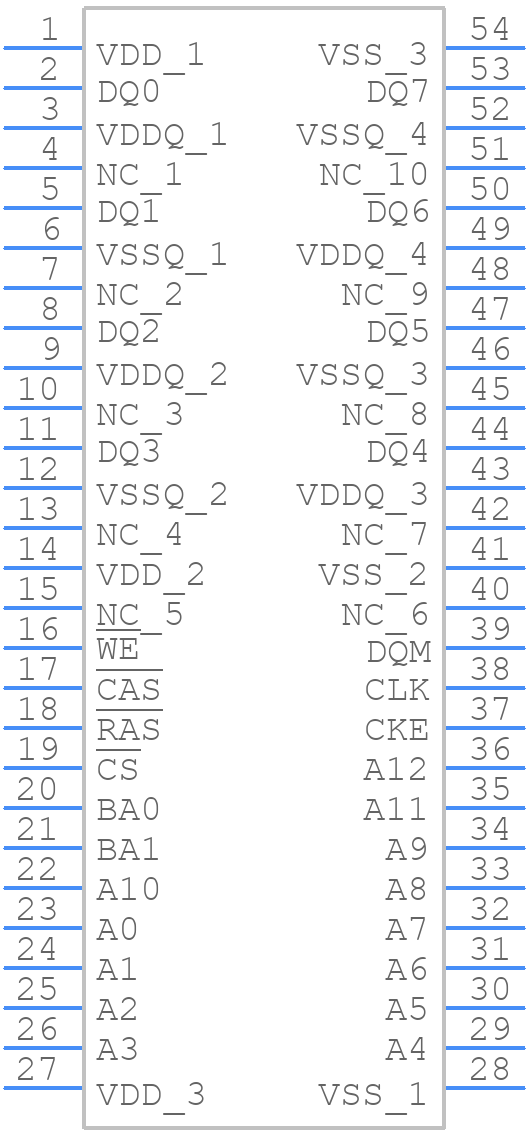

  • Part Symbol

    schematic symbol

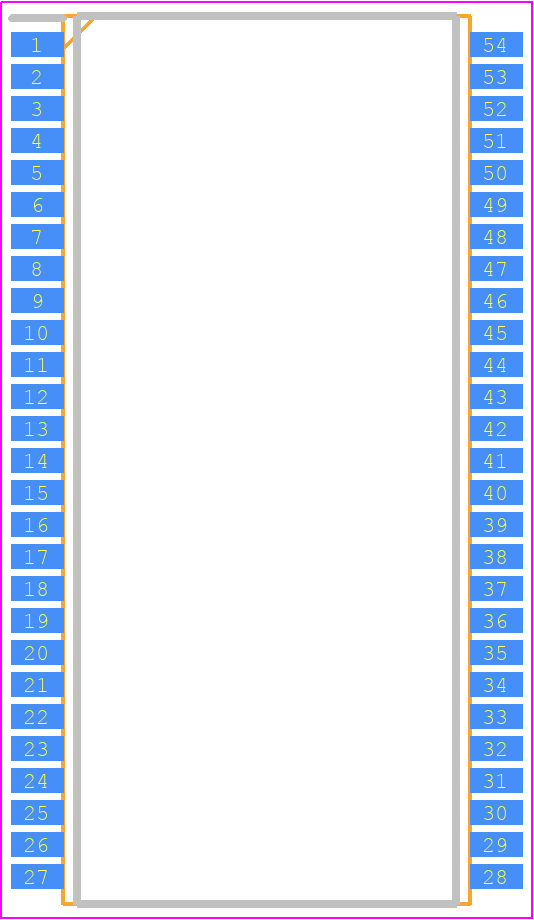

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IS42S16160J-6TLI Part Data Attributes

Parametric Data
IS42S16160J-6TLI Integrated Silicon Solution Inc
Buy Now Datasheet
Compare Parts:
IS42S16160J-6TLI Integrated Silicon Solution Inc Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, TSOP2-54
Rohs Code Yes
Part Life Cycle Code Active
Package Description Tsop2,
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.32.00.24
Factory Lead Time 6 Weeks
Access Mode Four Bank Page Burst
Access Time-Max 5.4 Ns
Additional Feature Programmable Cas Latency; Auto/Self Refresh
JESD-30 Code R-PDSO-G54
Length 22.22 Mm
Memory Density 268435456 Bit
Memory IC Type Synchronous Dram
Memory Width 16
Number of Functions 1
Number of Ports 1
Number of Terminals 54
Number of Words 16777216 Words
Number of Words Code 16000000
Operating Mode Synchronous
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 16mx16
Package Body Material Plastic/Epoxy
Package Code TSOP2
Package Shape Rectangular
Package Style Small Outline, Thin Profile
Peak Reflow Temperature (Cel) Not Specified
Seated Height-Max 1.2 Mm
Self Refresh Yes
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Form Gull Wing
Terminal Pitch 0.8 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) Not Specified
Width 10.16 Mm

Alternate Parts for IS42S16160J-6TLI

This table gives cross-reference parts and alternative options found for IS42S16160J-6TLI. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IS42S16160J-6TLI, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IS42S16160J-6TL Integrated Silicon Solution Inc $2.7403 Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, TSOP2-54 IS42S16160J-6TLI vs IS42S16160J-6TL
Part Number Manufacturer Composite Price Description Compare
SCX33S256160AF-6BI Xi'an UniIC Semiconductors Co Ltd Check for Price Synchronous DRAM, IS42S16160J-6TLI vs SCX33S256160AF-6BI
IS45SM16160K-6BLA2 Integrated Silicon Solution Inc Check for Price Synchronous DRAM, 16MX16, 5.5ns, CMOS, PBGA54, FBGA-54 IS42S16160J-6TLI vs IS45SM16160K-6BLA2
MT48LC16M16A2P-75:DTR Micron Technology Inc Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54 IS42S16160J-6TLI vs MT48LC16M16A2P-75:DTR
IS45SM16160K-6BLA1 Integrated Silicon Solution Inc Check for Price Synchronous DRAM, 16MX16, 5.5ns, CMOS, PBGA54, FBGA-54 IS42S16160J-6TLI vs IS45SM16160K-6BLA1
K4S561632D-NC7C0 Samsung Semiconductor Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PDSO54, STSOP2-54 IS42S16160J-6TLI vs K4S561632D-NC7C0
SCX33S256160AE-6BA2 Xi'an UniIC Semiconductors Co Ltd Check for Price Synchronous DRAM, IS42S16160J-6TLI vs SCX33S256160AE-6BA2
M12L2561616A-7BVG2A Elite Semiconductor Memory Technology Inc Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, PBGA54, 8 X 8 MM, 1 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, BGA-54 IS42S16160J-6TLI vs M12L2561616A-7BVG2A
FMS8B16LBH-60AE Fidelix Co Ltd Check for Price Synchronous DRAM, 16MX16, 5.5ns, CMOS, PBGA54, FBGA-54 IS42S16160J-6TLI vs FMS8B16LBH-60AE
ECS2516AFCN-A-Y3 Elpida Memory Inc Check for Price Synchronous DRAM, 16MX16, 5.4ns, CMOS, CHIP IS42S16160J-6TLI vs ECS2516AFCN-A-Y3
SCX33S256160AF-75B Xi'an UniIC Semiconductors Co Ltd Check for Price Synchronous DRAM, IS42S16160J-6TLI vs SCX33S256160AF-75B
equivalents icon

IS42S16160J-6TLI Related Parts

IS42S16160J-6TLI Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the IS42S16160J-6TLI is 0°C to 85°C.

  • To ensure data integrity, it is recommended to follow the power-up and power-down sequences outlined in the datasheet, and to use a voltage regulator to ensure a stable power supply.

  • The recommended clock frequency for the IS42S16160J-6TLI is 100 MHz, but it can operate up to 133 MHz with a 6ns clock cycle time.

  • The IS42S16160J-6TLI requires a refresh cycle every 64ms, and the refresh command should be issued at least once every 32ms to ensure data integrity.

  • The maximum current consumption of the IS42S16160J-6TLI is 350mA during active operation, and 10mA during standby mode.
