Part #	Distributor	Description	Stock	Price	Buy
IS45S16320F-7TLA2 DISTI # 52Y2254	Newark	Automotive (-40 To +105C), 512M, 3.3V, Sdram, 32Mx16, 143Mhz, 54 Pin Tsop Ii Rohs \|Integrated Silicon Solution/issi IS45S16320F-7TLA2 RoHS: Not Compliant Min Qty: 108 Package Multiple: 1 Date Code: 0 Container: Bulk	0	100 $12.9300 250 $12.5600	$12.5600 / $12.9300	Buy Now
IS45S16320F-7TLA2 DISTI # IS45S16320F-7TLA2	Avnet Americas	DRAM Chip SDRAM 512M-Bit 32Mx16 3.3V 54-Pin TSOP-II - Bulk (Alt: IS45S16320F-7TLA2) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 108 Package Multiple: 108 Lead time: 10 Weeks, 0 Days Container: Bulk	0	108 $13.1857 216 $12.6720 432 $12.6077 864 $12.5434 1,728 $11.7486	$11.7486 / $13.1857	Buy Now
IS45S16320F-7TLA2 DISTI # IS45S16320F-7TLA2	Avnet Asia	DRAM Chip SDRAM 512M-Bit 32Mx16 3.3V 54-Pin TSOP-II (Alt: IS45S16320F-7TLA2) RoHS: Compliant Min Qty: 108 Package Multiple: 108 Lead time: 18 Weeks, 0 Days	0			RFQ
IS45S16320F-7TLA2 DISTI # IS45S16320F-7TLA2	Avnet Silica	DRAM Chip SDRAM 512MBit 32Mx16 33V 54Pin TSOPII (Alt: IS45S16320F-7TLA2) RoHS: Compliant Min Qty: 108 Package Multiple: 108 Lead time: 8 Weeks, 0 Days	Silica - 0			Buy Now

US Tariff Estimator: IS45S16320F-7TLA2 by Integrated Silicon Solution Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

Part Number: IS45S16320F-7TLA2

Manufacturer: Integrated Silicon Solution Inc

COO:

HTS Code:

Import Value:

Estimator Results:

		Tariff Calculation
	Import Value	$.
	Total Duty	$.
	Total Estimate	$.
		$.
Based on tariff data from

Part Details for IS45S16320F-7TLA2

IS45S16320F-7TLA2 CAD Models

Part Symbol

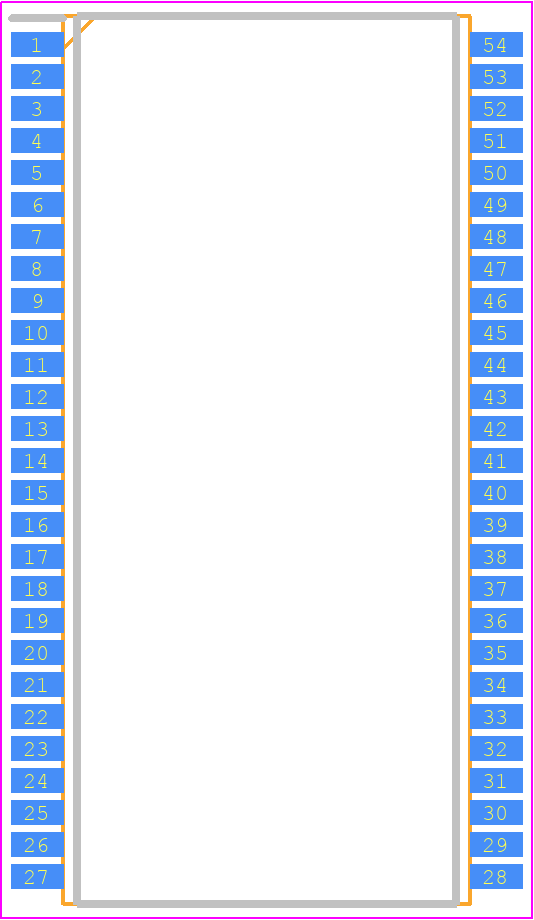

Footprint
3D Model

Available Download Formats

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IS45S16320F-7TLA2 Part Data Attributes

Parametric Data

Show differences only	IS45S16320F-7TLA2 Integrated Silicon Solution Inc Buy Now Datasheet	Buy Now	Compare Parts: IS45S16320F-7TLA2 Integrated Silicon Solution Inc Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, TSOP2-54

Rohs Code	Yes
Part Life Cycle Code	Active
Ihs Manufacturer	INTEGRATED SILICON SOLUTION INC
Package Description	TSOP2, TSOP54,.46,32
Reach Compliance Code	Compliant
ECCN Code	EAR99
HTS Code	8542.32.00.28
Factory Lead Time	10 Weeks
Samacsys Manufacturer	Integrated Silicon Solution Inc.
Access Mode	FOUR BANK PAGE BURST
Access Time-Max	5.4 ns
Additional Feature	PROGRAMMABLE CAS LATENCY; AUTO/SELF REFRESH
Clock Frequency-Max (fCLK)	143 MHz
I/O Type	COMMON
Interleaved Burst Length	1,2,4,8
JESD-30 Code	R-PDSO-G54
Length	22.22 mm
Memory Density	536870912 bit
Memory IC Type	SYNCHRONOUS DRAM
Memory Width	16
Number of Functions	1
Number of Ports	1
Number of Terminals	54
Number of Words	33554432 words
Number of Words Code	32000000
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	105 °C
Operating Temperature-Min	-40 °C
Organization	32MX16
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP2
Package Equivalence Code	TSOP54,.46,32
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Refresh Cycles	8192
Screening Level	AEC-Q100
Seated Height-Max	1.2 mm
Self Refresh	YES
Sequential Burst Length	1,2,4,8,FP
Standby Current-Max	0.004 A
Supply Current-Max	0.16 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	DUAL
Width	10.16 mm

Alternate Parts for IS45S16320F-7TLA2

This table gives cross-reference parts and alternative options found for IS45S16320F-7TLA2. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IS45S16320F-7TLA2, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number	Manufacturer	Composite Price	Description	Compare
IS42S16320F-7TLI	Integrated Silicon Solution Inc	$11.9705	Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, TSOP2-54	IS45S16320F-7TLA2 vs IS42S16320F-7TLI
IS45S16320F-7CTLA1	Integrated Silicon Solution Inc	$12.9667	Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, TSOP2-54	IS45S16320F-7TLA2 vs IS45S16320F-7CTLA1
IS45S16320F-7CTLA2	Integrated Silicon Solution Inc	$15.2775	Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, TSOP2-54	IS45S16320F-7TLA2 vs IS45S16320F-7CTLA2

Part Number	Manufacturer	Composite Price	Description	Compare
HM5251165BTD-75	Hitachi Ltd	Check for Price	Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, PLASTIC, TSOP2-54	IS45S16320F-7TLA2 vs HM5251165BTD-75
MT48LC32M16A2P-7E	Micron Technology Inc	Check for Price	Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, PLASTIC, TSOP2-54	IS45S16320F-7TLA2 vs MT48LC32M16A2P-7E
IS45S16320B-7TLA2	Integrated Silicon Solution Inc	Check for Price	Synchronous DRAM, 32MX16, 6ns, CMOS, PDSO54, 0.400 INCH, ROHS COMPLIANT, TSOP2-54	IS45S16320F-7TLA2 vs IS45S16320B-7TLA2
IS42R16320D-7TLI	Integrated Silicon Solution Inc	Check for Price	Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, 0.400 INCH, LEAD FREE, TSSOP2, 54 PIN	IS45S16320F-7TLA2 vs IS42R16320D-7TLI
MT48H32M16LFTG-8	Micron Technology Inc	Check for Price	Synchronous DRAM, 32MX16, 7ns, CMOS, PDSO54, 0.400 INCH, PLASTIC, TSOP-54	IS45S16320F-7TLA2 vs MT48H32M16LFTG-8
IS42S16320B-6TL	Integrated Silicon Solution Inc	Check for Price	Synchronous DRAM, 32MX16, 6ns, CMOS, PDSO54, 0.400 INCH, ROHS COMPLIANT, TSOP2-54	IS45S16320F-7TLA2 vs IS42S16320B-6TL
AS4SD32M16DG/IT	Micross Components	Check for Price	Synchronous DRAM, 32MX16, CMOS, PDSO54, TSOP2-54	IS45S16320F-7TLA2 vs AS4SD32M16DG/IT
IS42S16320B-6TLI	Integrated Silicon Solution Inc	Check for Price	Synchronous DRAM, 32MX16, 6ns, CMOS, PDSO54, 0.400 INCH, ROHS COMPLIANT, TSOP2-54	IS45S16320F-7TLA2 vs IS42S16320B-6TLI
HY57V121620T-K	SK Hynix Inc	Check for Price	Synchronous DRAM, 32MX16, 5.4ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54	IS45S16320F-7TLA2 vs HY57V121620T-K
K4S511632C-KL1H	Samsung Semiconductor	Check for Price	Synchronous DRAM, 32MX16, 6ns, CMOS, PDSO54, 0.400 X 0.875 INCH, 0.80 MM PITCH, TSOP2-54	IS45S16320F-7TLA2 vs K4S511632C-KL1H

IS45S16320F-7TLA2 Frequently Asked Questions (FAQ)

The maximum operating temperature range for the IS45S16320F-7TLA2 is -40°C to 85°C.
The power-up sequence for the IS45S16320F-7TLA2 should follow the recommended sequence in the datasheet, which is to power up VCC first, followed by VCCQ, and then the input signals.
The recommended PCB layout for the IS45S16320F-7TLA2 involves placing the device near the center of the board, with decoupling capacitors placed close to the power pins, and using a solid ground plane to reduce noise and improve signal integrity.
To troubleshoot issues with the IS45S16320F-7TLA2, start by checking the power supply voltage, clock signal, and input signals to ensure they are within the recommended specifications. Then, use a logic analyzer or oscilloscope to verify the signal integrity and timing.
The maximum clock frequency supported by the IS45S16320F-7TLA2 is 133 MHz.
