ISL32172EIBZ Information
ISL32172EIBZ by Renesas Electronics Corporation is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ISL32172EIBZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ISL32172EIBZ
|
Avnet Americas | - Rail/Tube (Alt: ISL32172EIBZ) COO: United States of America (the) RoHS: Compliant Min Qty: 1920 Package Multiple: 960 Lead time: 12 Weeks, 0 Days Container: Tube | 0 |
|
$1.4324 / $1.5143 | Buy Now |
|
DISTI #
ISL32172EIBZ
|
Avnet Silica | (Alt: ISL32172EIBZ) RoHS: Compliant Min Qty: 960 Package Multiple: 960 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | Quad,±16.5kVESDProtected,3.0Vto5.5V,LowPower,RS-422Transmitters | 2700 |
|
RFQ |
US Tariff Estimator: ISL32172EIBZ by Renesas Electronics Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ISL32172EIBZ
ISL32172EIBZ CAD Models
-

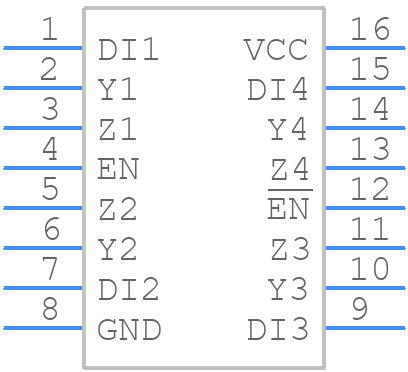

Part Symbol
-

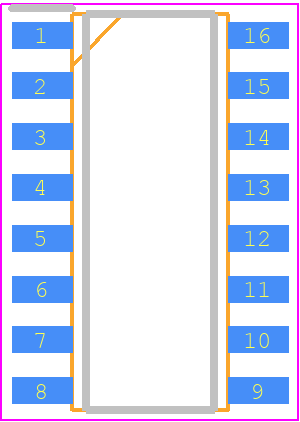

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ISL32172EIBZ Part Data Attributes
|
|
ISL32172EIBZ
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL32172EIBZ
Renesas Electronics Corporation
Quad, ±16.5kV ESD Protected, 3.0V to 5.5V, Low Power, RS-422 Transmitters, SOICN, /Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOICN | |
| Package Description | Sop, Sop16,.25 | |
| Pin Count | 16 | |
| Manufacturer Package Code | M16.15 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Date Of Intro | 2017-10-10 | |
| Additional Feature | Can Also Operate From Vcc=3 To 3.6v | |
| Differential Output | Yes | |
| Driver Number of Bits | 4 | |
| High Level Input Current-Max | 0.00003 A | |
| Input Characteristics | Standard | |
| Interface IC Type | Line Driver | |
| Interface Standard | Eia-422 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 9.9 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Differential | |
| Output Polarity | Complementary | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max | 0.8 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 15 Ns | |
| Width | 3.9 Mm |
Alternate Parts for ISL32172EIBZ
This table gives cross-reference parts and alternative options found for ISL32172EIBZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISL32172EIBZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN75ALS192DR | Texas Instruments | $0.2924 | Quadruple Differential Line Driver 16-SOIC 0 to 70 | ISL32172EIBZ vs SN75ALS192DR |
| SN75ALS192D | Texas Instruments | $0.4852 | Quadruple Differential Line Driver 16-SOIC 0 to 70 | ISL32172EIBZ vs SN75ALS192D |
| ISL32174EIBZ | Renesas Electronics Corporation | $1.2596 | Quad, ±16.5kV ESD Protected, 3.0V to 5.5V, Low Power, RS-422 Transmitters, SOICN, /Tube | ISL32172EIBZ vs ISL32174EIBZ |
| ISL32172EIVZ | Renesas Electronics Corporation | $1.5440 | Quad, ±16.5kV ESD Protected, 3.0V to 5.5V, Low Power, RS-422 Transmitters, TSSOP, /Tube | ISL32172EIBZ vs ISL32172EIVZ |
| ISL32172EIBZ-T | Renesas Electronics Corporation | Check for Price | Quad, ±16.5kV ESD Protected, 3.0V to 5.5V, Low Power, RS-422 Transmitters, SOICN, /Reel | ISL32172EIBZ vs ISL32172EIBZ-T |
| ISL32172EFVZ-T | Renesas Electronics Corporation | Check for Price | Quad, ±16.5kV ESD Protected, 3.0V to 5.5V, Low Power, RS-422 Transmitters, TSSOP, /Reel | ISL32172EIBZ vs ISL32172EFVZ-T |
| ISL32274EFVZ | Intersil Corporation | Check for Price | QUAD LINE DRIVER, PDSO16, ROHS COMPLIANT, PLASTIC, TSSOP-16 | ISL32172EIBZ vs ISL32274EFVZ |
| ISL32174EIVZ | Intersil Corporation | Check for Price | QUAD LINE DRIVER, PDSO16, ROHS COMPLIANT, PLASTIC, TSSOP-16 | ISL32172EIBZ vs ISL32174EIVZ |
| ISL32172EFVZ | Intersil Corporation | Check for Price | Quad, ±16.5kV ESD Protected, 3.0V to 5.5V, Low Power, RS-422 Transmitters; SOIC16, TSSOP16; Temp Range: See Datasheet | ISL32172EIBZ vs ISL32172EFVZ |
| ISL32174EFVZ | Renesas Electronics Corporation | Check for Price | Quad, ±16.5kV ESD Protected, 3.0V to 5.5V, Low Power, RS-422 Transmitters, TSSOP, /Tube | ISL32172EIBZ vs ISL32174EFVZ |
