Part Details for ISL3330IAZ-T7A by Renesas Electronics Corporation
Results Overview of ISL3330IAZ-T7A by Renesas Electronics Corporation
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
ISL3330IAZ-T7A Information
ISL3330IAZ-T7A by Renesas Electronics Corporation is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ISL3330IAZ-T7A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
22T1892
|
Newark | Pb-Free Single 3.3V Multiprotocol Transceiver, 20 Ssop, -40C/Tape & Reel Rohs Compliant: Yes |Renesas ISL3330IAZ-T7A RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
84AC6960
|
Newark | Rs232/Rs422/Rs485 Tx Rx, -40 To 85Deg C, Ic Type:Rs232/Rs485 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:Half Duplex, Data Rate Max:20Mbps, Supply Voltage Min:3.15V, Supply Voltage Max:3.45V Rohs Compliant: Yes |Renesas ISL3330IAZ-T7A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$6.0800 / $10.6100 | Buy Now |
|
DISTI #
ISL3330IAZ-T7A
|
Avnet Americas | - Tape and Reel (Alt: ISL3330IAZ-T7A) COO: Philippines (the) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 12 Weeks, 0 Days Container: Reel | 750 |
|
$6.2643 / $6.8295 | Buy Now |
|
DISTI #
ISL3330IAZ-T7A
|
IBS Electronics | DUAL TRANSMITTER/RECEIVER RS-232/RS-485 20-PIN SSOP T/R Min Qty: 250 Package Multiple: 1 | 0 |
|
$7.5040 / $7.6020 | Buy Now |
|
DISTI #
ISL3330IAZ-T7A
|
Avnet Silica | (Alt: ISL3330IAZ-T7A) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | DualTransmitter/ReceiverRS-232/RS-48520-PinSSOPT/R | 2550 |
|
RFQ | |
|
|
Win Source Electronics | IC TRANSCEIVER FULL 2/2 20SSOP | 1050 |
|
$7.2989 / $10.9484 | Buy Now |
US Tariff Estimator: ISL3330IAZ-T7A by Renesas Electronics Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ISL3330IAZ-T7A
ISL3330IAZ-T7A CAD Models
-

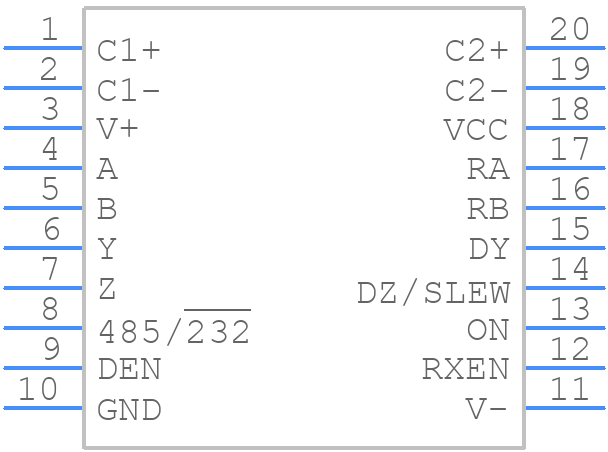

Part Symbol
-

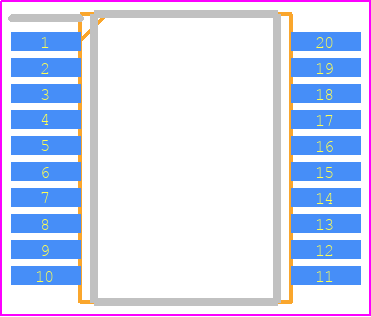

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ISL3330IAZ-T7A Part Data Attributes
|
|
ISL3330IAZ-T7A
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL3330IAZ-T7A
Renesas Electronics Corporation
3.3V, ±15kV ESD Protected, Dual Protocol (RS-232/RS-485) Transceivers, SSOP, /Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SSOP | |
| Package Description | Ssop, Ssop20,.3 | |
| Pin Count | 20 | |
| Manufacturer Package Code | M20.209 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Differential Output | Yes | |
| Driver Number of Bits | 2 | |
| Input Characteristics | Differential Schmitt Trigger | |
| Interface IC Type | Line Transceiver | |
| Interface Standard | Eia-232 | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 7.2 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 1.5 V | |
| Output Polarity | Complementary | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Shrink Pitch | |
| Receive Delay-Max | 120 Ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1.99 Mm | |
| Supply Current-Max | 7 Ma | |
| Supply Voltage-Max | 3.45 V | |
| Supply Voltage-Min | 3.15 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Transmit Delay-Max | 2000 Ns | |
| Width | 5.29 Mm |
Alternate Parts for ISL3330IAZ-T7A
This table gives cross-reference parts and alternative options found for ISL3330IAZ-T7A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISL3330IAZ-T7A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISL3330IAZ | Intersil Corporation | Check for Price | 3.3V, ±15kV ESD Protected, Dual Protocol (RS-232/RS-485) Transceivers; SSOP20; Temp Range: -40° to 85°C | ISL3330IAZ-T7A vs ISL3330IAZ |
