JANTX1N5650A Information
JANTX1N5650A by Microchip Technology Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for JANTX1N5650A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AJ5740
|
Newark | 70.1V 21.4A Uni-Directional Tvs Do-13 Rohs Compliant: Yes |Microchip JANTX1N5650A RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$49.0100 / $50.9700 | Buy Now |
|
DISTI #
JANTX1N5650A
|
Avnet Americas | - Tape and Reel (Alt: JANTX1N5650A) COO: Philippines (the) RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Reel | 0 |
|
$46.7232 / $47.6966 | Buy Now |
|
DISTI #
JANTX1N5650A
|
Microchip Technology Inc | Uni-Directional TVS _ DO-13, Projected EOL: 2049-02-05 COO: Philippines ECCN: EAR99 RoHS: Compliant | In Stock: 847 and Alternates Available |
|
$54.8900 | Buy Now |
|
DISTI #
JANTX1N5650A
|
IBS Electronics | 1N56XXA SERIES 1.5 KW 70.1 V UNI-DIRECTIONAL AXIAL TVS DIODE - DO-13 Min Qty: 100 Package Multiple: 1 | 0 |
|
$65.4500 | Buy Now |
|
|
NAC | 70.1V 21.4A Uni-Directional TVS. - Protection Devices HRDS Product Line RoHS: Compliant Min Qty: 6 Package Multiple: 1 | 0 |
|
$47.8200 / $56.0100 | Buy Now |
|
|
NexGen Digital | 573 |
|
RFQ | ||
|
DISTI #
JANTX1N5650A
|
Avnet Silica | (Alt: JANTX1N5650A) RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Lead time: 38 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
JANTX1N5650A
|
EBV Elektronik | (Alt: JANTX1N5650A) RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Lead time: 53 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: JANTX1N5650A by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for JANTX1N5650A

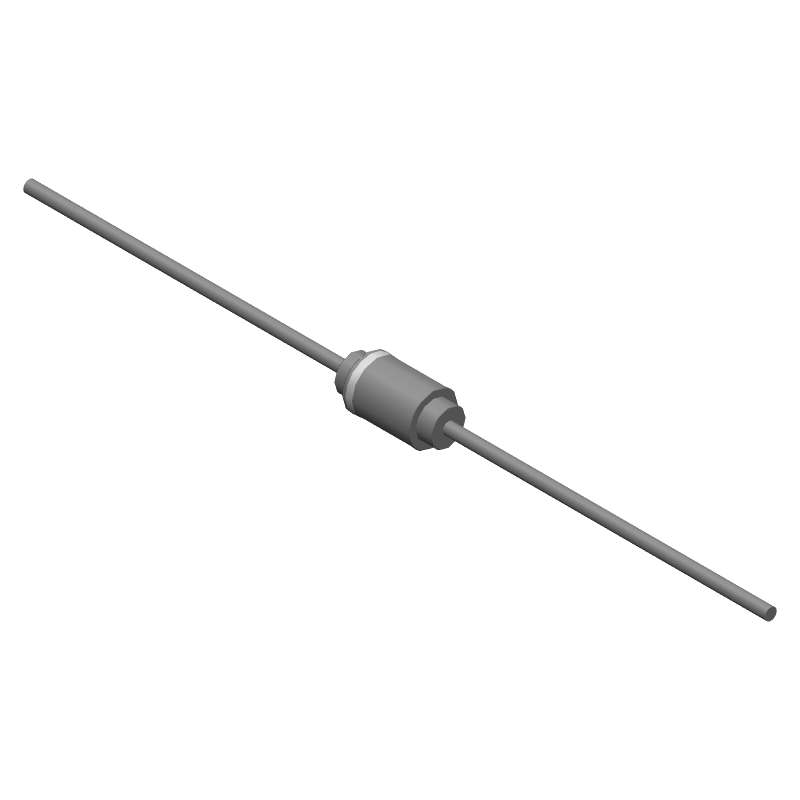

JANTX1N5650A CAD Models
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
JANTX1N5650A Part Data Attributes
|
|
JANTX1N5650A
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
JANTX1N5650A
Microchip Technology Inc
Uni-Directional TVS _ DO-13
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Package Description | Hermetic Sealed, Metal Glass, Do-13, 2 Pin | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Breakdown Voltage-Max | 53.6 V | |
| Breakdown Voltage-Min | 48.5 V | |
| Breakdown Voltage-Nom | 51.05 V | |
| Case Connection | Cathode | |
| Clamping Voltage-Max | 70.1 V | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Trans Voltage Suppressor Diode | |
| JEDEC-95 Code | DO-202AA | |
| JESD-30 Code | O-MALF-W2 | |
| JESD-609 Code | e0 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | Metal | |
| Package Shape | Round | |
| Package Style | Long Form | |
| Polarity | Unidirectional | |
| Power Dissipation-Max | 1 W | |
| Qualification Status | Qualified | |
| Reference Standard | Mil-19500 | |
| Rep Pk Reverse Voltage-Max | 43.6 V | |
| Surface Mount | No | |
| Technology | Avalanche | |
| Terminal Finish | Tin Lead | |
| Terminal Form | Wire | |
| Terminal Position | Axial |
