JMK325B7476KMHPR by: TAIYO YUDEN

Capacitor, Ceramic, Chip, General Purpose, 47uF, 6.3V, ±10%, X7R, 1210 (3225 mm), 0.098"T, -55º ~ +125ºC, 7" Reel/4mm pitch/1K per reel

Part Details for JMK325B7476KMHPR by TAIYO YUDEN

Results Overview of JMK325B7476KMHPR by TAIYO YUDEN

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

JMK325B7476KMHPR Information

JMK325B7476KMHPR by TAIYO YUDEN is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for JMK325B7476KMHPR

Part # Distributor Description Stock Price Buy
DISTI # 53AJ5868
Newark Cap, Aec-Q200, 47Uf, 6.3V, Mlcc, 1210, Capacitance:47Μf, Voltage(Dc):6.3V, Capacitor Case/Package:1210 [3225 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:M Series, Product Length:3.2Mm Rohs Compliant: Yes |Taiyo Yuden JMK325B7476KMHPR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 229
  • 1 $0.9940
  • 10 $0.5220
  • 25 $0.5080
  • 50 $0.4940
  • 100 $0.4800
  • 250 $0.4500
$0.4500 / $0.9940 Buy Now
DISTI # 95Y1474
Newark Cap, Aec-Q200, 47Uf, 6.3V, Mlcc, 1210, Capacitance:47Μf, Voltage(Dc):6.3V, Capacitor Case/Package:1210 [3225 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:M Series, Product Length:3.2Mm Rohs Compliant: Yes |Taiyo Yuden JMK325B7476KMHPR RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 1,000 $0.3490
  • 2,000 $0.3440
  • 4,000 $0.3410
  • 6,000 $0.3380
  • 10,000 $0.3340
$0.3340 / $0.3490 Buy Now
DISTI # JMK325B7476KMHPR
Avnet Americas Multilayer Ceramic Capacitor, 47 uF, 6.3 V, ? 10%, X7R, 1210 [3225 Metric] - Tape and Reel (Alt: JMK325B7476KMHPR) COO: Malaysia RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days Container: Reel 87000
  • 1 $0.2555
  • 10,000 $0.2280
  • 100,000 $0.2016
  • 400,000 $0.1783
$0.1783 / $0.2555 Buy Now
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 497
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # CEJMK325B7476KMHPR
Avnet Abacus Multilayer Ceramic Capacitor 47 uF 63 V 10 X7R 1210 3225 Metric - Tape and Reel (Alt: CEJMK325B7476KMHPR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 21 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # JMK325B7476KMHPR
Avnet Asia Multilayer Ceramic Capacitor, 47 uF, 6.3 V, ? 10%, X7R, 1210 [3225 Metric] (Alt: JMK325B7476KMHPR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 26 Weeks, 0 Days 0
RFQ
DISTI # JMK325B7476KMHPR
Maritex Multilayer Ceramic Capacitors MLCC – SMD/SMT, TAIYO YUDEN, JMK325B7476KMHPR, 47 µF, 1210, 6.3 V, 6.3 V Min Qty: 1 Package Multiple: 1 12797
  • 1 $0.8840
  • 10 $0.4350
  • 100 $0.3980
  • 500 $0.3380
  • 1,000 $0.2710
  • 2,000 $0.2580
  • 5,000 $0.2500
  • 10,000 $0.2430
$0.2430 / $0.8840 Buy Now
New Advantage Corporation Cap Cer SMD 1210 47�F � 10% 6.3V X7R Auto T&R RoHS: Compliant Min Qty: 1 Package Multiple: 1000 14000
  • 1,000 $0.1783
  • 14,000 $0.1646
$0.1646 / $0.1783 Buy Now

US Tariff Estimator: JMK325B7476KMHPR by TAIYO YUDEN

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

JMK325B7476KMHPR
TAIYO YUDEN
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for JMK325B7476KMHPR

JMK325B7476KMHPR CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

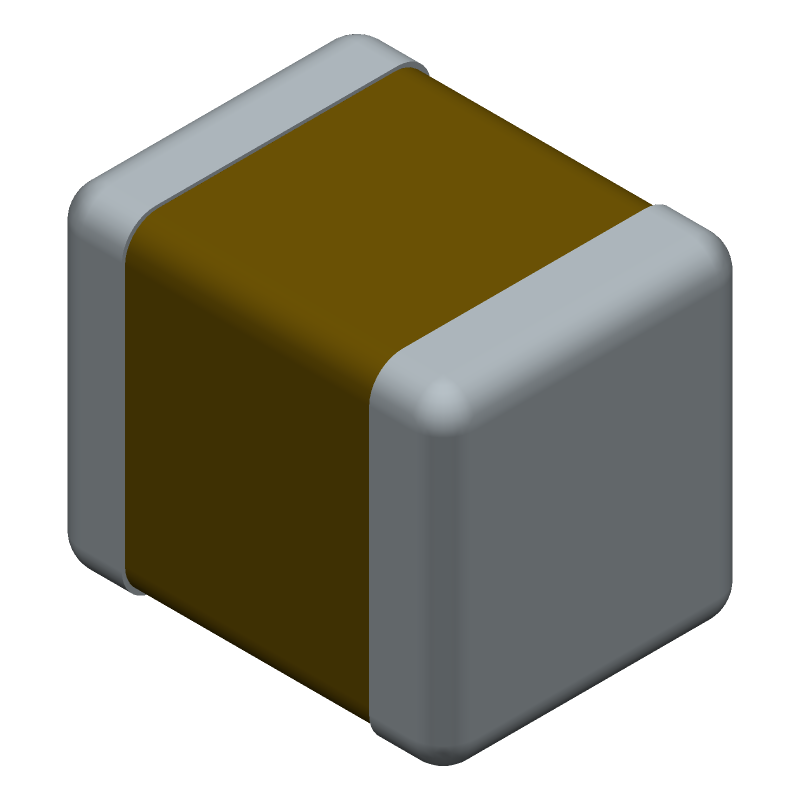

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

JMK325B7476KMHPR Part Data Attributes

Parametric Data
JMK325B7476KMHPR TAIYO YUDEN
Buy Now Datasheet
Compare Parts:
JMK325B7476KMHPR TAIYO YUDEN Capacitor, Ceramic, Chip, General Purpose, 47uF, 6.3V, ±10%, X7R, 1210 (3225 mm), 0.098"T, -55º ~ +125ºC, 7" Reel/4mm pitch/1K per reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TAIYO YUDEN CO LTD
Part Package Code 1210
Package Description CHIP
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 13 Weeks
Samacsys Manufacturer TAIYO YUDEN
Capacitance 47 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 2.5 mm
JESD-609 Code e3
Length 3.2 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 6.3 V
Reference Standard AEC-Q200
Size Code 1210
Surface Mount YES
Tan Delta 0.1
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 2.5 mm

Alternate Parts for JMK325B7476KMHPR

This table gives cross-reference parts and alternative options found for JMK325B7476KMHPR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of JMK325B7476KMHPR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
GCG32ER70J476KE01L Murata Manufacturing Co Ltd $0.3370 Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 47uF, Surface Mount, 1210, CHIP JMK325B7476KMHPR vs GCG32ER70J476KE01L
MCASJ32MSB7476KPNB25 TAIYO YUDEN $0.5322 Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 47uF, Surface Mount, 1210, CHIP JMK325B7476KMHPR vs MCASJ32MSB7476KPNB25
MCJCJ32MLB7476KPPDTJ TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 47uF, Surface Mount, 1210, CHIP JMK325B7476KMHPR vs MCJCJ32MLB7476KPPDTJ
SCM32B476KJNK Surge Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 47uF, 1210, JMK325B7476KMHPR vs SCM32B476KJNK
MSASJ32MSB7476KPNB25 TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 47uF, Surface Mount, 1210, CHIP JMK325B7476KMHPR vs MSASJ32MSB7476KPNB25
GCG32ER70J476KE01K Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 47uF, Surface Mount, 1210, CHIP JMK325B7476KMHPR vs GCG32ER70J476KE01K
CL32B476KQVVPNE Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 47uF, Surface Mount, 1210, CHIP JMK325B7476KMHPR vs CL32B476KQVVPNE
C1210C476K9RAC3325 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 47uF, 1210, JMK325B7476KMHPR vs C1210C476K9RAC3325
GCH32ER70J476KE01L Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 47uF, Surface Mount, 1210, CHIP JMK325B7476KMHPR vs GCH32ER70J476KE01L
12102R476K5BB0D YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 47uF, 1210, JMK325B7476KMHPR vs 12102R476K5BB0D
equivalents icon

JMK325B7476KMHPR Related Parts

JMK325B7476KMHPR Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for the JMK325B7476KMHPR is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

  • The ESR of the JMK325B7476KMHPR is 0.015 ohms, which is relatively low. This means that the capacitor has minimal internal resistance, resulting in less energy loss and improved overall performance.

  • The derating curve for the JMK325B7476KMHPR indicates that the capacitor's capacitance decreases by approximately 20% at 125°C, and by approximately 40% at 150°C, compared to its rated capacitance at 20°C.

  • Yes, the JMK325B7476KMHPR is designed to withstand high vibrations and shocks. It meets the IEC 60068-2-6 standard for vibration and IEC 60068-2-27 standard for shock.

  • The JMK325B7476KMHPR has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours without requiring baking or drying before soldering.
