L6561D013TR Information
L6561D013TR by STMicroelectronics is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for L6561D013TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
07AH6692
|
Newark | Pfc Controller, -25 To 125Deg C, Uvlo:-, Supply Voltage Min:11V, Supply Voltage Max:18V, Startup Current:50Μa, Operating Supply Current:4Ma, Controller Ic Case Style:Soic, No. Of Pins:8Pins, Duty Cycle (%):-, Frequency:-, Operating Rohs Compliant: Yes |Stmicroelectronics L6561D013TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 6211 |
|
$0.5940 / $1.1600 | Buy Now |
|
DISTI #
56P8549
|
Newark | Power Supply Ic, Pfc Mode Of Operation:Transition Mode, Control Mode:-, Frequency Mode:-, Supply Voltage Min:11V, Supply Voltage Max:18V, Ic Case/Package:Soic, No. Of Pins:8Pins, Ic Mounting:Surface Mount, Switching Frequency Typ:-Rohs Compliant: Yes |Stmicroelectronics L6561D013TR RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
L6561D013TR
|
Avnet Americas | Power Factor Correction CONTRLR 0.05mA 8-Pin SO N T/R - Tape and Reel (Alt: L6561D013TR) COO: Singapore RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.5146 / $0.5253 | Buy Now |
|
|
STMicroelectronics | Transition mode power factor corrector COO: Singapore RoHS: Compliant Min Qty: 1 | 2260 |
|
$0.6100 / $1.1400 | Buy Now |
|
|
Bristol Electronics | 3542 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 4 | 2385 |
|
$0.4246 / $1.6331 | Buy Now |
|
|
Bristol Electronics | 245 |
|
RFQ | ||
|
DISTI #
L6561D013TR
|
TME | IC: driver, PFC controller, SO8, Ch: 1 Min Qty: 1 | 1043 |
|
$0.7800 / $1.1100 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ | |
|
DISTI #
L6561D013TR
|
Avnet Silica | Power Factor Correction CONTRLR 005mA 8Pin SO N TR (Alt: L6561D013TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
US Tariff Estimator: L6561D013TR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for L6561D013TR
L6561D013TR CAD Models
-

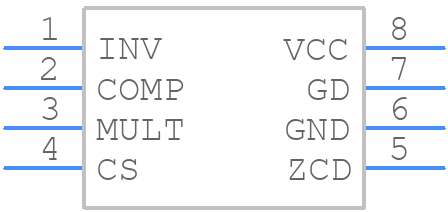

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
L6561D013TR Part Data Attributes
|
|
L6561D013TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L6561D013TR
STMicroelectronics
Transition mode power factor corrector
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP8,.25 | |
| Pin Count | 8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks | |
| Date Of Intro | 1980-01-04 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Analog IC - Other Type | POWER FACTOR CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 11 V | |
| Input Voltage-Nom | 14.5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Current-Max | 0.7 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 5.5 mA | |
| Supply Voltage-Nom (Vsup) | 14.5 V | |
| Surface Mount | YES | |
| Switcher Configuration | SINGLE | |
| Technology | BCDMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 3.9 mm |
