L9780 Information
L9780 by STMicroelectronics is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for L9780
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3367205
|
Farnell | AIR FUEL SENSOR CNTRL INTERFACE, 125DEGC RoHS: Compliant Min Qty: 1 Lead time: 18 Weeks, 1 Days Container: Each | 6164 |
|
$11.5238 / $18.8463 | Buy Now |
|
DISTI #
L9780
|
Avnet Americas | Air Fuel Sensor Control Interface 48-Pin LQFP Tray - Bulk (Alt: L9780) COO: Italy RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 26 Weeks, 0 Days Container: Bulk | 0 |
|
$12.1735 / $13.0143 | Buy Now |
|
|
STMicroelectronics | Wide range air fuel sensor control interface COO: Italy RoHS: Compliant Min Qty: 1 | 4057 |
|
$12.3000 / $18.9700 | Buy Now |
|
DISTI #
L9780
|
Avnet Silica | Air Fuel Sensor Control Interface 48Pin LQFP Tray (Alt: L9780) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | SensorandDetectorInterface5.5VSPIInterfaceAutomotive48-PinLQFPTray | 45749 |
|
RFQ | |
|
DISTI #
L9780
|
EBV Elektronik | Air Fuel Sensor Control Interface 48Pin LQFP Tray (Alt: L9780) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 28 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | LQFP-48(7x7) Power Management - Specialized RoHS | 9 |
|
$8.6094 / $9.1089 | Buy Now |
|
|
Win Source Electronics | IC POWERTRAIN INTERFACE 48LQFP / Air Fuel Sensor Interface PMIC 48-LQFP (7x7) | 42249 |
|
$4.7564 / $7.1347 | Buy Now |
US Tariff Estimator: L9780 by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for L9780
L9780 CAD Models
-

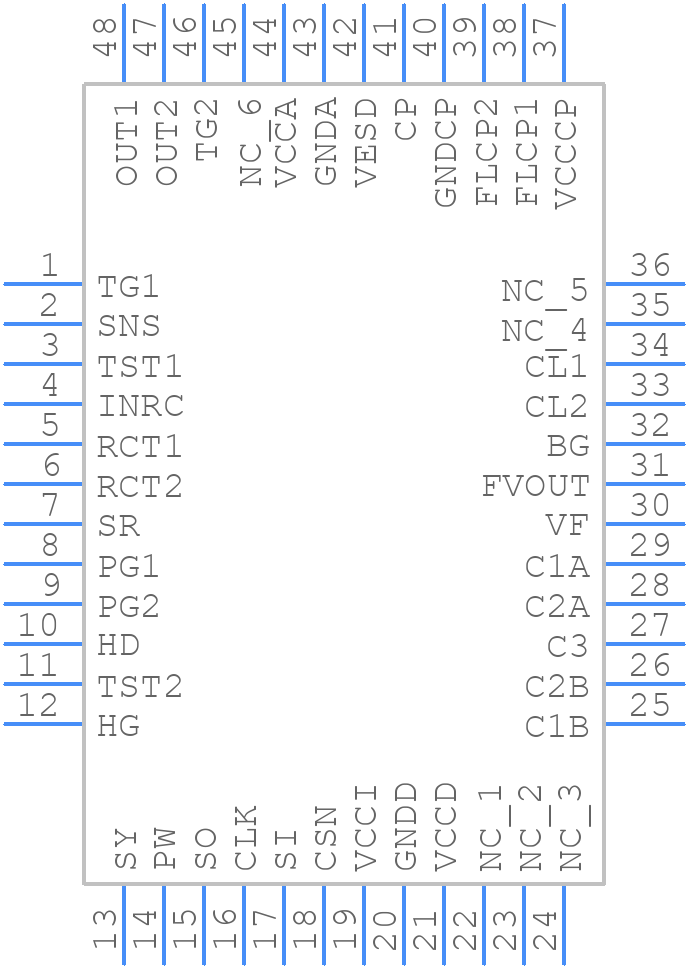

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
L9780 Part Data Attributes
|
|
L9780
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L9780
STMicroelectronics
Wide range air fuel sensor control interface
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | LQFP-48 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | S-XQCC-N48 | |
| JESD-609 Code | e4 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | QCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Max (Vsup) | 5.1 V | |
| Supply Voltage-Min (Vsup) | 4.9 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 7 mm |
