Part Details for LAN9500A-ABZJ-TR by Microchip Technology Inc
Results Overview of LAN9500A-ABZJ-TR by Microchip Technology Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LAN9500A-ABZJ-TR Information
LAN9500A-ABZJ-TR by Microchip Technology Inc is a Serial IO/Communication Controller.
Serial IO/Communication Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for LAN9500A-ABZJ-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
57AC2410
|
Newark | Ethernet Controller, 10/100Mbps, Qfn-56, Supply Voltage Min:3V, Supply Voltage Max:3.6V, No. Of Pins:56Pins, Operating Temperature Min:0°C, Operating Temperature Max:70°C, Product Range:-, Automotive Qualification Standard:-, Msl:Mslrohs Compliant: Yes |Microchip LAN9500A-ABZJ-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 656 |
|
$4.2600 / $5.2900 | Buy Now |
|
DISTI #
69W9517
|
Newark | Hi-Speed Usb 2.0 To 10/100 Ethernet Ctrl 56 Vqfn 8X8X0.9Mm T/R Rohs Compliant: Yes |Microchip LAN9500A-ABZJ-TR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$4.2500 | Buy Now |
|
DISTI #
LAN9500A-ABZJ-TR
|
Avnet Americas | Interface Bridges, USB to 10/100 Ethernet, 3 V, 3.6 V, QFN, 56 Pins, 0 ?C - Tape and Reel (Alt: LAN9500A-ABZJ-TR) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 3000 |
|
$4.2625 / $4.5467 | Buy Now |
|
DISTI #
LAN9500A-ABZJ-TR
|
Microchip Technology Inc | Hi-Speed USB 2.0 to 10/100 Ethernet Controller, VQFN, Projected EOL: 2034-11-23 COO: Singapore, Taiwan ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Reel | In Stock: 0 and Alternates Available |
|
$3.5100 / $5.2900 | Buy Now |
|
|
Bristol Electronics | 2 |
|
RFQ | ||
|
|
Ameya Holding Limited | LAN950x Series 3.3 V Surface Mount USB 2.0 to 10/100 Ethernet Controller- QFN-56 | 268 |
|
RFQ | |
|
|
NAC | Hi-Speed USB 2.0 to 10/100 Ethernet Ctrl. Package: 56 VQFN 8x8x1.0mm T/R - Non-Auto Ethernet Product Line RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | 0 |
|
$4.1600 / $5.0100 | Buy Now |
|
DISTI #
LAN9500A-ABZJ-TR
|
Avnet Silica | Interface Bridges USB to 10100 Ethernet 3 V 36 V QFN 56 Pins 0 C (Alt: LAN9500A-ABZJ-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | FullSpeed/HighSpeedUSB2.0to10/100EthernetControllerUSB2.03.3VT/R56-PinVQFNEP | 10570 |
|
RFQ | |
|
DISTI #
LAN9500A-ABZJ-TR
|
EBV Elektronik | Interface Bridges USB to 10100 Ethernet 3 V 36 V QFN 56 Pins 0 C (Alt: LAN9500A-ABZJ-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: LAN9500A-ABZJ-TR by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LAN9500A-ABZJ-TR
LAN9500A-ABZJ-TR CAD Models
-

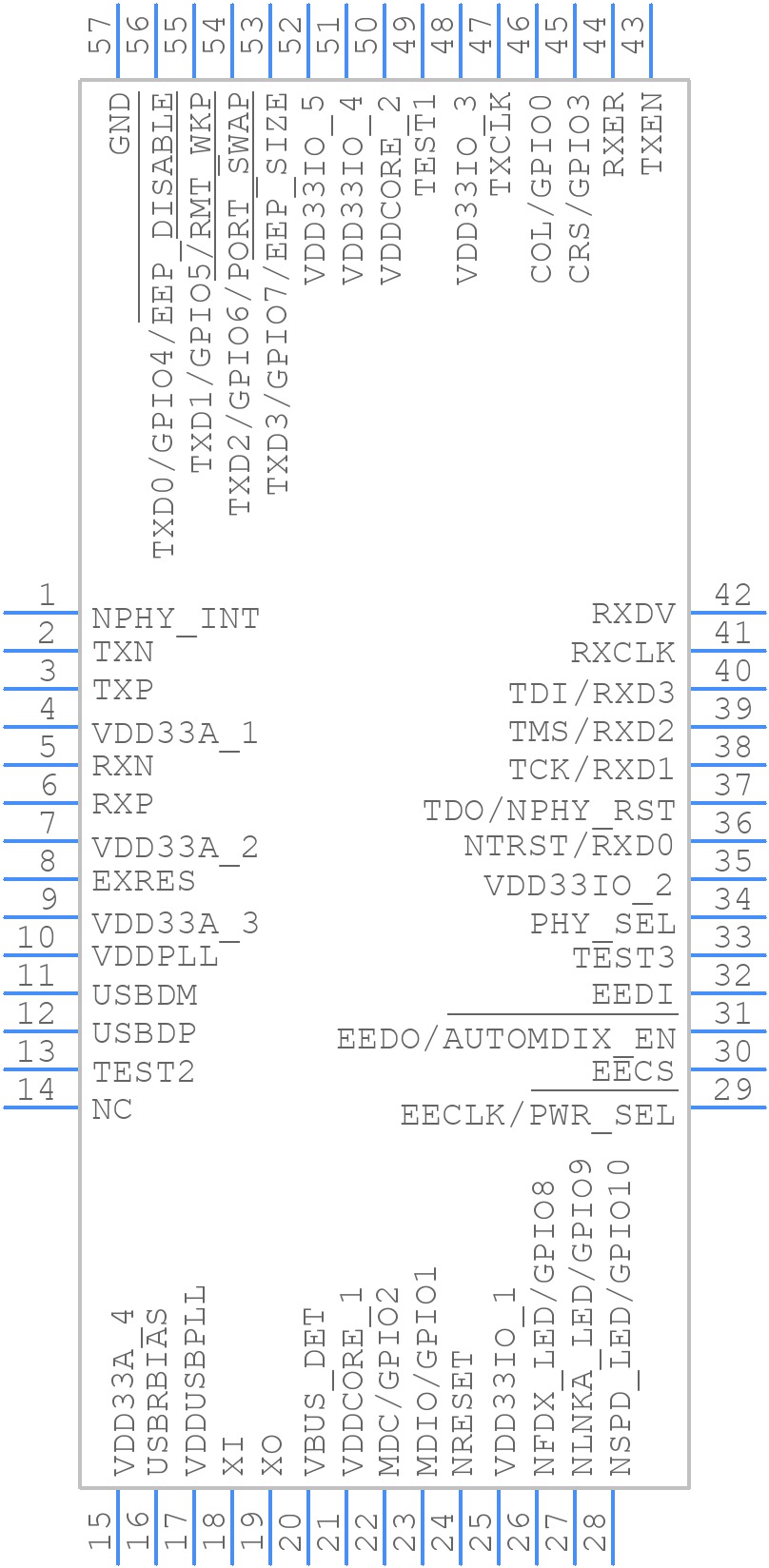

Part Symbol
-

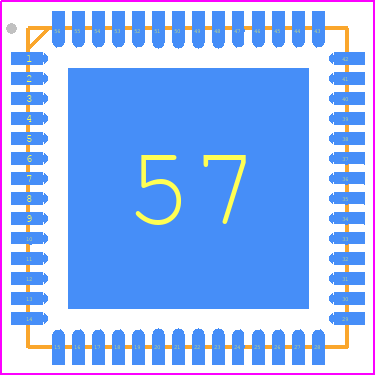

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LAN9500A-ABZJ-TR Part Data Attributes
|
|
LAN9500A-ABZJ-TR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
LAN9500A-ABZJ-TR
Microchip Technology Inc
Hi-Speed USB 2.0 to 10/100 Ethernet Controller
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | QFN | |
| Package Description | HVQCCN, LCC56,.31SQ,20 | |
| Pin Count | 56 | |
| Manufacturer Package Code | VQFN-56 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Boundary Scan | YES | |
| Bus Compatibility | USB | |
| Clock Frequency-Max | 25 MHz | |
| Communication Protocol | SYNC; BIT ;BYTE | |
| Data Encoding/Decoding Method | NRZI; BIPH-LEVEL(MANCHESTER) | |
| Data Transfer Rate-Max | 60 MBps | |
| JESD-30 Code | S-XQCC-N56 | |
| JESD-609 Code | e3 | |
| Length | 8 mm | |
| Low Power Mode | YES | |
| Number of Serial I/Os | 4 | |
| Number of Terminals | 56 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC56,.31SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 8 mm | |
| uPs/uCs/Peripheral ICs Type | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL |
Alternate Parts for LAN9500A-ABZJ-TR
This table gives cross-reference parts and alternative options found for LAN9500A-ABZJ-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LAN9500A-ABZJ-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LAN9500-ABZJ | Microchip Technology Inc | Check for Price | Hi-Speed USB 2.0 to 10/100 Ethernet Controller | LAN9500A-ABZJ-TR vs LAN9500-ABZJ |
| LAN9500I-ABZJ | Microchip Technology Inc | Check for Price | Hi-Speed USB 2.0 to 10/100 Ethernet Controller | LAN9500A-ABZJ-TR vs LAN9500I-ABZJ |
LAN9500A-ABZJ-TR Frequently Asked Questions (FAQ)
-
Microchip provides a recommended PCB layout guide in the LAN9500A datasheet, but it's also recommended to follow the IEEE 802.3 standard for Ethernet PCB layout guidelines.
-
The LAN9500A-ABZJ-TR can be configured for half-duplex or full-duplex mode through the PHY register settings. Refer to the LAN9500A datasheet for specific register settings and configuration details.
-
The LAN9500A-ABZJ-TR supports cable lengths up to 100 meters, as per the IEEE 802.3 standard for Ethernet.
-
Microchip provides a troubleshooting guide in the LAN9500A datasheet, which covers common issues and their solutions. Additionally, engineers can use tools like packet sniffers and network analyzers to debug issues.
-
The LAN9500A-ABZJ-TR is rated for industrial temperature ranges (-40°C to 85°C), making it suitable for use in industrial applications.
