LCDA15C-8.TBT Information
LCDA15C-8.TBT by Semtech Corporation is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for LCDA15C-8.TBT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
37K7830
|
Newark | Transient Voltage Suppressor, Tvs, Lcda Series, 12 V, Soic, 16, 13.3 V Rohs Compliant: Yes |Semtech LCDA15C-8.TBT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 664 |
|
$3.9900 / $4.7100 | Buy Now |
|
DISTI #
LCDA15C-8.TBT
|
Avnet Americas | ESD Protection Device, 33 V, SOIC, 16 Pins, 15 V, 15 pF, LCDAxxC-8 - Tape and Reel (Alt: LCDA15C-8.TBT) COO: Philippines (the) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$3.2375 / $3.7000 | Buy Now |
|
|
Bristol Electronics | 451 |
|
RFQ | ||
|
|
Rochester Electronics | TVS Diode Zener Bi-Directional 15V (Max) 33V 16-SOIC T/R RoHS: Compliant Status: Active Min Qty: 1 | 4667 |
|
$2.7300 / $3.4100 | Buy Now |
|
DISTI #
LCDA15C-8.TBT
|
Avnet Silica | ESD Protection Device 33 V SOIC 16 Pins 15 V 15 pF LCDAxxC8 (Alt: LCDA15C-8.TBT) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 15 Weeks, 0 Days | Silica - 500 |
|
Buy Now | |
|
|
Chip Stock | LCDASeries33V8pFBi-DirectionalSMTLowCapacitanceTVSDiodeArraySOIC-16 | 3869 |
|
RFQ | |
|
|
New Advantage Corporation | LCDA Series 33 V 8 pF Bi-Directional SMT Low Capacitance TVS Diode Array SOIC-16 RoHS: Compliant Min Qty: 1 Package Multiple: 500 | 1000 |
|
$5.2800 / $5.7200 | Buy Now |
|
|
Win Source Electronics | TVS DIODE 15VWM 33VC | 2369 |
|
$4.0577 / $6.0865 | Buy Now |
US Tariff Estimator: LCDA15C-8.TBT by Semtech Corporation
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LCDA15C-8.TBT
LCDA15C-8.TBT CAD Models
-

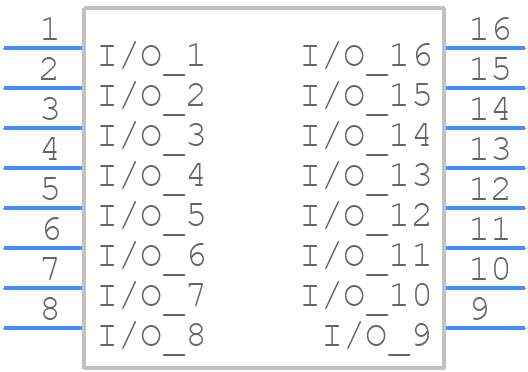

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LCDA15C-8.TBT Part Data Attributes
|
|
LCDA15C-8.TBT
Semtech Corporation
Buy Now
Datasheet
|
Compare Parts:
LCDA15C-8.TBT
Semtech Corporation
Trans Voltage Suppressor Diode, 500W, 15V V(RWM), Unidirectional, 16 Element, Silicon, MS-012AC, LEAD FREE, SOP-16
|
