LF347M/NOPB Information
LF347M/NOPB by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LF347M/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LF347M/NOPB
|
TME | IC: operational amplifier, 4MHz, 3.5÷18V, Ch: 4, SO14 Min Qty: 1 | 469 |
|
$1.6500 / $2.6600 | Buy Now |
|
|
Ameya Holding Limited | IC: operational amplifier, 4MHz, 3.5÷18V, Channels: 4, SO14 | 170 |
|
RFQ | |
|
|
Chip Stock | Quad,36-V,4-MHz,highslewrate(13-V/µs),IntoV+,JFET-inputopamp14-SOIC0to70 | 18830 |
|
RFQ | |
|
|
Win Source Electronics | LF147/LF347 Wide Bandwidth Quad JFET Input Operational Amplifiers | 15330 |
|
$1.5641 / $2.3460 | Buy Now |
US Tariff Estimator: LF347M/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LF347M/NOPB
LF347M/NOPB CAD Models
-

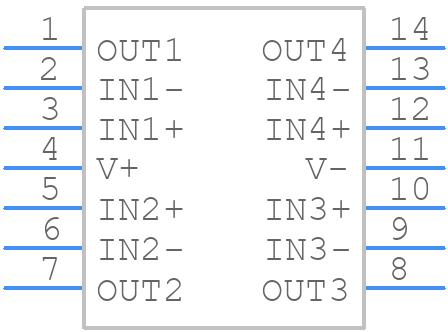

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LF347M/NOPB Part Data Attributes
|
|
LF347M/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LF347M/NOPB
Texas Instruments
Quad, 36-V, 4-MHz, high slew rate (13-V/µs), In to V+, JFET-input op amp 14-SOIC 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Soic-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.008 µA | |
| Bias Current-Max (IIB) @25C | 0.0002 µA | |
| Common-mode Reject Ratio-Min | 70 Db | |
| Common-mode Reject Ratio-Nom | 100 Db | |
| Frequency Compensation | Yes | |
| Input Offset Current-Max (IIO) | 0.004 µA | |
| Input Offset Voltage-Max | 5000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 8.65 Mm | |
| Low-Bias | Yes | |
| Low-Offset | No | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Slew Rate-Min | 8 V/Us | |
| Slew Rate-Nom | 13 V/Us | |
| Supply Current-Max | 11 Ma | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 4000 | |
| Voltage Gain-Min | 15000 | |
| Wideband | No | |
| Width | 3.91 Mm |
Alternate Parts for LF347M/NOPB
This table gives cross-reference parts and alternative options found for LF347M/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LF347M/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LF347M/NOPB | National Semiconductor Corporation | Check for Price | IC QUAD OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDSO14, LEAD FREE, PLASTIC, SOP-14, Operational Amplifier | LF347M/NOPB vs LF347M/NOPB |
| LF347M | National Semiconductor Corporation | Check for Price | IC QUAD OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDSO14, PLASTIC, SOP-14, Operational Amplifier | LF347M/NOPB vs LF347M |
| LF347MX/NOPB | National Semiconductor Corporation | Check for Price | IC QUAD OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDSO14, LEAD FREE, SOIC-14, Operational Amplifier | LF347M/NOPB vs LF347MX/NOPB |
| LF347MX | Texas Instruments | Check for Price | Quad, 36-V, 4-MHz, high slew rate (13-V/µs), In to V+, JFET-input op amp 14-SOIC 0 to 70 | LF347M/NOPB vs LF347MX |
| LF347MX/NOPB | Texas Instruments | Check for Price | Quad, 36-V, 4-MHz, high slew rate (13-V/µs), In to V+, JFET-input op amp 14-SOIC 0 to 70 | LF347M/NOPB vs LF347MX/NOPB |
LF347M/NOPB Frequently Asked Questions (FAQ)
-
The maximum power supply voltage for the LF347M is ±18V.
-
Yes, the LF347M has a high unity-gain bandwidth of 4MHz, making it suitable for high-frequency applications.
-
Yes, the LF347M can be used in single-supply applications, but the input common-mode voltage range is limited to VCC-2V to VCC+2V.
-
The input impedance of the LF347M is typically 1MΩ, but it can vary depending on the specific application and operating conditions.
-
No, the LF347M is not radiation-hardened. It is a commercial-grade op-amp and is not designed for use in high-radiation environments.
