Part Details for LM224PT by STMicroelectronics
Results Overview of LM224PT by STMicroelectronics
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LM224PT Information
LM224PT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM224PT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
24AC4901
|
Newark | Op-Amp Quad, 1.3Mhz, 0.4V/Us, Tssop-14, No. Of Channels:4Channels, Gain Bandwidth Product:1.3Mhz, Supply Voltage Range:3V To 30V, ±1.5V To ±15V, Ic Case/Package:Tssop, No. Of Pins:14Pins, Amplifier Type:General Purpose, Msl:- Rohs Compliant: Yes |Stmicroelectronics LM224PT RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 10894 |
|
$0.1670 / $0.3700 | Buy Now |
|
DISTI #
01AM0058
|
Newark | Op-Amp, 1.3Mhz, 105Deg C, Tssop-14 Rohs Compliant: Yes |Stmicroelectronics LM224PT RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.1350 | Buy Now |
|
DISTI #
LM224PT
|
Avnet Americas | OP Amp Quad GP ?15V/30V 14-Pin TSSOP T/R - Tape and Reel (Alt: LM224PT) COO: Singapore RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days Container: Reel | 5000 |
|
$0.1215 | Buy Now |
|
|
STMicroelectronics | Low power quad op-amps with low input bias current COO: Singapore RoHS: Compliant Min Qty: 1 | 115856 |
|
$0.1700 / $0.3600 | Buy Now |
|
|
Bristol Electronics | 447 |
|
RFQ | ||
|
|
Rochester Electronics | Low power quad op-amps with low input bias current RoHS: Compliant Status: Active Min Qty: 1 | 2866 |
|
$0.1180 / $0.1903 | Buy Now |
|
DISTI #
LM224PT
|
TME | IC: operational amplifier, 1.3MHz, Ch: 4, TSSOP14, reel,tape Min Qty: 1 | 4858 |
|
$0.1430 / $0.3500 | Buy Now |
|
|
ComSIT USA | LOW POWER QUAD OPERATIONAL AMPLIFIER Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDSO14 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
SMC-LM224PT
|
Sensible Micro Corporation | Op Amp Quad Gp ±15V/30V 14-Pin Tssop T/R - Tape And Reel Lm224Pt) RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 2020+ Container: Tape & Reel | 0 |
|
RFQ | |
|
DISTI #
LM224PT
|
Avnet Silica | OP Amp Quad GP 15V30V 14Pin TSSOP TR (Alt: LM224PT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
US Tariff Estimator: LM224PT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM224PT
LM224PT CAD Models
-

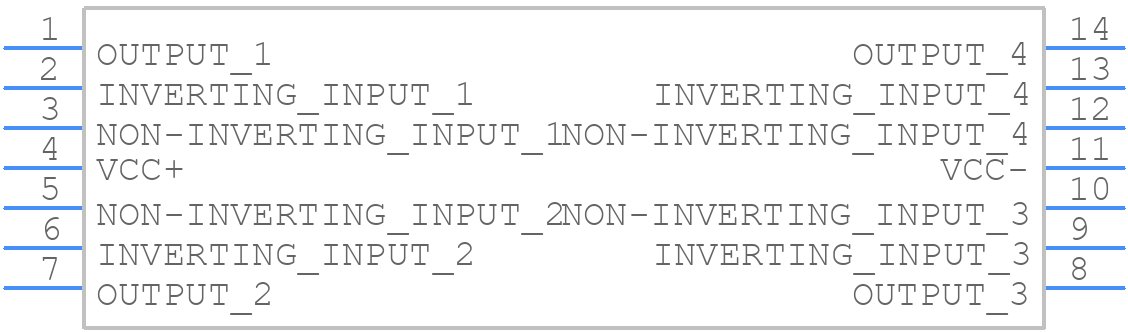

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM224PT Part Data Attributes
|
|
LM224PT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LM224PT
STMicroelectronics
Low power quad op-amps with low input bias current
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Package Description | Tssop-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.3 µA | |
| Bias Current-Max (IIB) @25C | 0.15 µA | |
| Common-mode Reject Ratio-Min | 70 Db | |
| Common-mode Reject Ratio-Nom | 80 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 7000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 Mm | |
| Low-Bias | No | |
| Low-Offset | No | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 14 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Slew Rate-Nom | 0.4 V/Us | |
| Supply Current-Max | 3 Ma | |
| Supply Voltage Limit-Max | 32 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1300 | |
| Voltage Gain-Min | 25000 | |
| Wideband | No | |
| Width | 4.4 Mm |
LM224PT Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the LM224PT is 500mW. However, it's essential to consider the thermal resistance of the package and the ambient temperature to ensure the device operates within its recommended operating conditions.
-
While the LM224PT is an op-amp, it's not recommended to use it as a comparator. The device is designed for linear applications, and its output stage is not optimized for switching applications. Using it as a comparator may lead to oscillations, instability, or incorrect output states.
-
To ensure stability, it's crucial to follow proper compensation techniques, such as adding a capacitor in the feedback loop or using a resistor in series with the feedback capacitor. Additionally, ensure the gain and phase margins are sufficient to prevent oscillations.
-
To minimize noise and ensure proper operation, it's recommended to follow good PCB layout practices, such as keeping the input and output traces separate, using a ground plane, and placing decoupling capacitors close to the device. Avoid routing sensitive signals near the device's power pins.
-
The LM224PT is rated for operation up to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C. Ensure proper thermal management and consider the device's thermal resistance when designing for high-temperature applications.
