Part Details for LM258NG by onsemi
Results Overview of LM258NG by onsemi
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (3 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Audio and Video Systems
LM258NG Information
LM258NG by onsemi is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM258NG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70339743
|
RS | SINGLE SUPPLY DUAL OP AMP, LM258NG Min Qty: 100 Package Multiple: 1 Container: Bulk | 0 |
|
$0.5700 | RFQ |
|
|
Vyrian | Amplifiers | 489 |
|
RFQ |
US Tariff Estimator: LM258NG by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM258NG
LM258NG CAD Models
-

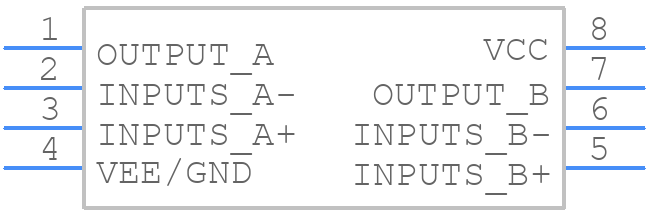

Part Symbol
-
Footprint
-

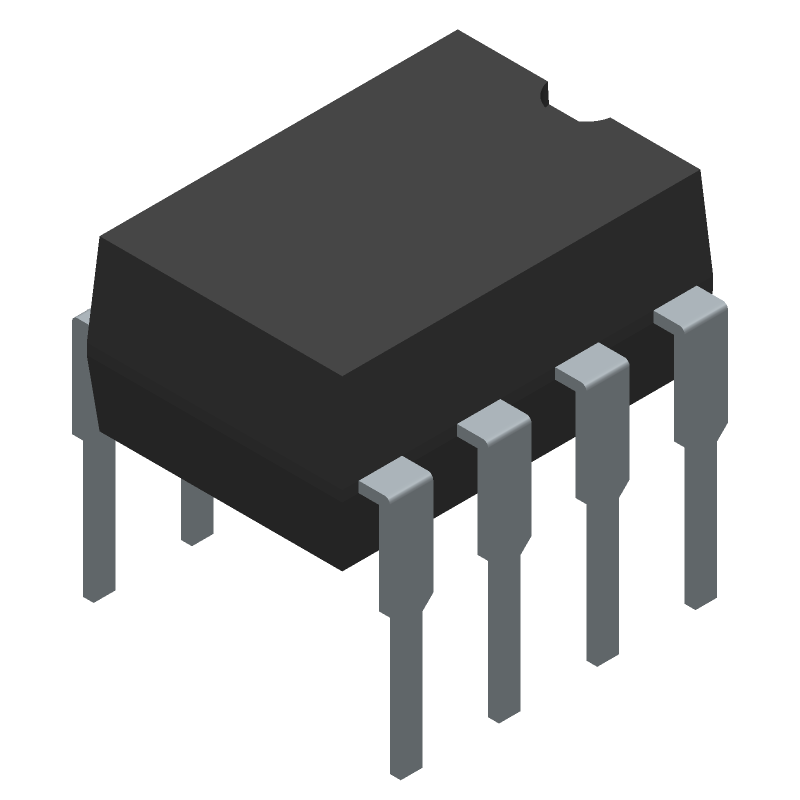

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM258NG Part Data Attributes
|
|
LM258NG
onsemi
Buy Now
Datasheet
|
Compare Parts:
LM258NG
onsemi
Operational Amplifier, Single Supply, Dual, 8 LEAD PDIP, 50-TUBE
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | 8 LEAD PDIP | |
| Package Description | Dip-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 626-05 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.3 µA | |
| Bias Current-Max (IIB) @25C | 0.15 µA | |
| Common-mode Reject Ratio-Min | 70 Db | |
| Common-mode Reject Ratio-Nom | 85 Db | |
| Frequency Compensation | No | |
| Input Offset Current-Max (IIO) | 0.03 µA | |
| Input Offset Voltage-Max | 5000 µV | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 9.27 Mm | |
| Low-Bias | No | |
| Low-Offset | No | |
| Micropower | No | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Packing Method | Rail | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.33 Mm | |
| Slew Rate-Nom | 0.6 V/Us | |
| Supply Current-Max | 3 Ma | |
| Supply Voltage Limit-Max | 32 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | No | |
| Technology | Bipolar | |
| Temperature Grade | Other | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Unity Gain BW-Nom | 1000 | |
| Voltage Gain-Min | 25000 | |
| Wideband | No | |
| Width | 7.62 Mm |
Alternate Parts for LM258NG
This table gives cross-reference parts and alternative options found for LM258NG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM258NG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM258DMR2G | onsemi | $0.1187 | Operational Amplifier, Single Supply, Dual, Micro 8 lead Surface Mount, 4000-REEL | LM258NG vs LM258DMR2G |
| LM258N | Fairchild Semiconductor Corporation | Check for Price | Dual Operational Amplifier, 8LD, MDIP, JEDEC MS-001, .300" WIDE, 3000/RAIL | LM258NG vs LM258N |
| LM258DMR2 | onsemi | Check for Price | Operational Amplifier, Single Supply, Dual, Micro 8 lead Surface Mount, 4000-REEL | LM258NG vs LM258DMR2 |
LM258NG Frequently Asked Questions (FAQ)
-
The LM258NG can operate from -40°C to 125°C, making it suitable for a wide range of applications.
-
Yes, the LM258NG is a voltage regulator that can provide a stable output voltage for microcontrollers and other digital circuits.
-
The output voltage of the LM258NG can be adjusted by selecting the correct resistor values for the feedback network. Refer to the datasheet for a detailed calculation formula.
-
The minimum input voltage required for the LM258NG to operate is 7.5V, but it's recommended to use a minimum of 8V to ensure stable operation.
-
The LM258NG is rated for a maximum output current of 3A, making it suitable for moderate-current applications. For high-current applications, consider using a more robust voltage regulator or a switching regulator.
