LM258P by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM258P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH1098
|
Newark | Op-Amp, 700Khz, 0.3V/Us, Dip-8, No. Of Amplifiers:2 Amplifier, Bandwidth:700Khz, Slew Rate:0.3V/Μs, Supply Voltage Range:3V To 32V, ± 1.5V To ± 16V, Amplifier Case Style:Dip, No. Of Pins:8Pins, Operating Temperature Min:-25°C, Rohs Compliant: Yes |Texas Instruments LM258P RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk | 346 |
|
$0.1930 / $0.3860 | Buy Now |
|
|
Bristol Electronics | 97 |
|
RFQ | ||
|
|
Bristol Electronics | 47 |
|
RFQ | ||
|
|
Rochester Electronics | LM258 Dual standard, industrial-grade, operational amplifier RoHS: Compliant Status: Active Min Qty: 1 | 18306 |
|
$0.1011 / $0.1631 | Buy Now |
|
DISTI #
LM258P
|
TME | IC: operational amplifier, 700kHz, Ch: 2, DIP8, ±1.5÷16VDC,3÷32VDC Min Qty: 1 | 2518 |
|
$0.1340 / $0.3100 | Buy Now |
|
|
ComSIT USA | AVAILABLE EU | 75000 |
|
RFQ | |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 2095 |
|
RFQ | |
|
|
Chip Stock | Dual,30-V,700-kHzoperationalamplifierwith-25°Cto85°Coperation8-PDIP-25to85 | 1025 |
|
RFQ | |
|
|
LCSC | 3mV 150nA 300V/ms 80dB 700kHz 2 DIP-8 Amplifiers RoHS | 345 |
|
$0.1307 / $0.2763 | Buy Now |
US Tariff Estimator: LM258P by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM258P
LM258P CAD Models
-

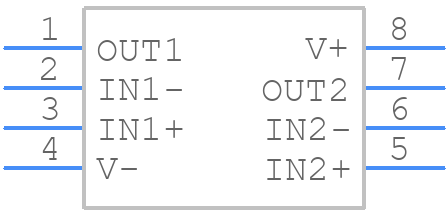

Part Symbol
-
