LM2902DR2G Information
LM2902DR2G by onsemi is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM2902DR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84K8727
|
Newark | Op Amp, 1Mhz, 0.6V/Us, Soic-14, No. Of Channels:4Channels, Gain Bandwidth Product:1Mhz, Supply Voltage Range:3V To 32V, Ic Case/Package:Soic, No. Of Pins:14Pins, Amplifier Type:Low Bias Current, Rail To Rail:-, Product Range:- Rohs Compliant: Yes |Onsemi LM2902DR2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 166 |
|
$0.1670 / $0.3340 | Buy Now |
|
DISTI #
50AC5315
|
Newark | Op-Amp, 1Mhz, 0.6V/Us, Soic-14, No. Of Amplifiers:4 Amplifier, Bandwidth:1Mhz, Slew Rate:0.6V/Μs, Supply Voltage Range:3V To 32V, Amplifier Case Style:Soic, No. Of Pins:14Pins, Operating Temperature Min:-40°C, Operating Temperature Rohs Compliant: Yes |Onsemi LM2902DR2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 68 |
|
$0.1660 / $0.3330 | Buy Now |
|
DISTI #
84K8727
|
Avnet Americas | Operational Amplifier, Single Supply, Quad ONSSPCAPLFRS, - Product that comes on tape, but is not reeled (Alt: 84K8727) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 181 Partner Stock |
|
$0.1670 / $0.2350 | Buy Now |
|
DISTI #
50AC5315
|
Avnet Americas | Operational Amplifier, Single Supply, Quad ONSSPCAPLFRS, - Product that comes on tape, but is not reeled (Alt: 50AC5315) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 68 Partner Stock |
|
$0.1670 / $0.2350 | Buy Now |
|
DISTI #
LM2902DR2G
|
Avnet Americas | Operational Amplifier, Single Supply, Quad ONSSPCAPLFRS, - Tape and Reel (Alt: LM2902DR2G) COO: China RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days Container: Reel | 180000 Factory Stock |
|
$0.0838 / $0.0918 | Buy Now |
|
|
Bristol Electronics | 250 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 9 | 200 |
|
$0.1730 / $0.5767 | Buy Now |
|
|
Bristol Electronics | Min Qty: 10 | 79 |
|
$0.2625 / $0.5250 | Buy Now |
|
|
Rochester Electronics | Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, PDSO14 RoHS: Compliant Status: Active Min Qty: 1 | 1550937 |
|
$0.0868 / $0.1400 | Buy Now |
|
DISTI #
LM2902DR2G
|
TME | IC: operational amplifier, 1MHz, Ch: 4, SO14, ±1.5÷16VDC,3÷32VDC Min Qty: 1 | 919 |
|
$0.1470 / $0.2800 | Buy Now |
US Tariff Estimator: LM2902DR2G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM2902DR2G
LM2902DR2G CAD Models
-

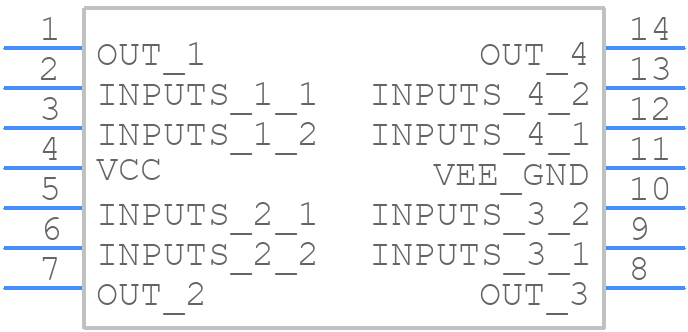

Part Symbol
-

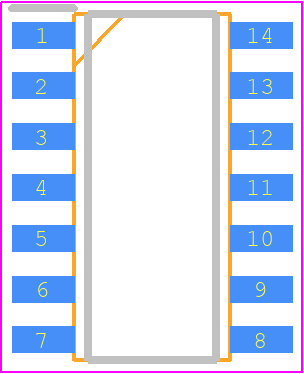

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM2902DR2G Part Data Attributes
|
|
LM2902DR2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
LM2902DR2G
onsemi
Operational Amplifier, Single Supply, Quad, SOIC-14 NB, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC-14 NB | |
| Pin Count | 14 | |
| Manufacturer Package Code | 751A-03 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.5 µA | |
| Bias Current-Max (IIB) @25C | 0.25 µA | |
| Common-mode Reject Ratio-Nom | 70 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 7000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 8.65 Mm | |
| Low-Offset | No | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -16 V | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tape And Reel | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Slew Rate-Nom | 0.6 V/Us | |
| Supply Current-Max | 3 Ma | |
| Supply Voltage Limit-Max | 16 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1000 | |
| Voltage Gain-Min | 15000 | |
| Width | 3.9 Mm |
Alternate Parts for LM2902DR2G
This table gives cross-reference parts and alternative options found for LM2902DR2G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM2902DR2G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| NCV2902DR2G | onsemi | $0.2412 | Operational Amplifier, Single Supply, Quad, SOIC-14 NB, 2500-REEL, Automotive Qualified | LM2902DR2G vs NCV2902DR2G |
| LM2902VDR2G | onsemi | Check for Price | Operational Amplifier, Single Supply, Quad, SOIC-14 NB, 2500-REEL | LM2902DR2G vs LM2902VDR2G |
| LM2902DG | onsemi | Check for Price | Operational Amplifier, Single Supply, Quad, SOIC-14 NB, 55-TUBE | LM2902DR2G vs LM2902DG |
| LM2902VD | onsemi | Check for Price | QUAD OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, SOIC-14 | LM2902DR2G vs LM2902VD |
| NCV2902DR2 | onsemi | Check for Price | Operational Amplifier, Single Supply, Quad, SOIC-14 NB, 2500-REEL, Automotive Qualified | LM2902DR2G vs NCV2902DR2 |
| LM2902D | Motorola Mobility LLC | Check for Price | QUAD OP-AMP, 10000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, PLASTIC, SO-14 | LM2902DR2G vs LM2902D |
| LM2902D | Motorola Semiconductor Products | Check for Price | Operational Amplifier, 4 Func, 10000uV Offset-Max, BIPolar, PDSO14, PLASTIC, SO-14 | LM2902DR2G vs LM2902D |
| LM2902D | onsemi | Check for Price | QUAD OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, SOIC-14 | LM2902DR2G vs LM2902D |
LM2902DR2G Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the LM2902DR2G is -40°C to 125°C.
-
Yes, the LM2902DR2G is qualified for automotive and industrial applications, making it suitable for high-reliability use cases.
-
To ensure the LM2902DR2G operates within its recommended operating conditions, follow the guidelines outlined in the datasheet, including voltage, current, and thermal management.
-
The typical quiescent current of the LM2902DR2G is 0.5 mA.
-
Yes, the LM2902DR2G is suitable for battery-powered devices due to its low quiescent current and low dropout voltage.
