LM2902YPT by: STMicroelectronics

Low power, bipolar op-amp

Part Details for LM2902YPT by STMicroelectronics

Results Overview of LM2902YPT by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LM2902YPT Information

LM2902YPT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for LM2902YPT

Part # Distributor Description Stock Price Buy
DISTI # 69AH0627
Newark Opamp, 1.3Mhz, -40 To 125Deg C Rohs Compliant: Yes |Stmicroelectronics LM2902YPT RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2419
  • 1 $0.7800
  • 10 $0.5670
  • 25 $0.4860
  • 50 $0.4020
  • 100 $0.3340
  • 250 $0.2810
  • 500 $0.2300
  • 1,000 $0.1940
$0.1940 / $0.7800 Buy Now
DISTI # LM2902YPT
Avnet Americas Operational Amplifier, 4 Channels, 1.3 MHz, 0.4 V/?s, 3V to 30V, ? 1.5V to ? 15V, TSSOP, 14 Pins - Tape and Reel (Alt: LM2902YPT) COO: Singapore RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.1978
  • 10,000 $0.1968
  • 20,000 $0.1958
  • 40,000 $0.1947
  • 80,000 $0.1937
$0.1937 / $0.1978 Buy Now
STMicroelectronics Low power, bipolar op-amp COO: Singapore RoHS: Compliant Min Qty: 1 2666
  • 1 $0.7400
  • 10 $0.5300
  • 25 $0.4700
  • 100 $0.4100
  • 250 $0.3600
  • 500 $0.3200
$0.3200 / $0.7400 Buy Now
Bristol Electronics   64848
RFQ
Bristol Electronics   Min Qty: 6 5000
  • 6 $0.9375
  • 23 $0.6094
  • 84 $0.3516
  • 286 $0.3000
  • 618 $0.2625
  • 1,468 $0.2438
$0.2438 / $0.9375 Buy Now
Rochester Electronics LM2902YPT - Amplifiers and Comparators-AMPLI RoHS: Compliant Status: Active Min Qty: 1 977500
  • 100 $0.3337
  • 500 $0.3003
  • 1,000 $0.2770
  • 10,000 $0.2469
  • 100,000 $0.2069
$0.2069 / $0.3337 Buy Now
DISTI # LM2902YPT
TME IC: operational amplifier, 1.3MHz, Ch: 4, TSSOP14, 3÷30VDC Min Qty: 1 1233
  • 1 $0.6900
  • 5 $0.5740
  • 10 $0.5170
  • 25 $0.4500
  • 100 $0.3710
  • 250 $0.3320
  • 500 $0.3090
  • 1,000 $0.2900
  • 2,500 $0.2700
  • 10,000 $0.2480
$0.2480 / $0.6900 Buy Now
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 150
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
Chip 1 Exchange INSTOCK 5000
RFQ
DISTI # LM2902YPT
Avnet Silica Operational Amplifier 4 Channels 13 MHz 04 Vs 3V to 30V 15V to 15V TSSOP 14 Pins (Alt: LM2902YPT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days Silica - 17500
Buy Now
DISTI # LM2902YPT
EBV Elektronik Operational Amplifier 4 Channels 13 MHz 04 Vs 3V to 30V 15V to 15V TSSOP 14 Pins (Alt: LM2902YPT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days EBV - 85000
Buy Now
LCSC 2mV 20nA 400V/ms 70dB 1.3MHz 4 Rail-to-Rail Input TSSOP-14 Amplifiers RoHS 3600
  • 50 $0.1236
  • 150 $0.1157
  • 500 $0.1058
  • 2,500 $0.1014
  • 5,000 $0.0987
  • 10,000 $0.0974
  • 20,000 $0.0966
$0.0966 / $0.1236 Buy Now

US Tariff Estimator: LM2902YPT by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

LM2902YPT
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for LM2902YPT

LM2902YPT CAD Models

  • Part Symbol

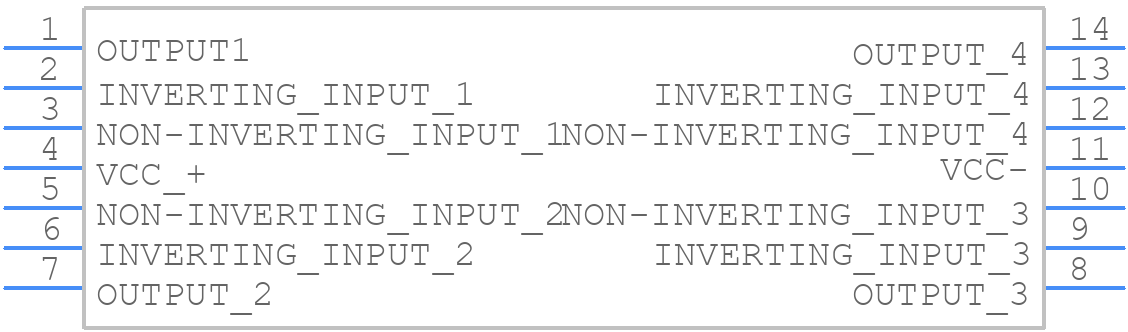

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LM2902YPT Part Data Attributes

Parametric Data
LM2902YPT STMicroelectronics
Buy Now Datasheet
Compare Parts:
LM2902YPT STMicroelectronics Low power, bipolar op-amp
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code TSSOP
Package Description Tssop-14
Pin Count 14
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 9 Weeks
Amplifier Type Operational Amplifier
Architecture Voltage-Feedback
Average Bias Current-Max (IIB) 0.3 µA
Bias Current-Max (IIB) @25C 0.15 µA
Common-mode Reject Ratio-Min 60 Db
Common-mode Reject Ratio-Nom 80 Db
Frequency Compensation Yes
Input Offset Current-Max (IIO) 0.04 µA
Input Offset Voltage-Max 9000 µV
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Length 5 Mm
Low-Bias No
Low-Offset No
Micropower No
Moisture Sensitivity Level 1
Number of Functions 14
Number of Terminals 4
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material Plastic/Epoxy
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape Rectangular
Package Style Small Outline, Thin Profile, Shrink Pitch
Packing Method Tr
Peak Reflow Temperature (Cel) 260
Power No
Programmable Power No
Qualification Status Not Qualified
Screening Level Aec-Q100
Seated Height-Max 1.2 Mm
Slew Rate-Nom 0.4 V/Us
Supply Current-Max 3 Ma
Supply Voltage Limit-Max 32 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount Yes
Technology Bipolar
Temperature Grade Automotive
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form Gull Wing
Terminal Pitch 0.65 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 1300
Voltage Gain-Min 25000
Wideband No
Width 4.4 Mm
