Part Details for LM2907N/NOPB by Texas Instruments
Results Overview of LM2907N/NOPB by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Environmental Monitoring
Audio and Video Systems
Aerospace and Defense
LM2907N/NOPB Information
LM2907N/NOPB by Texas Instruments is an Analog Special Function Converter.
Analog Special Function Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LM2907N/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LM2907N/NOPB
|
TME | IC: f/U converter, Ch: 1, 50mA, 6÷28VDC, DIP14, 0.3%, -40÷85°C Min Qty: 1 | 508 |
|
$1.5500 / $2.0400 | Buy Now |
|
|
LCSC | 10kHz F/V 28V DIP-14 V/F and F/V Converters RoHS | 100 |
|
$2.3518 / $3.8949 | Buy Now |
|
|
Win Source Electronics | IC F/V CONV 10KHZ 14DIP / Frequency to Voltage Converter IC 10 kHz ±0.3% 14-PDIP | 1058 |
|
$2.4945 / $3.7417 | Buy Now |
US Tariff Estimator: LM2907N/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM2907N/NOPB
LM2907N/NOPB CAD Models
-

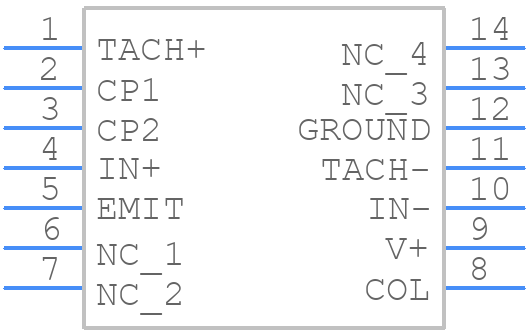

Part Symbol
-

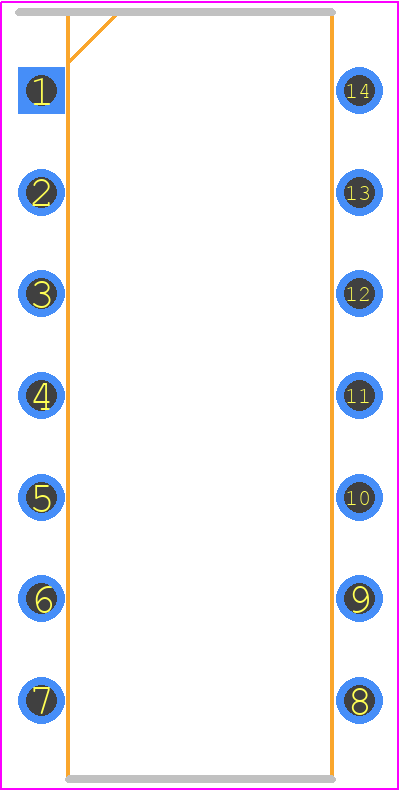

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM2907N/NOPB Part Data Attributes
|
|
LM2907N/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM2907N/NOPB
Texas Instruments
Frequency-to-voltage converter for ground or supply referred load up to 50 mA 14-PDIP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | DIP, DIP14,.3 | |
| Pin Count | 14 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Samacsys Manufacturer | Texas Instruments | |
| Converter Type | VOLTAGE TO FREQUENCY CONVERTER | |
| JESD-30 Code | R-PDIP-T14 | |
| JESD-609 Code | e4 | |
| Length | 19.305 mm | |
| Linearity Error-Max (EL) | 1% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Positive Input Voltage-Max | 28 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Current-Max | 6 mA | |
| Supply Voltage-Max | 28 V | |
| Supply Voltage-Min | ||
| Supply Voltage-Nom | 12 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for LM2907N/NOPB
This table gives cross-reference parts and alternative options found for LM2907N/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM2907N/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM2907NEP | National Semiconductor Corporation | Check for Price | IC VOLTAGE-FREQUENCY CONVERTER, PDIP14, PLASTIC, DIP-14, Analog Special Function Converter | LM2907N/NOPB vs LM2907NEP |
| LM2907NEP | Texas Instruments | Check for Price | VOLTAGE-FREQUENCY CONVERTER, PDIP14, PLASTIC, DIP-14 | LM2907N/NOPB vs LM2907NEP |
LM2907N/NOPB Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the LM2907N/NOPB is -40°C to 125°C.
-
Yes, the LM2907N/NOPB is designed to withstand high-vibration environments and is suitable for use in automotive and industrial applications.
-
To ensure proper biasing, connect the input voltage (VCC) to a stable voltage source, and decouple the input with a 0.1uF capacitor to ground. Also, ensure the output is properly loaded with a minimum of 1kΩ resistance.
-
To minimize noise and ensure optimal performance, use a multi-layer PCB with a solid ground plane, keep the input and output traces separate, and use a star-grounding configuration.
-
Yes, the LM2907N/NOPB is suitable for use in switching power supply applications, but ensure proper filtering and decoupling to minimize noise and ripple.
