LM2990T-12/NOPB Information
LM2990T-12/NOPB by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM2990T-12/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | Fixed Negative LDO Regulator, 12V, 1V Dropout, BIPolar, PSFM3 RoHS: Compliant Status: Active Min Qty: 1 | 10 |
|
$1.3300 / $1.6600 | Buy Now |
|
DISTI #
LM2990T-12/NOPB
|
TME | IC: voltage regulator, LDO,fixed, -12V, 1A, TO220-3, THT, tube, Ch: 1 Min Qty: 1 | 341 |
|
$1.9400 / $3.2800 | Buy Now |
|
|
LCSC | 52dB Negative Fixed 12V TO-220 Voltage Regulators - Linear Low Drop Out (LDO) Regulators RoHS | 21 |
|
$2.5461 / $2.6994 | Buy Now |
US Tariff Estimator: LM2990T-12/NOPB by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM2990T-12/NOPB
LM2990T-12/NOPB CAD Models
-
Part Symbol
-

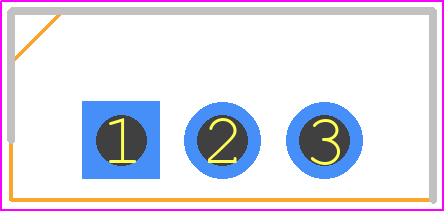

Footprint
-

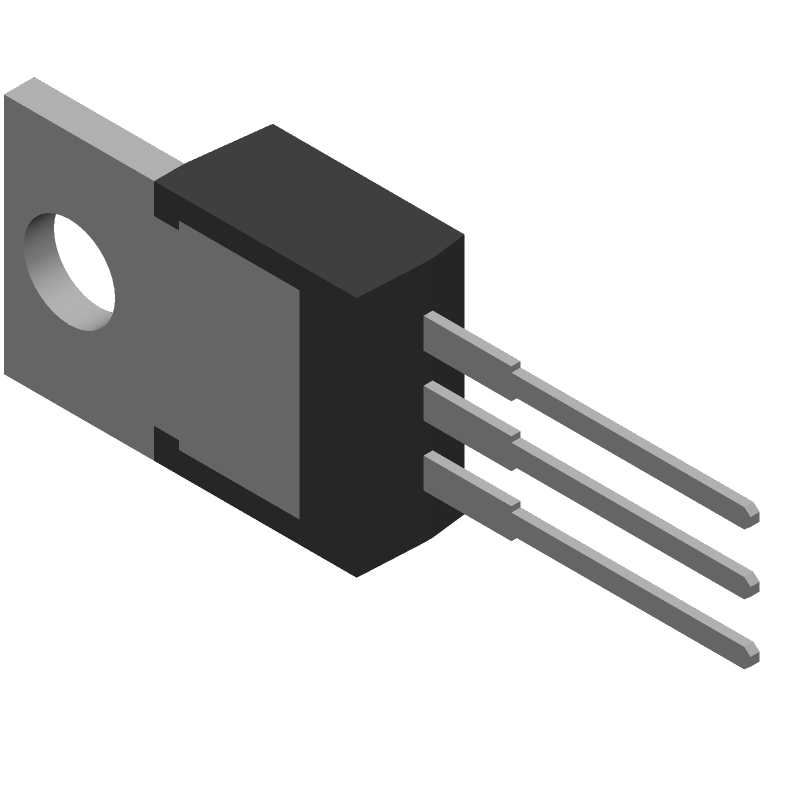

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM2990T-12/NOPB Part Data Attributes
|
|
LM2990T-12/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM2990T-12/NOPB
Texas Instruments
1-A, negative low-dropout voltage regulator 3-TO-220 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SFM | |
| Pin Count | 3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Adjustability | Fixed | |
| Dropout Voltage1-Max | 1 V | |
| Dropout Voltage1-Nom | 0.6 V | |
| Input Voltage Absolute-Max | 26 V | |
| Input Voltage-Max | 26 V | |
| Input Voltage-Min | 13 V | |
| JESD-30 Code | R-XSFM-T3 | |
| JESD-609 Code | e3 | |
| Length | 14.986 Mm | |
| Line Regulation-Max | 0.06% | |
| Load Regulation-Max | 0.05% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 12.6 V | |
| Output Voltage1-Min | 11.4 V | |
| Output Voltage1-Nom | 12 V | |
| Package Body Material | Unspecified | |
| Package Code | SFM | |
| Package Equivalence Code | SIP3,.1TB | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| Packing Method | Tube | |
| Qualification Status | Not Qualified | |
| Regulator Type | Fixed Negative Single Output Ldo Regulator | |
| Seated Height-Max | 19.55 Mm | |
| Surface Mount | No | |
| Technology | Bipolar | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Single | |
| Voltage Tolerance-Max | 5% | |
| Width | 10.16 Mm |
