LM317MDT-TR Information
LM317MDT-TR by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM317MDTX/NOPB | Texas Instruments | 1.5-A adjustable output linear regulator 3-TO-252 0 to 125 | |
| LM317MDT/NOPB | Texas Instruments | 1.5-A adjustable output linear regulator 3-TO-252 0 to 125 |
Price & Stock for LM317MDT-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38AH8599
|
Newark | Power Management Rohs Compliant: Yes |Stmicroelectronics LM317MDT-TR RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 195000 |
|
$0.2170 / $0.2200 | Buy Now |
|
DISTI #
99AC4017
|
Newark | V Reg, 0.5A, 1.2V To 37V, 3Dpak, Fixed Output Voltage Nom-, Adjustable Output Voltage Min-1.2V, Adjustable Output Voltage Max-37V, Input Voltage Min-4.2V, Input Voltage Max-40V, Product Range-, Output Current-500Ma, Output Rohs Compliant: Yes |Stmicroelectronics LM317MDT-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 24243 |
|
$0.1180 | Buy Now |
|
DISTI #
45Y5410
|
Newark | Ic, Linear Volt Reg, Adj, 37V, To-220-3, Fixed Output Voltage Nom.:-, Adjustable Output Voltage Min:1.2V, Adjustable Output Voltage Max:37V, Input Voltage Min:4.2V, Input Voltage Max:40V, Product Range:-, Output Current:1A, Output Rohs Compliant: Yes |Stmicroelectronics LM317MDT-TR RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.2200 | Buy Now |
|
DISTI #
LM317MDT-TR
|
Avnet Americas | Linear Voltage Regulator, Adjustable, Positive, 3 V to 40 V, 1.2 V to 37 V, 200 mA, 3 Pins, TO-252 (DPAK) - Tape and Reel (Alt: LM317MDT-TR) COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 195000 |
|
$0.1488 / $0.1582 | Buy Now |
|
DISTI #
LM317MDT-TR
|
Avnet Americas | Linear Voltage Regulator, Adjustable, Positive, 3 V to 40 V, 1.2 V to 37 V, 200 mA, 3 Pins, TO-252 (DPAK) - Tape and Reel (Alt: LM317MDT-TR) COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 2500 |
|
RFQ | |
|
DISTI #
99AC4017
|
Avnet Americas | Linear Voltage Regulator, Adjustable, Positive, 3 V to 40 V, 1.2 V to 37 V, 200 mA, 3 Pins, TO-252 (DPAK) - Product that comes on tape, but is not reeled (Alt: 99AC4017) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 1396 Partner Stock |
|
$0.2880 / $0.4950 | Buy Now |
|
DISTI #
LM317MDT-TR
|
Avnet Americas | Linear Voltage Regulator, Adjustable, Positive, 3 V to 40 V, 1.2 V to 37 V, 200 mA, 3 Pins, TO-252 (DPAK) - Tape and Reel (Alt: LM317MDT-TR) COO: China RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
|
STMicroelectronics | Medium current 1.2 to 37 V adjustable voltage regulator COO: Singapore RoHS: Compliant Min Qty: 1 | 22309 |
|
$0.2200 / $0.4400 | Buy Now |
|
|
Bristol Electronics | 2500 |
|
RFQ | ||
|
|
Bristol Electronics | 131 |
|
RFQ |
US Tariff Estimator: LM317MDT-TR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM317MDT-TR
LM317MDT-TR CAD Models
-

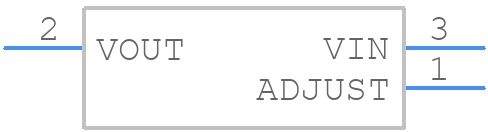

Part Symbol
-

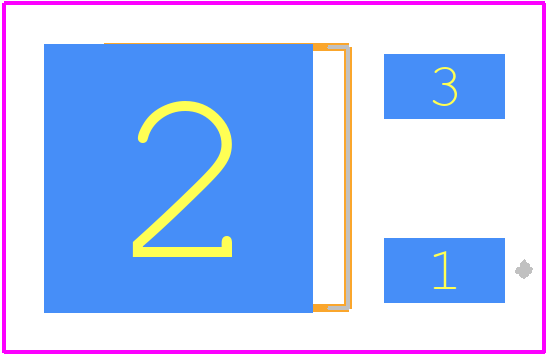

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM317MDT-TR Part Data Attributes
|
|
LM317MDT-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
LM317MDT-TR
STMicroelectronics
Medium current 1.2 to 37 V adjustable voltage regulator
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-252 | |
| Pin Count | 3 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Adjustability | ADJUSTABLE | |
| Dropout Voltage1-Nom | 3 V | |
| Input-Output Voltage Differential-Max | 40 V | |
| Input-Output Voltage Differential-Min | 3 V | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Line Regulation-Max (%/V) | 0.07 | |
| Load Regulation-Max(%) | 5.8% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 0.5 A | |
| Output Voltage1-Max | 37 V | |
| Output Voltage1-Min | 1.2 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-252 | |
| Package Equivalence Code | SMSIP3H,.38,90TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Seated Height-Max | 2.63 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.25 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.1 mm |
Alternate Parts for LM317MDT-TR
This table gives cross-reference parts and alternative options found for LM317MDT-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM317MDT-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM217MDT-TR | STMicroelectronics | $0.5990 | Medium current 1.2 to 37 V adjustable voltage regulator | LM317MDT-TR vs LM217MDT-TR |
| LM317MDT-E | STMicroelectronics | Check for Price | 1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, PSSO2, LEAD FREE, DPAK-2 | LM317MDT-TR vs LM317MDT-E |
| LM217MDT | STMicroelectronics | Check for Price | Medium current 1.2 to 37 V adjustable voltage regulator | LM317MDT-TR vs LM217MDT |
| LM317MDT | STMicroelectronics | Check for Price | Medium current 1.2 to 37 V adjustable voltage regulator | LM317MDT-TR vs LM317MDT |
LM317MDT-TR Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the LM317MDT-TR is 40V. Exceeding this voltage can cause damage to the device.
-
To ensure stability and prevent oscillations, a minimum output capacitance of 1uF is recommended, and the input capacitor should be at least 10uF. Additionally, the output voltage should be decoupled with a capacitor of at least 10uF.
-
The minimum load current required for the LM317MDT-TR to regulate properly is 3.5mA. If the load current is less than this, the output voltage may not be regulated accurately.
-
No, the LM317MDT-TR is designed to regulate positive voltages only. If you need to regulate a negative voltage, you should use a negative voltage regulator such as the LM337.
-
The output voltage of the LM317MDT-TR can be adjusted by using a resistive divider network between the output and the adjust pin. The output voltage is determined by the ratio of the resistors and the reference voltage (1.25V).
