LM324DTBR2 Information
LM324DTBR2 by onsemi is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM324DTBR2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | OperationalAmplifier,4Func,7000uVOffset-Max,BIPolar,PDSO14 | 7750 |
|
RFQ | |
|
|
Vyrian | Amplifiers | 303 |
|
RFQ |
US Tariff Estimator: LM324DTBR2 by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM324DTBR2
LM324DTBR2 CAD Models
-

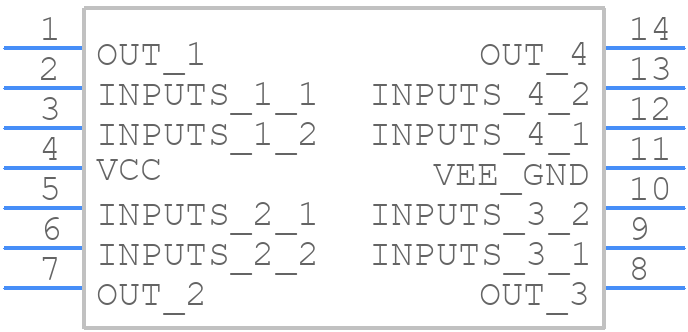

Part Symbol
-

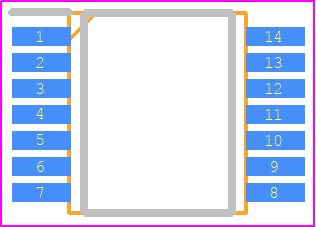

Footprint
-
