LM336M-2.5/NOPB by:
Texas Instruments

Voltage reference diode 8-SOIC 0 to 70

Part Details for LM336M-2.5/NOPB by Texas Instruments

Results Overview of LM336M-2.5/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy Automotive

LM336M-2.5/NOPB Information

LM336M-2.5/NOPB by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LM336M-2.5/NOPB

Part # Distributor Description Stock Price Buy
DISTI # 29AH6299
Newark Voltage Ref, Shunt, 2.49V, Soic-8, Volta, Msl:Msl 1 - Unlimited, Svhc:No Svhc (15-Jan-2019) Rohs Compliant: Yes |Texas Instruments LM336M-2.5/NOPB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $1.2500
  • 10 $1.1500
  • 190 $1.0500
  • 570 $0.9970
  • 1,045 $0.9450
  • 2,565 $0.8920
  • 5,035 $0.8760
$0.8760 / $1.2500 Buy Now
DISTI # LM336M-2.5/NOPB
TME IC: voltage reference source, 2.49V, ±2%, SO8, tube, 12mA, 95pcs. Min Qty: 1 315
  • 1 $0.8400
  • 5 $0.7700
  • 10 $0.7500
$0.7500 / $0.8400 Buy Now
DISTI # LM336M-2.5/NOPB
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk 583
  • 1 $0.4370
  • 10 $0.3940
  • 50 $0.3580
  • 100 $0.3450
$0.3450 / $0.4370 Buy Now
Chip Stock VoltageRef,Shunt,2.49V,SOIC-8, Volta, Msl:Msl1-Illimité, Svhc:NoSvhc(15-JAN-2019) 9190
RFQ
Win Source Electronics IC VREF SHUNT 2.49V 8SOIC 7690
  • 115 $0.4363
  • 280 $0.3580
  • 435 $0.3469
  • 600 $0.3357
  • 775 $0.3245
  • 1,035 $0.2909
$0.2909 / $0.4363 Buy Now

US Tariff Estimator: LM336M-2.5/NOPB by Texas Instruments

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

LM336M-2.5/NOPB
Texas Instruments
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for LM336M-2.5/NOPB

LM336M-2.5/NOPB CAD Models

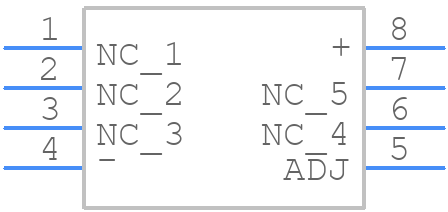

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LM336M-2.5/NOPB Part Data Attributes

Parametric Data
LM336M-2.5/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
LM336M-2.5/NOPB Texas Instruments Voltage reference diode 8-SOIC 0 to 70
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code SOIC
Package Description Sop, Sop8,.25
Pin Count 8
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.60
Analog IC - Other Type Two Terminal Voltage Reference
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 Mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature-Max 70 °C
Operating Temperature-Min
Output Voltage-Max 2.59 V
Output Voltage-Min 2.39 V
Output Voltage-Nom 2.5 V
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape Rectangular
Package Style Small Outline
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 Mm
Surface Mount Yes
Technology Bipolar
Temp Coef of Voltage-Max 20 Ppm/°C
Temperature Grade Commercial
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Trim/Adjustable Output Yes
Voltage Tolerance-Max 4%
Width 3.9 Mm

Alternate Parts for LM336M-2.5/NOPB

This table gives cross-reference parts and alternative options found for LM336M-2.5/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM336M-2.5/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LM336MX-2.5/NOPB National Semiconductor Corporation Check for Price IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.49 V, PDSO8, SOIC-8, Voltage Reference LM336M-2.5/NOPB vs LM336MX-2.5/NOPB
LM336MX-2.5/NOPB Texas Instruments Check for Price Voltage reference diode 8-SOIC 0 to 70 LM336M-2.5/NOPB vs LM336MX-2.5/NOPB
LM336BDR-2.5 Texas Instruments Check for Price 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.49V, PDSO8, GREEN, PLASTIC, SOIC-8 LM336M-2.5/NOPB vs LM336BDR-2.5
LM336MX-2.5 Texas Instruments Check for Price Voltage reference diode 8-SOIC 0 to 70 LM336M-2.5/NOPB vs LM336MX-2.5
LM336M-2.5 Texas Instruments Check for Price Voltage reference diode 8-SOIC 0 to 70 LM336M-2.5/NOPB vs LM336M-2.5
LM336BMX-2.5 National Semiconductor Corporation Check for Price IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.49 V, PDSO8, SOIC-8, Voltage Reference LM336M-2.5/NOPB vs LM336BMX-2.5
LM336M-2.5/NOPB National Semiconductor Corporation Check for Price IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.49 V, PDSO8, SOIC-8, Voltage Reference LM336M-2.5/NOPB vs LM336M-2.5/NOPB
Part Number Manufacturer Composite Price Description Compare
TL431AMFDT,215 Nexperia $0.2415 TL431 family - Adjustable precision shunt regulator@en-us TO-236 3-Pin LM336M-2.5/NOPB vs TL431AMFDT,215
LM431CIZ/NOPB Texas Instruments $0.3728 2%, 1%, or 0.5% accuracy, adjustable precision Zener shunt regulator 3-TO-92 -40 to 85 LM336M-2.5/NOPB vs LM431CIZ/NOPB
LT1009MH#PBF Linear Technology Check for Price IC TWO TERM VOLTAGE REFERENCE, MBCY3, LEAD FREE, METAL CAN, TO-46, 3 PIN, Voltage Reference LM336M-2.5/NOPB vs LT1009MH#PBF
LM431BCZ National Semiconductor Corporation Check for Price IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.495 V, PBCY3, PLASTIC, TO-92, 3 PIN, Voltage Reference LM336M-2.5/NOPB vs LM431BCZ
LM431BIZ/NOPB Texas Instruments Check for Price 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.495V, PBCY3, PLASTIC, TO-92, 3 PIN LM336M-2.5/NOPB vs LM431BIZ/NOPB
LM431ACZ NXP Semiconductors Check for Price IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.495 V, PBCY3, PLASTIC, SOT-54, TO-92, 3 PIN, Voltage Reference LM336M-2.5/NOPB vs LM431ACZ
LM431AIM3/NOPB National Semiconductor Corporation Check for Price IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.495 V, PDSO3, PLASTIC, SOT-23, 3 PIN, Voltage Reference LM336M-2.5/NOPB vs LM431AIM3/NOPB
AS431BR25S13 Artesyn Embedded Technologies Check for Price Two Terminal Voltage Reference, 1 Output, 2.503V, Trim/Adjustable, PSSO3, SOT-89, 3 PIN LM336M-2.5/NOPB vs AS431BR25S13
LM431CCM3 Texas Instruments Check for Price 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.5V, PDSO3, PLASTIC, SOT-23, 3 PIN LM336M-2.5/NOPB vs LM431CCM3
REF02DJ Precision Monolithics Inc Check for Price Three Terminal Voltage Reference, 5V, BIPolar, MBCY8, LM336M-2.5/NOPB vs REF02DJ
equivalents icon

LM336M-2.5/NOPB Related Parts

LM336M-2.5/NOPB Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the LM336M-2.5/NOPB is -40°C to 125°C.

  • Yes, the LM336M-2.5/NOPB is suitable for high-reliability applications due to its high accuracy, low noise, and low drift over temperature.

  • To ensure stability, use a 10uF or larger capacitor between the output pin and ground, and a 100nF or larger capacitor between the input pin and ground.

  • The typical current consumption of the LM336M-2.5/NOPB is around 1.5mA.

  • Yes, the LM336M-2.5/NOPB is suitable for battery-powered devices due to its low quiescent current and low dropout voltage.
