LM393BIDGKR Information
LM393BIDGKR by Texas Instruments is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LM393BIDGKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip 1 Exchange | INSTOCK | 6500 |
|
RFQ | |
|
|
New Advantage Corporation | DUAL COMMERCIAL GRADE STANDARD C RoHS: Compliant Min Qty: 1 Package Multiple: 100 | 3990 |
|
$0.2403 / $0.2603 | Buy Now |
US Tariff Estimator: LM393BIDGKR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LM393BIDGKR
LM393BIDGKR CAD Models
-

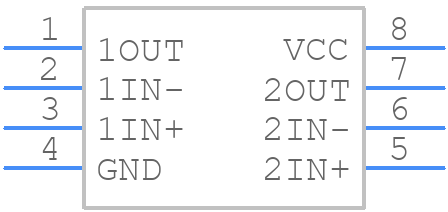

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LM393BIDGKR Part Data Attributes
|
|
LM393BIDGKR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM393BIDGKR
Texas Instruments
Dual commercial grade standard comparator 8-VSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 2020-08-15 | |
| Amplifier Type | Comparator | |
| Average Bias Current-Max (IIB) | 0.05 µA | |
| Bias Current-Max (IIB) @25C | 0.025 µA | |
| Input Offset Voltage-Max | 2500 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 3 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Type | Open-Collector; Open-Drain | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr, 13 Inch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Response Time-Nom | 1000 Ns | |
| Seated Height-Max | 1.1 Mm | |
| Supply Current-Max | 0.8 Ma | |
| Supply Voltage Limit-Max | 38 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
Alternate Parts for LM393BIDGKR
This table gives cross-reference parts and alternative options found for LM393BIDGKR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM393BIDGKR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM393BIDR | Texas Instruments | $0.0640 | Dual commercial grade standard comparator 8-SOIC -40 to 85 | LM393BIDGKR vs LM393BIDR |
| PLM393BIDGKR | Texas Instruments | Check for Price | Dual commercial grade standard comparator 8-VSSOP -40 to 85 | LM393BIDGKR vs PLM393BIDGKR |
| LM393BIDSGR | Texas Instruments | Check for Price | Dual commercial grade standard comparator 8-WSON -40 to 85 | LM393BIDGKR vs LM393BIDSGR |
| LM393BIDDFR | Texas Instruments | Check for Price | Dual commercial grade standard comparator 8-SOT-23-THIN -40 to 85 | LM393BIDGKR vs LM393BIDDFR |
| NJM2903CAV | New Japan Radio Co Ltd | Check for Price | Comparator, 2 Func, 2000uV Offset-Max, 1300ns Response Time, BIPolar, PDSO8, SSOP-8 | LM393BIDGKR vs NJM2903CAV |
| NJM2903CAV-TE1 | New Japan Radio Co Ltd | Check for Price | Comparator, | LM393BIDGKR vs NJM2903CAV-TE1 |
| PLM393BIDR | Texas Instruments | Check for Price | Dual commercial grade standard comparator 8-SOIC -40 to 85 | LM393BIDGKR vs PLM393BIDR |
| PLM393BIDDFR | Texas Instruments | Check for Price | Dual commercial grade standard comparator 8-SOT-23-THIN -40 to 85 | LM393BIDGKR vs PLM393BIDDFR |
LM393BIDGKR Frequently Asked Questions (FAQ)
-
The maximum voltage that can be applied to the input pins is the supply voltage (VCC) + 0.3V, which is typically 36V for the LM393BIDGKR.
-
To prevent oscillation, ensure that the input voltage difference is greater than the input offset voltage (typically 2mV), and add a small capacitor (e.g., 10nF) between the output and the negative supply rail to filter out high-frequency noise.
-
No, the LM393BIDGKR is a comparator, not an amplifier. It is designed to provide a digital output based on the comparison of the input voltages, not to amplify a signal.
-
The response time of the LM393BIDGKR is typically around 1.3μs, but this can vary depending on the input voltage difference and the output load.
-
Yes, the LM393BIDGKR can be used with a single supply voltage, but the input voltage range will be limited to 0V to VCC. For a single supply operation, ensure that the input voltage difference is within the common-mode input voltage range.
